Bridge And Trolley Crane
HD type single bridge and trolley crane is designed according to the European FEM standard, the main beam is a square box structure, and the ND type European wire rope electric hoist is used together, with light weight, small wheel pressure, small limit size, reliable performance, low noise, low energy consumption, easy operation and so on.
- Fast Delievery
- Quality Assurance
- 24/7 Customer Service
Product Introduction
1. Product Introduction:

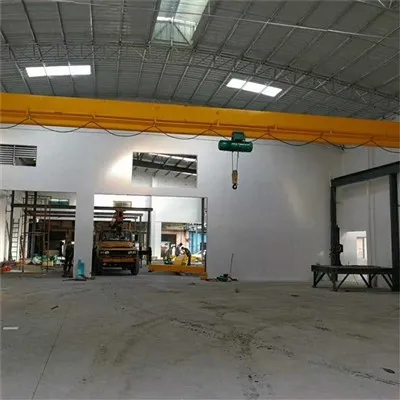

HD type single bridge and trolley crane
HD type single bridge and trolley crane is designed according to the European FEM standard, the main beam is a square box structure, and the ND type European wire rope electric hoist is used together, with light weight, small wheel pressure, small limit size, reliable performance, low noise, low energy consumption, easy operation and so on.
HD type single bridge and trolley crane adopts the method of lifting double speed, big car operation frequency control, which can meet the user's fine work, lifting weight from 2 tons to 20 tons, span from 7.5 meters to 25 meters, working level A5, suitable for ambient temperature of -20~40 degrees.
The operation mode of the HD type single bridge and trolley crane is handle operation, remote control operation or two ways exist at the same time to meet the requirements of different use occasions.
2. Parameters:
| Lifting Weight(t) |
Customized |
2 |
3 |
5 |
10 |
16 |
20 |
||||||||||||||||||
|
Span(m) |
Customized |
8 |
13 |
18 |
27 |
7.5 |
12 |
18 |
23 |
8 |
12 |
15 |
18 |
8 |
12 |
15 |
20 |
12 |
19 |
25 |
28 |
10 |
16 |
19 |
26 |
|
Working Speed |
Customized |
||||||||||||||||||||||||
|
Hoisting Height(m) |
6,9,12,18,24,30 or Customized |
||||||||||||||||||||||||
|
Working Class |
A5-A6 |
||||||||||||||||||||||||
|
Electric Current |
Three-phase AC 380V 50Hz or Customized |
||||||||||||||||||||||||
3. Component:
HD type single bridge and trolley crane is generally composed of bridge frame (also known as main girder), electric hoist, end beam, cart operating mechanism, electrical control system, trolley conductive device, crane main power conductive device (main slide line) and other parts.
The main beam mostly adopts the combined section of steel plate and steel plate.
The cart running mechanism consists of two motors, two reducers, and four traveling wheels (two active and two driven) installed on both sides of the end beam;
The hoisting mechanism (European Style Wire Rope Hoist) adopts new technology and components to ensure high performance and compact structure, expand the operating range, high utilization rate, and small blind area, which can greatly reduce the requirements for the height of the workshop.
In terms of safety, this crane is designed to meet the highest international standards. It is equipped with advanced safety features such as overload protection devices, anti-collision systems, and limit switches that make the crane safer to operate. Additionally, it is designed to minimize the risk of accidents, making it an excellent choice for industrial and manufacturing applications.
4. Applicable Environment:
HD type single bridge and trolley crane is an important tool and equipment for realizing mechanization and automation of the production process in modern industrial production and lifting transportation. Therefore, European Travelling Cranes are widely used in indoor and outdoor industrial and mining enterprises, steel and chemical industries, railway transportation, ports and terminals, logistics turnover and other departments and places.
