Wall Mounted Jib Crane

Lifting Capacity: 0.5-20 tons

Span: 7.5-28.5 m

Lifting Height: Can be Customized

Working Class: A3

Price: Contact us at any time

Fast Delievery
Quality Assurance
24/7 Customer Service

Product Introduction

A wall-mounted jib crane is a lifting equipment designed to be securely attached to a sturdy wall, column, or vertical structure, eliminating the need for a freestanding base. Its core structure includes a horizontal cantilever arm that rotates typically 180 degrees, though some models offer 360-degree rotation and a hoist mounted on the arm to lift and move loads. Unlike overhead cranes or gantry cranes, which require extensive floor or ceiling space, wall-mounted jib cranes leverage existing vertical structures, making them ideal for tight workspaces. They are engineered to handle loads ranging from light to heavy, depending on the model.

Wall-Mounted Jib Crane

0.5-ton Wall-Mounted Jib Crane

Specifications

Item	Wall-Mounted Jib Crane
Lifting Capacity	0.5-20 tons
Span	7.5-28.5 m
Lifting Height	Can be Customized
Rotation Angle	180° (standard) or 360°
Power Supply	380V 50HZ 3P
Working Class	A3
Protection Class	IP54
Insulation Class	F
Chain	G80 steel
Working temperature	-20℃~+45℃
Payment	TT/LC

Advantages

1. High space utilisation

As they are fixed to walls or columns, wall-mounted cantilever cranes do not occupy floor space. They are particularly suitable for scenarios where factory space is limited or unobstructed passageways are required. Their cantilevers can typically rotate through 180° or 360°, covering a larger working range and enabling efficient lifting operations.

2. Simple and Reliable Structure

The equipment primarily consists of columns, cantilevers, and lifting mechanisms, featuring a simple and reliable structure. Operators can control lifting, rotation, and movement via handles or remote controls, providing flexible operation and reducing labour intensity.

3. Flexible Load Capacity

The load-bearing capacity of wall-mounted cantilever cranes typically ranges from 0.5 to 5 tons and can be selected according to the weight of the materials being lifted. Some customised products can also withstand special working conditions, such as high temperatures and corrosion.

4. Low Installation and Maintenance Costs

Compared with large bridge cranes, wall-mounted cantilever cranes are easier to install and do not require complex foundation work. They are also relatively easy to maintain, reducing equipment investment, operation, and maintenance costs for enterprises.

5. Flexible and Safe Operation

Modern control systems incorporate various safety protection mechanisms, such as overload alarms and emergency stop buttons, to ensure operator safety. The lightweight equipment can be easily rotated and positioned.

Mounted Jib Crane With Hoist

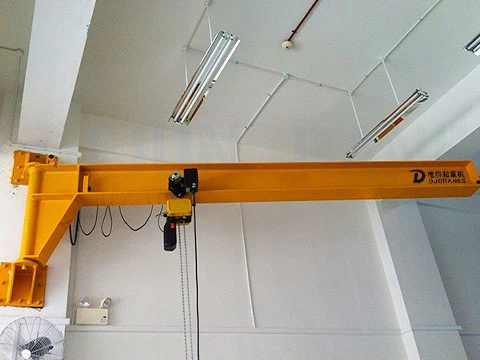

Wall-Mounted Cantilever Crane

What Is It Used For?

Industrial Manufacturing Field

Machining workshops: used for lifting tools or workpieces to improve processing efficiency and accuracy.
Automobile manufacturing: loading and unloading large components, such as engines and gearboxes, to shorten production cycles.
Electronic product manufacturing: precise lifting of circuit boards, displays, and other precision components.

Logistics And Warehousing

Warehouse logistics: completing material transfer and assembly positioning between workstations.
Logistics distribution centres: facilitating the flexible movement of goods between loading and unloading areas and shelves.

Other Application Scenarios

Port terminals: cargo handling.
Maintenance workshops: lifting components during equipment maintenance.

Indoor Wall-Mounted Jib Crane

Mounted Jib Crane Factory Uses

Wall Mounted Jib Crane For Sale

Wall-mounted cantilever cranes are particularly suitable for industrial environments with limited space and frequent lifting operations. This makes them an ideal choice for improving production efficiency and reducing labour intensity. Advanced wall-mounted jib crane for sale. Selecting the right manufacturer ensures quality, safety, and performance when ordering. A good manufacturer will tailor cranes to your specific load, space, and industry needs. Henan Dejun Industrial, with 40+ years in crane production, has refined designs and better quality control. Besides the jib cranes, we also produce overhead cranes, gantry cranes, electric hoists, etc. For any needs, please feel free to contact us!

Wall-Mounted Jib Crane For Sale

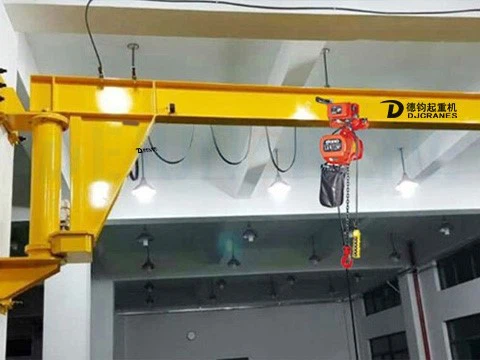

Mounted Jib Crane From Dejun Industrial

Finally Words

Wall-mounted jib cranes are indispensable for modern industries seeking efficient, space-saving lifting solutions. Their versatility, cost-effectiveness, and ease of integration make them a smart investment for workshops, factories, and warehouses alike. By understanding their features, applications, and how to choose the right model, you can enhance productivity while ensuring workplace safety. Whether you need to lift light components or heavy machinery, a well-selected wall-mounted jib crane will streamline your operations for years to come.

FAQs

Q1: Can a wall-mounted jib crane be installed on any wall?

A: No. The wall must be structurally reinforced, e.g., concrete or steel, to support the crane's weight and load. Manufacturers often require a structural assessment before installation.

Q2: What maintenance does a wall-mounted jib crane need?

A: Regular checks include lubricating moving parts, inspecting bolts for tightness, and testing hoist functionality. Annual professional inspections are recommended.

Q3: Is operator training required?

A: Yes. Operators should be trained to handle loads safely, understand weight limits, and recognize potential hazards-especially for electric or heavy-duty models.
