Wall Travelling Jib Crane

Lifting Capacity: 0.5 to 10 tons

Span: 3 to 10 meters

Lifting Height: 3 to 8 meters

Working Class: A3

Fast Delievery
Quality Assurance
24/7 Customer Service

Product Introduction

The wall travelling jib crane is a key piece of equipment in mechanical manufacturing and assembly workshops. It is a type of cantilever lifting device installed on the walls of factories, mainly operating on wall tracks for short-distance and high-frequency material handling. They move along tracks placed on the walls of multi-story assembly workshops, making full use of the workshop's spatial structure and saving production space. The size of the tracks can be flexibly designed to meet your actual needs, allowing for adaptation to different assembly workshops.

During operation, wall-travelling jib cranes can easily lift heavy objects to designated positions by moving the lifting trolley and extending and retracting the cantilever. Its lifting capacity varies depending on different models and specifications, capable of meeting the lifting requirements of various heavy objects, whether it's the handling of small components or the installation of large equipment. Keep reading to know more!

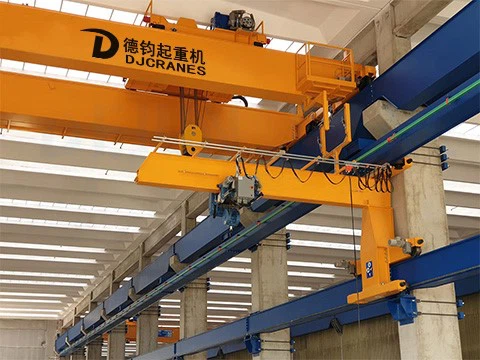

Small Capacity Travelling Jib Crane

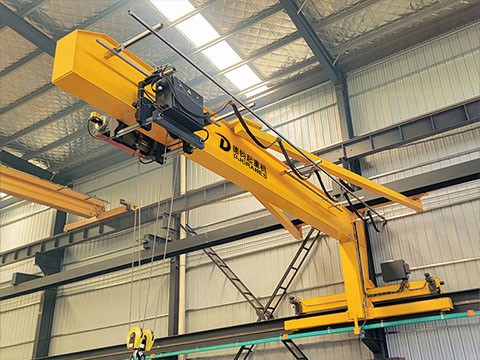

High Efficiency Wall Travelling Jib Crane

Specifications

Item	Wall Travelling Jib Crane
Lifting Capacity	0.5 to 10 tons
Span	3 to 10 meters
Lifting Height	3 to 8 meters
Working Class	A3
Ambient Temperature	-20℃ - 40℃
Payment	TT/LC
Package	Standard Export Package

What are the advantages of using a Wall Travelling jib crane?

Compared with the pillar jib crane, our wall traveling jib crane has advantages in space utilization and installation flexibility, which are detailed as follows:

1. It does not need to set up independent columns on the ground. Only needs to be fixed to the wall, saving ground space, especially suitable for scenarios with dense ground workstations and narrow passages.

2. Easy installation without ground modification: No need to pour a ground foundation; only the wall's load-bearing capacity needs to be confirmed. The fixed seat is installed with expansion bolts and does not damage the ground. Therefore, it is suitable for adding equipment to already operational workshops.

3. Precise operation coverage, suitable for wall-adjacent scenarios: The cantilever arm rotates along the wall, forming a fan-shaped operation area with the fixed seat as the center and the length of the arm as the radius, precisely covering blind spots such as wall-adjacent workstations and side wall shelves.

4. Lightweight structure and low maintenance cost: The use of lightweight materials for the arm, trolley, and other components reduces the load on the wall.

Wall Travelling Crane

2t Wall Travelling Jib Crane

Wall Travelling Jib Crane Applications

Machining: It can be used to lift steel billets and castings to the machine tool chucks or from the machine tools to semi-finished product pallets beside lathes, milling machines, grinders, and other equipment, replacing manual handling.
Side wall shelving access: In warehouses, shelves 3 to 5 meters high are typically set up along the side walls. You can use the wall-traveling jib cranes to lift goods from the ground or trucks to the shelves, without occupying the forklift access in front of the shelves.
Workshop equipment maintenance: When maintaining wall-mounted equipment such as machine tools, water pumps, and fans, you can use it to lift motors, pump bodies, and other components, facilitating the operation of maintenance personnel.
Wall/pipeline installation: In construction, our travelling jib cranes are installed on already poured walls to lift pipelines and prefabricated wall panels. That can avoid the need for scaffolding and improve construction efficiency.
Low clearance: In scenarios where the factory ceiling height is ≤ 4 meters, such as in the renovation of old factories, low clearance boom cranes are selected, with a lifting height of up to 3.2 meters, maximizing the use of vertical space.

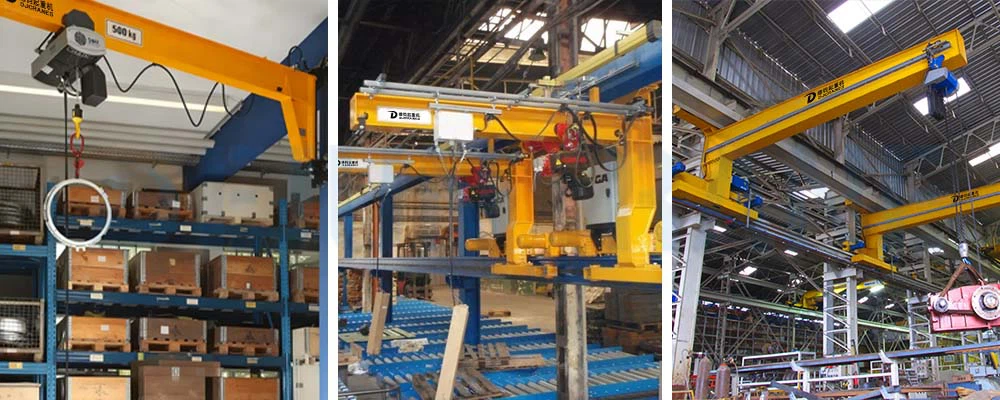

Wide Applications

What Should I do before Ordering?

We received many clients who bought the crane machine for the first time. And they did not know what they should do before paying. To help you understand your actual needs clearly, we have professional engineers and sales managers available to answer your questions about our cranes. However, you need to let us know your requirements before getting a price. Here is some information you need to confirm and send us.

1. Confirm the load-bearing capacity of the wall: Prioritize concrete walls or steel columns.

2. Determine the load and arm length: Select the load based on the maximum daily lifting weight; choose the arm length according to the coverage radius of the operation.

3. Select the type of rotation and trolley: For light loads, choose manual rotation and manual trolley; for heavy loads, select electric rotation and electric trolley. For frequent operations, it is recommended to choose the electric type; for operations no more than 5 times a day, manual models can be selected.

After receiving your information below, we will customize a wall-traveling crane according to your needs!

Double Beam Wall Travelling Crane

Wall Travelling Jib Crane With Electric Trolley

Wall Travelling Jib Crane For Sale

The wall travelling jib crane is an efficient, convenient, and safe industrial lifting equipment. Its wall-mounted installation method saves space, has a strong lifting capacity, and is easy to operate. It is suitable for various types of production workshops and working environments. Henan Dejun Industrial, an experienced jib crane manufacturer, has been devoted to producing high-technology jib cranes since our establishment. Besides the wall-travelling jib cranes, we also produce other jib crane types, such as pilla jib cranes, wall-mounted jib cranes, etc. For any needs, please do not hesitate to contact us. Our sales manager will send you a competitive price!

Dejun Travelling Jib Crane Exorted To Mexico

Dejun Travelling Jib Crane Exported To Mexico

Wall Travelling Jib Cranes Wholesale

Finally Words

In modern industrial production, an efficient wall travelling crane has become one of the most important pieces of equipment. To meet the constantly changing market demands, we continuously learn and improve our crane production technology. Moreover, we have imported more advanced manufacturing equipment from foreign countries. Therefore, we can meet your special and normal purchase needs. In addition, we support crane customization services. If you have special crane needs, please let us know!
