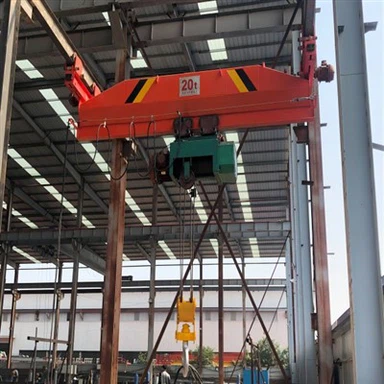

Movable Overhead Crane

1. Product Introduction:


The movable overhead crane is also called LD series single girder electric hoist overhead crane,single beam bridge crane, single girder bridge crane, EOT crane, mobile hoist single girder crane,It uses electric hoist as lifting mechanism,used for lifting heavy materials.



Rated load 3t ~ 20t, span 7.5m ~ 27m, widely used in the working environment temperature -20℃ ~ +40℃, workshop clearance is low places. Working class A3, A4.



2. Parameters:

Lifting Weight(t)	1				2				3				5				10				16				20
Span(m)	7.5	10	15	18	8	13	18	27	7.5	12	18	23	8	12	15	18	8	12	15	20	12	19	25	28	10	16	19	26
Working Speed (m/min)	Ground 20								Ground 30								Ground 20		Ground 30		Ground 20				Ground 20
Model of Electric Hoist	CD1 Model								MD1 Model								CD1 Model		MD1 Model		CD1 Model		MD1 Model		CD1 Model		MD1 Model
Lifting Speed(m/min)	8								8/0.8								7		7/0.7		3.5		3.5/0.35		3.5		3.5/0.35
Hoisting Height(m)	6、9、12、18、24、30 or Customized
Working Class	A3、A4
Electric Current	Three-phase AC 380V 50Hz or Customized



3. Component:


The movable overhead crane consists of metal structure, electric hoist, running mechanism, electrical equipment, etc.



Metal structure part: The main girder usually adopts a box-girder structure, using a welded box-shaped main girder, and the trolley track is arranged on the top and side of the web of the main girder.


Electric hoist: The electric hoist is attached to one side of the main girder and moves longitudinally along the main girder, which increases the service space of the hook and reduces the height and cost of the workshop. For its structural characteristics, please refer to the manual of the electric wire rope hoist.


Operating mechanism: This movable overhead crane adopts the form of separate driving, It is completed by the cone brake asynchronous motor, and the reduction device adopts the "one opening and one closing" gear reduction transmission.



Electrical equipment: The overhead crane supporting motor is a conical brake asynchronous motor. The electric hoist and the whole machine are equipped with safety devices, such as: lifting limit switch, limit switch at the end of the cart, etc.



4. Applicable Environment:

The movable bridge crane is a deformation of the Single Girder Overhead Crane, which is mainly used in the occasions where the headroom of the workshop is relatively low. Widely used in workshops, factories, warehouses, stockyards, industrial and mining enterprises, iron and steel chemicals, railway transportation, ports and other occasions to lift goods. It is forbidden to use in flammable, explosive and corrosive media environment.

5. Wearing Parts:

The wearing parts of The movable bridge crane include b brake, limit switch, buffer and hook safety.



6. How to operate

The movable crane has two types of operation on the ground and in the air.


There are two types of ground operation: wired handle operation and wireless remote control operation;



7. Benefits



① Improved Efficiency



The movable bridge crane provides businesses with an efficient way to move heavy loads, which results in expedited production schedules and increased output.



② Savings in Labor Costs



The bridge crane eliminates the need for manual labor, which results in significant savings in labor costs. It can handle heavy loads without requiring human intervention, enabling the operators to focus on other tasks.



③ Increased Safety



The safety features of the crane ensure that there are no accidents or injuries in the workplace. By ensuring the safety of the equipment and personnel, businesses can save on expenses related to worker compensation and legal liabilities.



④ Low Cost of Ownership



The low cost of ownership makes this crane an attractive option for businesses looking for a cost-effective way to improve their lifting capacity. The minimal maintenance required results in reduced expenses associated with maintenance and repair.



8. Why choose us?

Punctual delivery time


Perfect quality-control system


Advanced test measures


Independently conduct over 20 technological flows



The crane offers businesses an opportunity to improve their lifting capacity, increase efficiency, reduce labor costs, and enhance safety in the workplace. For businesses looking for a cost-effective solution to their lifting needs, the 15 Ton Electric Partial Hanging Single Beam Overhead Crane is an excellent option.
