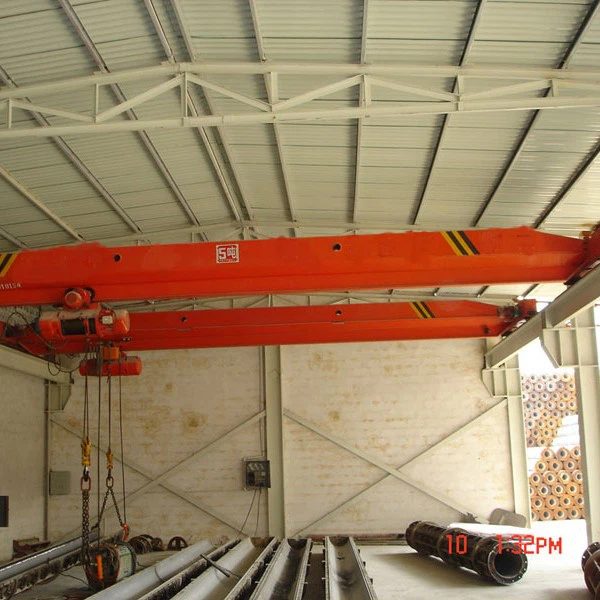

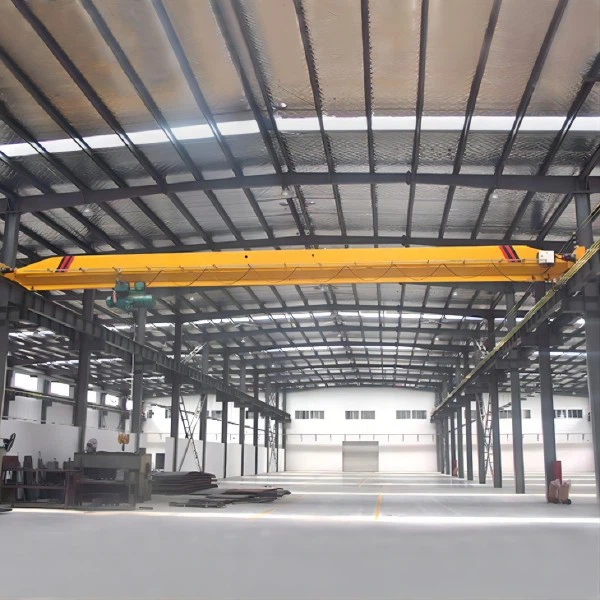

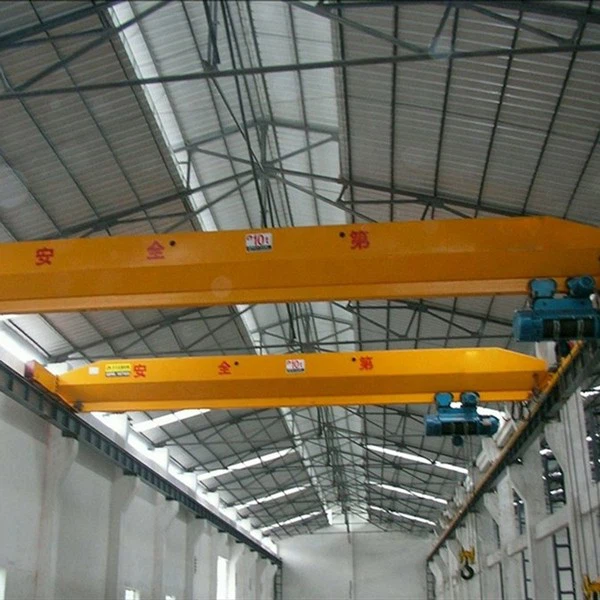

Dejun single girder eot crane

Dejun single girder eot crane structure is relatively simple, its own weight is light, and it is relatively simple in installation, daily maintenance, installation and disassembly.

Dejun single girder eot crane are shorter in span and consume less construction materials, so the cost is lower.

Based on your specific lifting requirements and facility conditions, we will design the most suitable overhead crane system to maximize your productivity and safety.

Single beam top run:

A cost-effective option with a maximum load capacity of 20 tonnes and spans of 7.5-31.5m. The crane has low production and maintenance costs.

Single girder in operation: load-bearing up to 10 tons, span 3-16m.

Single girder crane is a common lifting equipment used for suspending and moving heavy objects. Its working principle is to change the working scope and position through the lateral movement of the crane beam and one or more pulley blocks, thereby realizing the hoisting and transportation of heavy objects.



Single girder crane is mainly composed of the following parts: main beam, stone pier, traveling mechanism, lifting mechanism and electrical system.



First of all, the main beam is the basic structure of a single-beam crane, and it is the main component that connects other components. The main beam is usually made of steel, and the common shapes are quadrangular and box-shaped, which have the characteristics of high strength and good rigidity. The length of the main beam is generally designed according to work requirements to adapt to various sites and lifting tasks.



Secondly, the stone pier is the supporting structure of the main beam, used to fix the main beam and distribute the load on it. Stone piers are generally made of concrete and are reinforced and fixed according to engineering design requirements. The number and arrangement of stone piers are determined as needed to ensure the stability and safety of the entire crane.



The traveling mechanism is the moving device of a single-girder crane and is used to move the crane laterally along the working track. The traveling mechanism usually consists of an electric motor and a gear transmission system. The electric motor drives the wheel pair to roll on the track through the transmission device, thereby changing the position of the crane. The traveling mechanism has the advantages of smooth operation and easy operation.



The hoisting mechanism is the lifting device of a single-girder crane and is used to change the height of the lifted object. The lifting mechanism is mainly composed of motor, reducer, wire rope and pulley block. The electric motor drives the wire rope and pulley block through the reducer to raise or lower the hook and the lifting object. The lifting mechanism has the characteristics of fast lifting speed and smooth operation, and is suitable for various lifting tasks.



The electrical system is the control and driving device of the single-girder crane, which is used to control the operation and various tasks of the crane. The electrical system usually includes the main control cabinet, motors, switches, sensors and power supply devices. The main control cabinet is the core part of the crane. It controls the switch and frequency converter of the motor to realize operations such as lifting, walking and stopping. The electric motor is the driving device of the crane and operates according to the instructions of the electrical system.



The working principle of a single-girder crane is to hoist and transport heavy objects through the cooperation of the main beam, traveling mechanism, lifting mechanism and electrical system. By controlling the operation of the hoisting mechanism and traveling mechanism, the crane can perform lifting operations at different locations. At the same time, the cooperation of the electrical system enables the crane to achieve positioning, quick response, and safe and reliable work. Single-girder cranes are widely used in industrial production, construction and other fields due to their simple structure, convenient operation and reliable performance, providing important support for the development of various industries.

Advantages:

1. Customization: Our overhead crane can be customized to meet the specific requirements of each business.

2. Ease of Maintenance: Our overhead crane is designed to be easy to maintain, requiring just a few simple procedures to keep it in excellent condition.

3. Timely Delivery: We pride ourselves on our timely delivery of products to our customers.
