Garage Bridge Crane

QG garage bridge crane

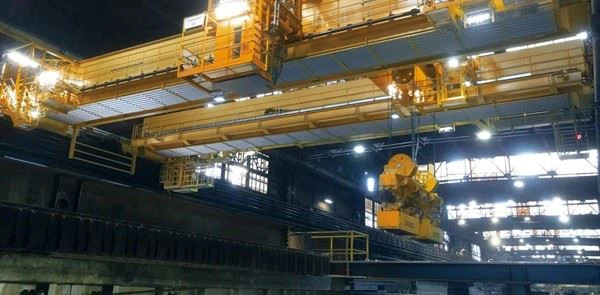

QG garage bridge crane is one kind of heavy duty overhead crane, it is composed with Girder frame, Crane travel device, and the trolley with lifting and moving device,Cabin and electric control system,Hanging beam. There are Paved rail on the main girder for the trolley cross traveling.





QG garage bridge crane is suitable to lift long material, for example, long steel plate, steel bars, steel billets, section steel, steel rebars, steel coils, steel bar bundles.

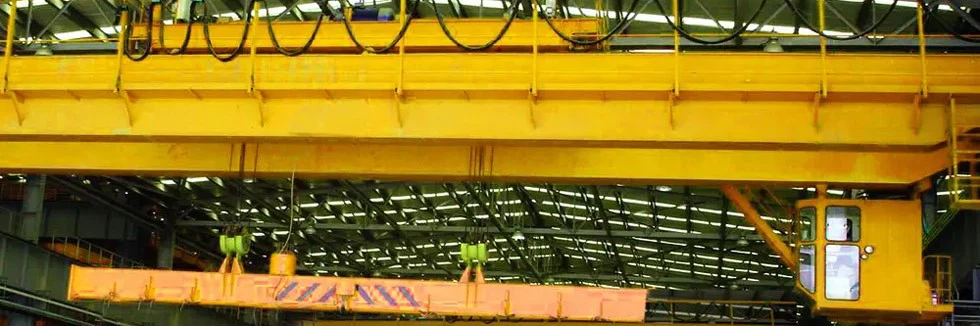

The QG garage bridge crane has two lifting points,which is used to hang the hanging beam with magnet.The hoisting mechanism mostly adopts single motor, double reducer, double drum arrangement, in the form of double lifting points,then it has anti sway function.





Lifting Weight(t)			7.5+7.5			10+10		16+16		20+20			Customized
Span(m)			10.5 13.5 16.5 19.5 22.5 25.5 28.5 31.5
Max. Lifting Height(m)			16			12		16		12			Customized
Speed (m/min)	Hoisting	A6	12.5			13.5		13.6		11.8			Customized
		A7	15.4			15.9		15.3		15.22			Customized
	Travelling of Crab		Customized
	Travelling of Trolley	A6	115.6	116.8	112.5	112.5	101.4	113	102.5	102.4	102.9	86.8	86.6	Customized



Features:


(1) The steel structure has strong rigidity, large margin, and is durable.


(2) The protection device is perfect, safe and reliable.


(3) Simple control, convenient operation and convenient maintenance.


(4) Wide application, high versatility of parts and good maintainability.





The walkway entrance to the control room is divided into: end entry, side entry, and top entry.



When using the electromagnetic disk, the rotating part of the hook must be locked with screws, and no rotation is allowed.



The lifting capacity includes the self-weight of the electromagnet.



The total weight of the QG garage bridge crane does not include the weight of the electromagnet and its accessories.



The QG garage bridge crane is very convenient to use, but it must have an electric current before it can be used. It can be used in scrap iron and steel recycling departments and steelmaking workshops. A device that uses electromagnets to carry steel materials is called an electromagnetic crane.



The QG garage bridge crane can generate a strong magnetic field force. Dozens of tons of iron and other iron materials can be easily collected and transported without boxing, packaging or binding. It not only saves labor, but also simplifies the work.





The principle of QG garage bridge crane manufacturers:



1. QG garage bridge crane refers to a machine that uses electromagnetic principles to move steel objects.



2. The working principle of the QG garage bridge crane: the magnetic field is generated by electrification, and then the electromagnetic force is generated and the object is attracted by the generated electromagnetic force.



3. It is a machine with an electromagnetic chuck that uses electromagnetic principles to carry steel objects than ordinary cranes.



4. The main part of the QG garage bridge crane is the magnet.



5. When the current is turned on, the electromagnet will firmly attract the iron and steel objects and lift them to the designated place.



6. Cut off the current, the magnetism will disappear, and the iron and steel objects will be put down.



7. The principle is the principle of electromagnetic induction. After electrification, the coil generates a magnetic field, and the magnetic field attracts iron objects.
