Warehouse Crane

1. Product Introduction:



Warehouse crane has the advantages of simple structure, light weight and cheap price, and is mainly used for general lifting and unloading operations in machinery manufacturing workshops, warehouses, assembly and hydropower station maintenance. The industrial ambient temperature of this product is -25~40℃. It is not suitable for the medium with explosion danger and fire danger and the relative temperature is greater than 85%, full of corrosive gases, and is not suitable for lifting dissolved metals and toxic, flammable and explosive items.



We offer customized solutions and modify our products to meet specific customer needs. Our team of experienced engineers works closely with clients to understand their requirements, and we provide expert guidance to help them make the right decision.

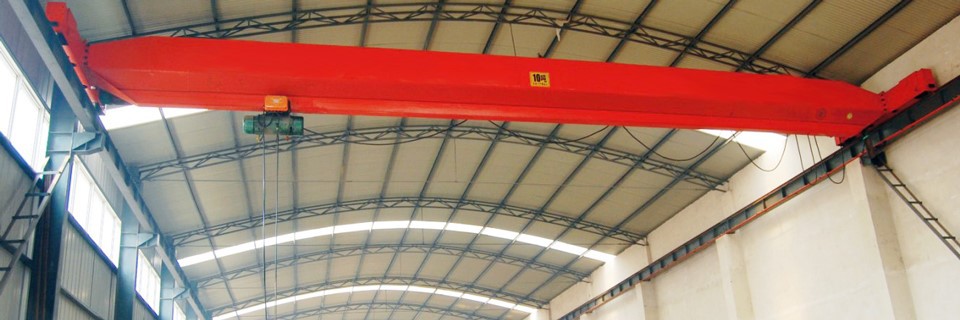

The electric single beam warehouse overhead crane is operated by a fixed electric hoist installed on the main beam of the driving vehicle as a lifting mechanism. This product is ground operated.



2. Parameters:



Lifting Weight(t)	1				2				3				5				10				16				Customized
Span(m)	7.5	10	15	18	8	13	18	27	7.5	12	18	23	8	12	15	18	8	12	15	20	12	19	25	28	Customized
Working Speed (m/min)	Ground 20								Ground 20								Ground20				Ground 20				Customized
Hoisting Height(m) Customized	Customized
Working Class	A4 or Customized
Electric Current	Customized

3. Component:



Dejun brand warehouse overhead crane with electric hoist consists of a main beam, two end beams, a cart running mechanism, a wire rope electric hoist, and an electrical control system;



The main frame of the bridge frame is composed of a main beam and two end beams, and the cart running mechanism is connected by high-strength bolts;



The cart running mechanism consists of two motors, two reducers, and four traveling wheels (two active and two driven) installed on both sides of the end beam; Electric wire rope hoist is composed of trolley running mechanism, hoisting mechanism and electrical system; The trolley running mechanism is composed of a motor, a reducer, a small wheel, and an electrical control system. It is installed under the main beam of the bridge machine to move left and right along the main beam, and the normal speed is 20m/min;



The hoisting mechanism (electric wire rope hoist) is composed of a motor, a reducer, a drum and a casing, a wire rope, a hook, and an electric device. It is installed under the running trolley for ascending and descending operation, and there are two forms of single-speed and double-speed;



The electrical control system consists of the main engine cart control box, electric hoist control box, overload limiter, break fire limiter, travel switch, remote control, collector, seamless sliding contact line, drop wheel, tow cable, wire drawing, rope buckles, flange bolts and other accessories;



In addition to the above configurations, Our warehouse Crane is Fitted with Advanced Safety Features, Including a load limit switch, overloading proposition, and door interlock. Hat The Crane Stops Working Immediaately When it reaches ites load capacity, this preventing academents and damages.







5. Why choose us?

Punctual delivery time

Perfect quality-control system

Advanced test measures

Independently conduct over 20 technological flows

The crane offers businesses an opportunity to improve their lifting capacity, increase efficiency, reduce labor costs, and enhance safety in the workplace. For businesses looking for a cost-effective solution to their lifting needs, the warehouse Overhead Crane is an excellent option.



6. Transportation:

7.Safety protection device



The lifting mechanism and operating mechanism of the warehouse crane power drive shall be provided with a brake, and the lifting mechanism of the manpower drive shall be provided with a brake or a stop.



For warehouse cranes that use electric hoards as lifting mechanisms to lift molten metal, the brake Settings should meet the following requirements:



When the rated lifting weight is greater than 5t, the electric hoist in addition to a working brake, must also be set up a safety brake, safety brake is set in the low speed level of the electric hoist, when the working brake fails or the transmission parts are broken, can reliably support the rated load;



When the rated lifting weight is less than or equal to 5t, in addition to setting the working brake, the electric hoist should also set the safety brake on the low speed level, otherwise the electric hoist should be designed according to 1.5 times the rated lifting weight, or the rated lifting weight of the crane selected by the use of the unit is 1.5 times the maximum lifting weight. And use the lifting weight sign to specify the maximum allowable lifting weight.
