Outdoor Overhead Crane

1. Product Introduction:

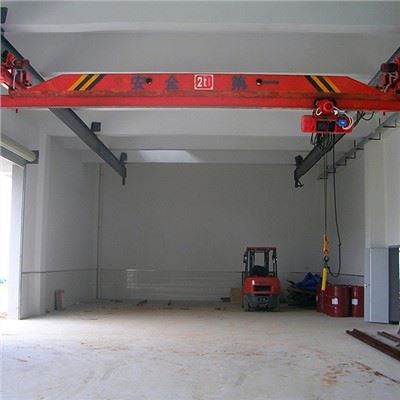

The LB outdoor overhead crane is referred to as "explosion-proof crane". It is a single-girder bridge crane with an explosion-proof electric hoist as the lifting mechanism. LB outdoor bridge crane complies with the requirements of the JB/T10219-2001 "Explosion-proof Beam Crane" standard. LB overhead crane has mature technology, reliability, and simple structure. , small in appearance, light in weight, easy to install, use and maintain.



2. Environmental conditions:



The working power supply is three-phase AC, the rated frequency is 50HZ, the rated voltage is 380V; the working environment temperature is -20~40℃. The relative humidity should not exceed 50% when working indoors at 40°C, and the relative humidity is allowed to be as high as 100% for a short time when working outdoors at 25°C. The altitude of the installation location does not exceed 2000m. LB outdoor overhead crane is suitable for maintenance and loading and unloading work in machinery workshops, warehouses, material yards, and hydropower stations with medium and light working hours. It is a lifting equipment popularized in China.



3. Parameters:



Lifting Weight(t)	1				2				3				5				10				16				Customized
Span(m)	7.5	10	15	18	8	13	18	27	7.5	12	18	23	8	12	15	18	8	12	15	20	12	19	25	28	Customized
Working Speed (m/min)	Ground 20								Ground 20								Ground20				Ground 20				Customized
Hoisting Height(m) Customized	Customized
Working Class	A4 or Customized
Electric Current	Customized

4. Component:



LB outdoor overhead crane consists of a main beam, two end beams, a cart running mechanism, a wire rope electric hoist, and an electrical control system;



The main frame of the bridge frame is composed of a main beam and two end beams, and the cart running mechanism is connected by high-strength bolts;



The cart running mechanism consists of two motors, two reducers, and four traveling wheels (two active and two driven) installed on both sides of the end beam; Electric wire rope hoist is composed of trolley running mechanism, hoisting mechanism and electrical system; The trolley running mechanism is composed of a motor, a reducer, a small wheel, and an electrical control system. It is installed under the main beam of the bridge machine to move left and right along the main beam, and the normal speed is 20m/min;



The hoisting mechanism (electric wire rope hoist) is composed of a motor, a reducer, a drum and a casing, a wire rope, a hook, and an electric device. It is installed under the running trolley for ascending and descending operation, and there are two forms of single-speed and double-speed;



The electrical control system consists of the main engine cart control box, electric hoist control box, overload limiter, break fire limiter, travel switch, remote control, collector, seamless sliding contact line, drop wheel, tow cable, wire drawing, rope buckles, flange bolts and other accessories;



In addition to the above configurations, Our Crane is Fitted with Advanced Safety Features, Including a load limit switch, overloading proposition, and door interlock. Hat The Crane Stops Working Immediaately When it reaches ites load capacity, this preventing academents and damages.



5. Applicable Environment:



LB outdoor overhead cranes are widely used in factories, warehouses, and stockyards of chemical industry units. They are equipped with two types: ground and driver's cab. The driver's cab is divided into open and closed types. The installation form is divided into left and right, and the entrance direction LB bridge overhead crane is divided into side and end faces for users to choose according to their respective usage conditions.





6. How to operate?

The LB outdoor overhead crane has two types of operation on the ground



Please Click Here To Know More.



7. Transportation:

8. Frequently Asked Questions



(1) What's your MOQ?

1 Set;



(2) How long can we provide design solutions？

Less than 24 hours;



(3) What's your warranty period?

12 months from winches accepted;



(4) Could your winches drag inclined?

No.



......(Click Here To Know More)



LB outdoor overhead crane is an excellent option for companies that require a reliable and durable crane capable of handling heavy loads. It is affordable, customizable, and built with the best quality materials, making it an excellent addition to any production line. We invite interested clients to contact us for more information on this excellent product.
