80 Ton Overhead Crane

1. Product Introduction:



80 ton Metallurgical overhead crane work by relying on longitudinal movement along the track of the factory building, lateral movement of the trolley, and lifting movement of the hook. Metallurgical overhead crane is suitable for metal smelting workshops and is a special crane for lifting molten metal that complies with JB/T7688.1-95 and JB/T7688.15-95 standards. The application of 80 ton overhead crane is generally suitable for ambient temperatures from -10°C to +50°C. At a temperature of 40°C, the relative humidity does not exceed 50°C. The radiation temperature of the forged hooks and plate hooks of the lifted molten metal does not exceed 300°C. Work levels: A7 and A8 are used in relatively busy metallurgical casting workshops.



80 ton Metallurgical overhead crane applications are generally suitable for ambient temperatures from -10°C to +50°C.The relative humidity should not exceed 50% at a temperature of 40 °C. And the radiation temperature of the molten metal to be lifted and transported to the forging hook and plate hook should not exceed 300 °C. Its working class can reach: A7, A8, used in relatively busy metallurgical foundry workshops.



The metallurgical overhead crane is designed to withstand the harsh conditions of metallurgical operations. It features a sturdy structure built from steel plates, with welded joints for added durability. The crane's two beams sit upon durable end trucks, each of which features six wheels for easy movement along the supporting gantry rails. Inside the crane, we use a double-trolley system which requires less maintenance and results in a lower-cost solution for lifting and moving materials of high capacity.



We have equipped this 80 ton Metallurgical overhead crane with advanced safety features that ensure operator safety always comes first. Key components such as the hoist, electrical components, and safety devices, are of reputable quality that provides peace of mind knowing that our crane is engineered for safety.



2. Parameters:



Lifting Capacity(t)		125/32		140/40			160/50			180/40（50）			Customized
Span(m)		19	22	19	22	25	19	22	25	19	22	25	Customized
Lifting Height(m)	Main Hook	24	20	Customized
	Auxiliary Hook	26	22	25			26			26			Customized
Speed(m/min)	Main Hook	9.5	7.6	Customized
	Auxiliary Hook	12	9.5	9.5			7.8			9.5			Customized
Working Class		A7、A8
Electric Current		Customized

3. Component:

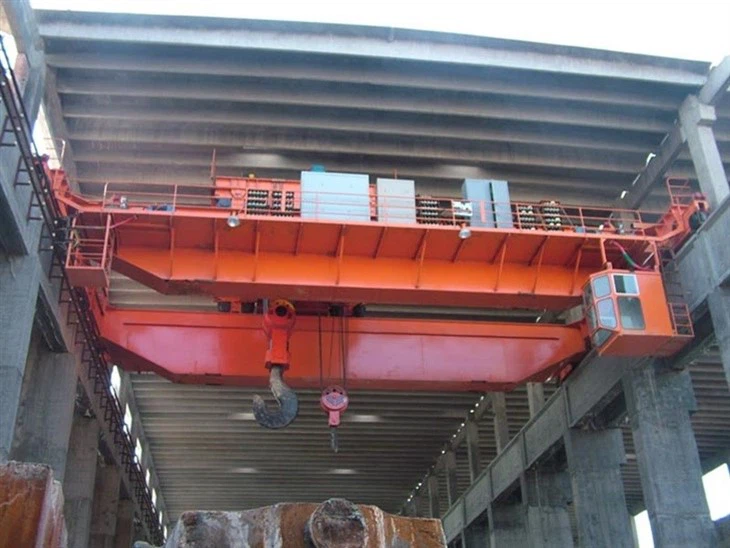

The 80 ton Metallurgical overhead crane is composed of five parts: box-shaped bridge frame, cart operating mechanism, trolley, grab bucket, and electrical equipment, which is consistent with the general double-girder bridge crane. However, the 80 ton overhead crane must have the following effective measures to ensure the normal use of the crane:



Anti-radiant heat device and fire board: the bottom of the driver's cab; the bottom of the main beam and the lifting beam; the wiring parts of the passage and platform, the bottom of the hoisting trolley and other parts that are exposed to heat radiation, all are fortified with vehicle heat-radiating devices;

Independently driven main and auxiliary trolleys. The main trolley is equipped with fixed-spacing gantry hooks to hoist the steel drum; the auxiliary trolley can be used to tip the steel drum or do other auxiliary lifting operations;



The protection levels of all electrical equipment and electronic control equipment meet the relevant standards for metallurgical 80 ton overhead cranes;



4. Applicable Environment:



80 ton Metallurgical overhead cranes are mainly suitable for special cranes used in metal smelting, rolling and thermal processing. These include open hearth charging bridge cranes, ground charging cranes, bin cranes, stripping cranes, molding cranes, uncovering cranes, clamping cranes, slab flipping cranes, forging cranes, heating furnace loading and unloading cranes, bin- Electromagnetic crane, bin-grab crane. Other similar 80 ton Metallurgical overhead cranes can also be used with reference.



The working environment temperature and humidity of the crane: The working environment temperature of the crane is generally -10~+50°C; The relative humidity does not exceed 50% at a temperature of +40°C.



5. Types and uses of 80 ton Metallurgical overhead crane:

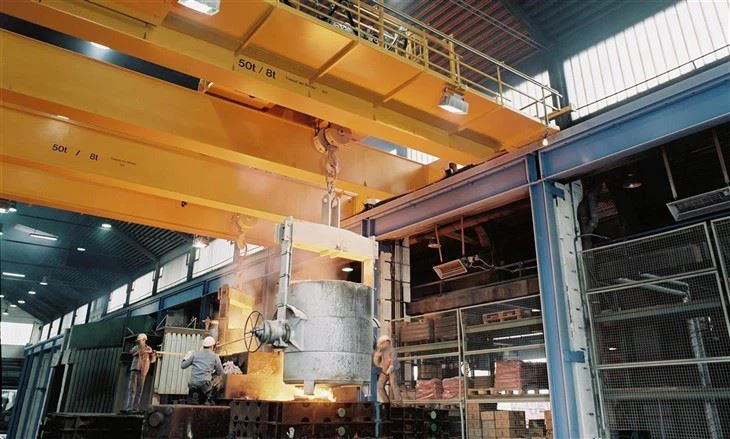

The types and uses of 80 ton Metallurgical overhead crane are as follows: casting cranes are used for lifting molten iron, molten steel, molten copper, molten aluminum, etc. The main trolley is used to lift hanging tanks, and the auxiliary trolley is used for auxiliary operations such as flipping hanging tanks. The main trolley is equipped with double hooks and can be directly used for equipment hoisting work. Clamp crane for lifting hot metal ingots. Generally, 80 ton Metallurgical overhead crane must be modified before it can be used for equipment hoisting. The ingot removal crane is used to remove ingots from the casting mold and is generally not used for equipment hoisting work.



There are two types of feeding machines: suspended and floor-standing. They are specially used for feeding materials into the open hearth furnace and are generally not used for equipment hoisting work. Forging crane is used to forge large workpieces in conjunction with a large forging hammer hydraulic press. Remove the tipper suspended from the hook and can be used for equipment hoisting. However, the hook is lowered to a higher position. If you need to lift heavy objects on the ground , measures such as replacing long ropes should also be taken. Special crane for copper electrolysis, specially used for unloading and installing electrolytic plates. Because it has no hook, its hanger can be used for lifting lighter loads. It can also be used for equipment hoisting after modification measures are taken. Aluminum electrolysis multifunctional crane is specially used for aluminum electrolysis production. It is used for feeding, discharging aluminum, replacing anodes, shelling and other operations. It cannot be used for equipment hoisting.



6. How to operate a 80 ton Metallurgical overhead crane?



There are two types of driver's cab, open type and closed type.

If u want to know more, please click here.



7. Transportation:
