Portable Bridge Crane

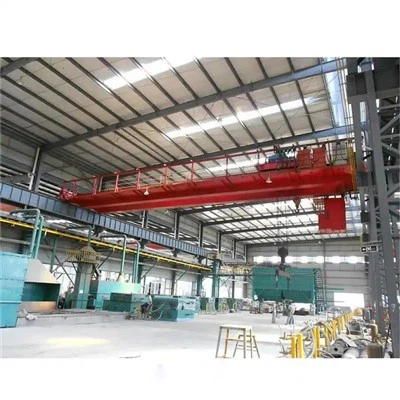

Hanging portable bridge crane



Hanging portable bridge crane is a lifting equipment that is placed horizontally over workshops, warehouses and stockyards for lifting materials. Its two ends are located on concrete or steel structure columns, shaped like a bridge. The space under the bridge can be fully utilized to lift materials without being hindered by ground equipment.



Hanging portable bridge cranes convenience and efficiency have greatly solved many problems that are difficult for manpower to be immediate, effectively improved work efficiency, and saved more capital for many industries and fields, so it has been reused. The working class can reach: A3-A4

2. Parameters:

Lifting Weight(t)	1		2		3		5		10		Customized
Span(m)	Customized
Working Speed (m/min)	20 30		20 30		20 30		20 30		20 30		Customized
Model of Electric Hoist	CD1	MD1	CD1	MD1	CD1	MD1	CD1	MD1	CD1	MD1	Customized
Hoisting Height(m)	6 9 12 18		6 9 12 18		6 9 12 18		6 9 12 18		6 9 12 18		Customized
Lifting Speed(m/min)	8	8/0.8	8	8/0.8	8	8/0.8	8	8/0.8	8	8/0.8	Customized
Working Class	A3-A4
Electric Current	Customized



3. Component:


Main girder, suspension end beam, cart running mechanism, trolley running mechanism, etc.


The main beam adopts a box-shaped structure, which simplifies the manufacturing process and easily controls the deformation size of the structure.


At the same time, the "crossing bridge" form is adopted to realize the drive on both sides, and the wheels are hidden in the end beams, which saves space and improves the net lifting height of the crane.


The fixed electric wire rope hoist is used as the hoisting mechanism.



4. Applicable Environment:


Hanging portable bridge crane is mainly used for loading and unloading and handling heavy objects in machinery manufacturing workshops, electronics, precision machinery, biopharmaceuticals and other places. It is forbidden to use in flammable, explosive and corrosive media environment.



It is mainly used in large-scale processing workshops.

5. Wearing Parts:


Contactors and current collectors.



6. Advantages and features of the Hanging portable bridge crane



1. Good reliability and high stability



Hanging portable bridge crane is composed of modular standard components, which can be produced in large quantities. The main body of the module is three specifications of cold-rolled profiles, which have high strength, good rigidity, light weight and ensure the stability of the system.



2. Strong adaptability



It can be flexibly designed and installed according to the needs of each work station in the factory. From transportation between two points to accurately positioned automated conveying lines, it can be combined at will. It can be used for newly designed factory buildings or for the extension and transformation of old systems.



3. Simple installation, good reliability and economy



Standardized mass production, with good reliability and cost performance. Standard components are connected by plug-in bolts, which is fast and convenient. Manual operation, electric operation and semi-automatic operation can be realized according to needs.



7. Frequently Asked Questions:



What is the lead time for your products?
7 to 10 days

Do you have engineer oversea installation service?
Yes; we have;

Could we buy spare parts in local once they are out of work?
Our main electrical parts are universal parts; it's very easy to buy all the world. But if there is any difficulty, we can post to you by express, such as DHL, UPS, FEDEX, Aramex, etc.
