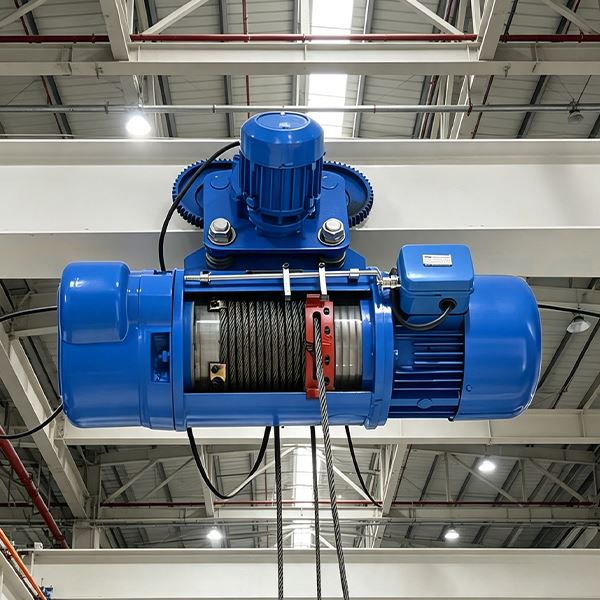

Electric Wire Rope Hoist
MOQ: 1 Set
Lifting Capacity: 0.5-32 tons (can be customized)
Hoisting Height: 6-48 meters
Hoisting Speed: 2.4-8 m/min
Travel Speed: 15-30 m/min
- Fast Delievery
- Quality Assurance
- 24/7 Customer Service
Product Introduction
An electric wire rope hoist is a type of small, lightweight special lifting equipment that uses a wire rope as the load-bearing component. It can lift or move heavy objects vertically or horizontally through an electric drive. Moreover, it is one of the most commonly used basic lifting devices in industrial hoisting. The essence of the wire rope electric hoist is a combination of electric drive and a wire rope traction lifting device: after power is connected, the motor rotates, and the torque is amplified by the reducer, driving the drum to wind or unwind the wire rope. The lifting and lowering of the heavy object is achieved by the hoist hook through the winding and unwinding of the wire rope. When it stops, the built-in brake will automatically lock to prevent the heavy object from falling. It can be installed and used alone on I-beam tracks or can be installed as a lifting mechanism in overhead cranes, gantry cranes, jib cranes, and other lifting systems. For more details, please keep reading!
Electric Wire Rope Hoist Specifications
|
Item
|
Electric Wire Rope Hoist
|
|
Type
|
CD, MD
|
|
Lifting Capacity
|
0.5-32 tons (can be customized)
|
|
Hoisting Height
|
6-48 meters
|
|
Hoisting Speed
|
2.4-8 m/min
|
|
Travel Speed
|
15-30 m/min
|
|
Wire Rope Dia
|
4.8-26 mm
|
|
Power source
|
Three-phase AC 380V 50Hz
|
|
Package
|
Standard Exported Package
|
|
Payment Method
|
TT
|
|
MOQ
|
1 Set
|
Features
The wire rope electric hoist has a compact structure, and its core components include: motor, reducer, brake, drum device, wire rope, hoist hook, limit device, control unit, etc. It has several prominent advantages:
1. Simple structure and easy maintenance: The structure is simple, with fewer parts, making maintenance relatively easy.
2. Simple operation and reliable safety: It is driven by electricity, operates smoothly and simply, and the operator can master the operation skills after simple training. In addition, it has multiple protection measures, such as overload protection and rope break protection, to ensure the safety of the operator.
3. Adjustable lifting height: The lifting height can be easily adjusted by changing the number and position of pulleys.
4. Lightweight and easy to move: The wire rope electric hoist is relatively light in weight, easy to carry and move, and suitable for various working environments.
Electric Wire Rope hoist vs. Electric Chain Hoist: What Is The Difference?
The core difference: The core load-bearing components of the two are different, and the applicable scenarios vary significantly. The specific comparison and selection suggestions are as follows:
1. Wire rope electric hoist: The load-bearing component is wire rope. It has a compact overall structure, a smaller volume, a faster lifting speed, and can achieve a higher lifting height.
Advantages: Smooth operation, suitable for high-frequency, high-lifting-height working conditions, good tolerance to environmental dust and slight corrosion, neat appearance, and relatively simple maintenance.
Applicable scenarios: Workshop assembly lines, warehouse goods handling, crane matching, outdoor medium and small-scale lifting, especially suitable for scenarios requiring rapid lifting and high lifting heights, with a lifting capacity ranging from 0.5t to 50t.
2. Electric chain hoist: The load-bearing component is a chain. It is relatively light in weight, easy to disassemble and move, has a relatively slow lifting speed, and the conventional lifting height is 3-12m.
Advantages: Simple structure, high cost performance, strong chain toughness, can withstand slight oblique pulling, convenient maintenance, and low cost for replacing wear parts. It is suitable for small-space lifting.
Summary: For daily light-load lifting in workshops and small-space lifting, choose a chain electric hoist; for high-frequency, high-lifting-height, and high-load scenarios, or when smooth operation and low noise are required, choose a wire rope electric hoist; in outdoor environments with high dust and corrosion, prioritize a corrosion-resistant wire rope electric hoist.
Finally Words
Wire rope electric hoist is an efficient and practical lifting equipment that is widely used in construction sites, warehouses, docks, and other places. It is mainly composed of wire rope, electric hoist, pulley, and hook, etc. Being powered by electricity, it can easily lift and move heavy objects, greatly improving work efficiency. Welcome to contact us for more details and the latest price!
