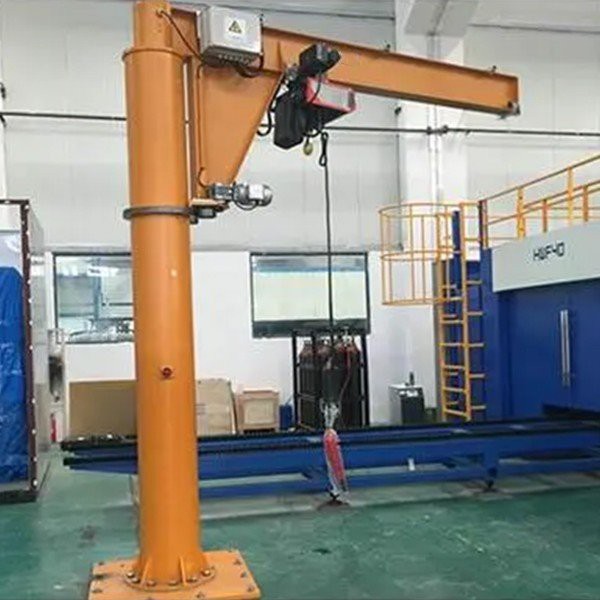

Free Standing Pillar Floor Column Mounted Jib Crane with European Hoist
The Free Standing Pillar floor column mounted Jib Crane with European Hoist has the same structure as the ordinary Free Standing Pillar Jib Crane. The only difference is the hoisting mechanism.
- Fast Delievery
- Quality Assurance
- 24/7 Customer Service
Product Introduction
The Free Standing Pillar floor column mounted Jib Crane with European Hoist has the same structure as the ordinary Free Standing Pillar Jib Crane. The only difference is the hoisting mechanism. The hoisting mechanism used by ordinary Free Standing Pillar Jib Crane is a traditional electric wire rope hoist; the hoisting mechanism used by the cantilever crane is a European-style wire rope electric hoist. Compared with ordinary electric hoists, European electric hoists are lighter in weight and smaller in height, which means they can achieve low headroom.
Customized special lifting equipment can be designed according to customer needs, it is suitable for lifting and transporting heavy objects in production lines, assembly lines and machine tools in factories, mines, workshops, and machine tools, as well as in warehouses, docks and other occasions.
The jib crane can be rotated from 90 degrees to 360 degrees. Work level can be achieved A5~A6.
2. Parameters:
Lifting Capacity | 0.25t or Customized | |||
Lifting Height | h（m） | 5 | 5.5 | Customized |
Effective Radius | R（m） | 4 | 4.5 | Customized |
Lifting Speed | m/min | 8 | 8 | Customized |
Travelling Speed | m/min | 20 | 20 | Customized |
Rotating Speed | ° | Arbitrarily | Arbitrarily | Customized |
Overall Height | m | 1.2 | 1.2 | Customized |
Overall Length | m | 4.326 | 4.826 | Customized |
Total Weight | kg | 343 | 362 | Customized |
3. Component:
Free Standing Pillar floor column mounted Jib Crane with European Hoist is mainly composed of metal structure part, cantilever crane European-style electric hoist, electrical equipment and so on.
Metal structure part: the main beam is formed by welding I-beam.
The uprights are made of seamless round tubes.
European electric hoist: European-style hoist jib cranes are generally suitable for European-style wire rope hoists as the lifting mechanism. It can be used to lift heavy objects and move longitudinally along the main beam. For its structural characteristics, please refer to the manual of the electric European wire rope hoist.
Electrical Equipment: The electric European wire rope hoist and the whole crane are equipped with safety devices. Such as lifting limit switch, end limit switch, etc.
4. Applicable Environment:
The Free Standing Pillar Jib Crane with Electric European Hoist has a small footprint and is easy to operate. It is suitable for the production and maintenance of mechanical product manufacturing, railway, chemical industry, and light and small industries;
5. Wearing Parts：
Limit switch, Safety hook, Hoist traveling, Limit switch
6. How to operate?
Usually use the remote control
7. Transportation:
8. Why choose us?
Independently conduct over 20 technological flows.
Punctual delivery time.
7*24h online services.
Our company has a strict quality inspection system, and the quality of each equipment has a strong guarantee.
——In order to ensure the quality of our cranes, different methods of quality testing will be carried out in each link of production: radiographic testing, ultrasonic testing, penetration testing, magnetic particle testing, electromagnetic or eddy current testing, coating testing, metal hardness detection.
9. Frequently Asked Questions
How long can we provide design solutions?
Less than 24 hours
What's your warranty period?
12 months from cranes accepted;
Could your winches drag inclined?
No.
