Electric Single Beam Crane

Description

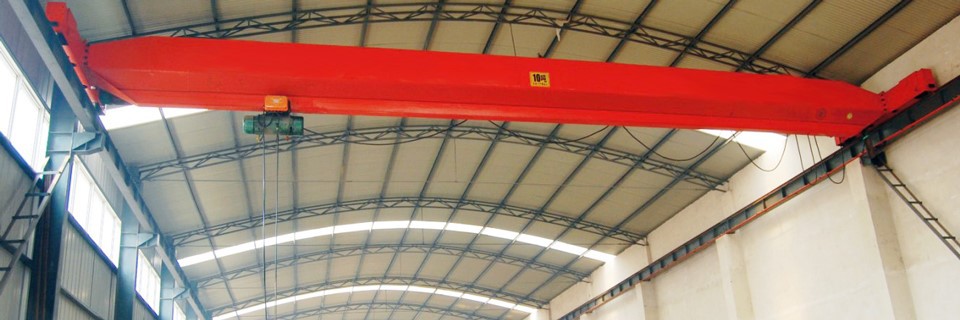

The Electric Single Beam Crane is a bridge crane, which uses a single beam to support the crane and trolley. Its main beam is connected to two end beams, and the end beams are installed on wheels running along the track beams for lifting and transporting loads, which can often be seen in small and medium-sized factories, warehouses and workshops. Compared with other bridge cranes, this crane has lower dead weight, less structural support and easier operation and maintenance. In addition, it is very flexible in handling various loads, suitable for various applications, which can not only help improve daily production efficiency, but also provide an ideal solution for operations with limited overhead space.

Features

1. Powerful performance: This Electric Single Beam Crane is designed and manufactured according to JB/T1306-2008 standard, which has the characteristics of reasonable structure and strong rigidity of the whole machine. It can not only lift the workpiece independently, but also cooperate with each other to turn over the large workpiece.
2. Good operability: its soft-driven motor and reducer can maintain the stability of workpiece transportation and ensure low noise and uninterrupted motion performance.
3. Flexible and multi-purpose: it can be equipped with variable frequency cart and variable frequency hoist according to the needs of field working conditions, which is convenient for loading large materials and shortening the time used.

Maintenance of bridge cranes

1) The appearance of the bridge crane: clean the appearance comprehensively, so that there is no dust and no yellow robes. Check for cracks and open welding.


2) Carts and trolleys: ① Check and fasten the transmission shaft seat, gear box, coupling, shaft and key for looseness; ② Check and adjust the brake wheel clearance to make it even, sensitive and reliable.


3) Check the bridge crane reducer mainly to see if it leaks oil. If there is abnormal sound in the box during operation, it is necessary to open the box cover to check. Generally, it is caused by bearing damage, excessive gear meshing backlash, serious tooth surface wear and other reasons.


4) Lifting winch: ① Check whether the wire rope, hook and pulley are safe and reliable, and replace them if the wear exceeds the specified value. ② Check and adjust the brake to make it safe, sensitive and reliable.


Parameters
