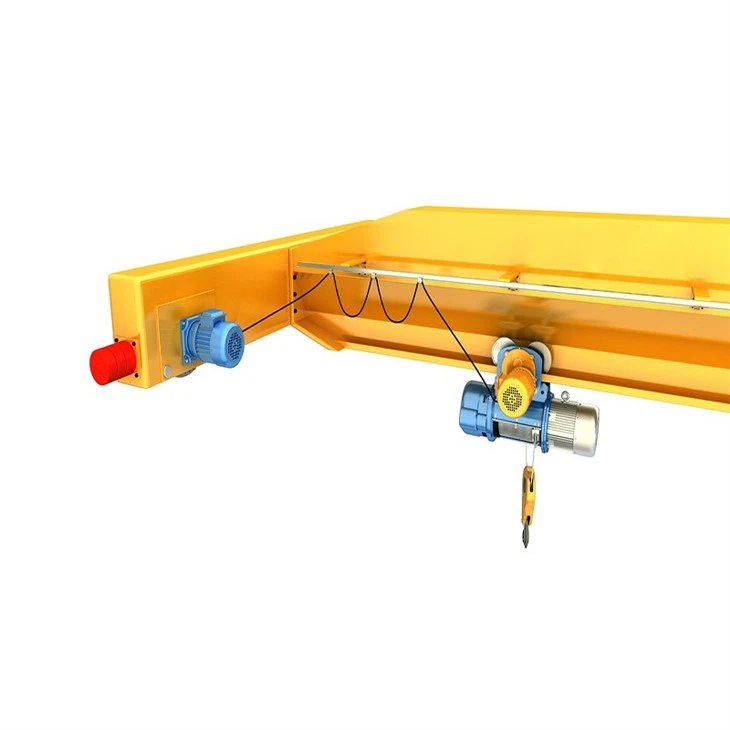

Single Girder overhead stacker crane is composed of the main girder, end girder, electric wire rope hoist and operating mechanism welded by steel plate and I-beam ,the electric wire rope hoist runs along the lower flange of the main beam I-beam to complete the lifting and transportation of the items.

Send Inquiry

Fast Delievery
Quality Assurance
24/7 Customer Service

Product Introduction

1. Product Introduction:

Single Girder overhead stacker crane is usually a straight single beam bridge crane，and is widely used for lifting goods in factories, warehouses, and material plants. It has a reasonable structure and high overall steel strength. The main beam of the bridge of single beam crane mostly adopts I-steel or the combined section of steel section and steel plate. It is usually used in conjunction with electric hoists as a lifting mechanism, which is used to lift goods in different occasions.

The Single Girder overhead stacker crane Advantages is Light weight structure, excellent performance, advanced design concept, effectively improve space utilization;Made of high quality steel, durable and corrosion resistant ;Complete standard configuration, stable running, fast positioning, stable and safe operation;Simple maintenance, low installation and maintenance costs, and long service life.

10 ton Overhead Crane quotation

2. Parameters:

Lifting Weight(t)	1				2				3				5				10				16				Customized
Span(m)	7.5	10	15	18	8	13	18	27	7.5	12	18	23	8	12	15	18	8	12	15	20	12	19	25	28	Customized
Working Speed (m/min)	Ground 20								Ground 20								Ground20				Ground 20				Customized
Hoisting Height(m) Customized	Customized
Working Class	A4 or Customized
Electric Current	Customized

3. Component:

Single Girder overhead stacker crane consists of a main beam, two end beams, a cart running mechanism, a wire rope electric hoist, and an electrical control system;

The main frame of the bridge frame is composed of a main beam and two end beams, and the cart running mechanism is connected by high-strength bolts;

The cart running mechanism consists of two motors, two reducers, and four traveling wheels (two active and two driven) installed on both sides of the end beam; Electric wire rope hoist is composed of trolley running mechanism, hoisting mechanism and electrical system; The trolley running mechanism is composed of a motor, a reducer, a small wheel, and an electrical control system. It is installed under the main beam of the bridge machine to move left and right along the main beam, and the normal speed is 20m/min;

The hoisting mechanism (electric wire rope hoist) is composed of a motor, a reducer, a drum and a casing, a wire rope, a hook, and an electric device. It is installed under the running trolley for ascending and descending operation, and there are two forms of single-speed and double-speed;

The electrical control system consists of the main engine cart control box, electric hoist control box, overload limiter, break fire limiter, travel switch, remote control, collector, seamless sliding contact line, drop wheel, tow cable, wire drawing, rope buckles, flange bolts and other accessories;

In addition to the above configurations, Our Crane is Fitted with Advanced Safety Features, Including a load limit switch, overloading proposition, and door interlock. Hat The Crane Stops Working Immediaately When it reaches ites load capacity, this preventing academents and damages.

4. Applicable Environment:

Single Girder overhead stacker crane are widely used in workshops, factories, warehouses, stockyards, industrial and mining enterprises, iron and steel chemicals, railway transportation, ports and other occasions to lift goods.

This type of overhead crane is specially created to cater to a broad range of material-handling needs, and it is widely used in various industries, including construction, manufacturing, and mining.

10 ton Overhead Crane for sale
