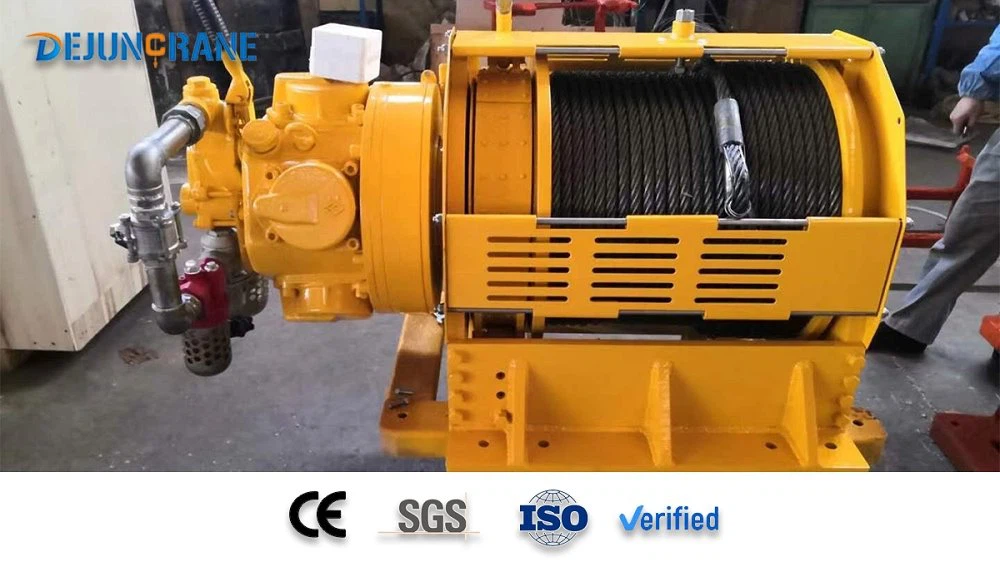

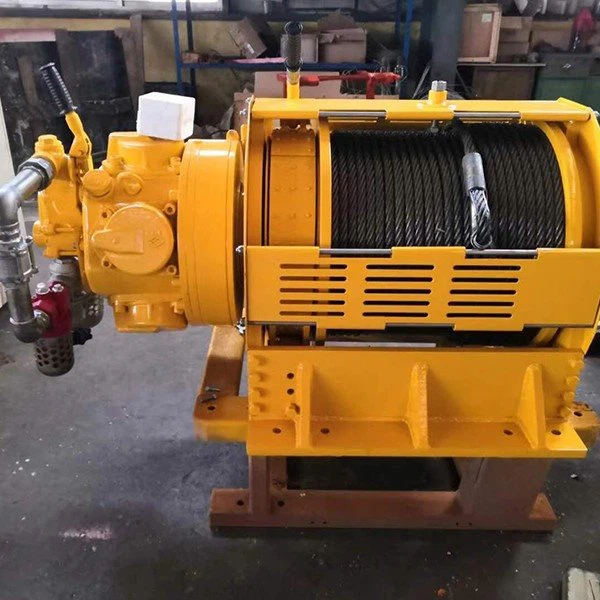

5 Ton Pneumatic Air Winch
The pneumatic winch is a winch that uses the compressed gas provided by the air compressor as the power source.
Compared with the traditional electric winch, the pneumatic winch has the characteristics of explosion-proof, dust-proof and anti-liquid splash, and is more suitable for working in harsh environments, so the pneumatic winch is widely used in ships, oil exploration, mining and electric power, etc. industry.
- Fast Delievery
- Quality Assurance
- 24/7 Customer Service
Product Introduction
1. Product Introduction:
The 5-ton pneumatic air winch is a winch that uses the compressed gas provided by the air compressor as a power source.
Compared with the traditional electric winch, the pneumatic winch has the characteristics of an explosion-proof, dustproof, anti-liquid splash, and is more suitable for working in harsh environments, so the pneumatic winch is widely used in ships, oil exploration, mining, electric power, and other industries.
2. Parameters:
Rated lifting force | kn | 5~3200 |
Lifting speed |
| 0~48 stepless speed |
Steel rope diameter | mm | φ10-11mm |
Wire capacity (D=10mm) | m | 10~1000 |
Overall dimensions | mm | 930×810×910 |
Pneumatic Motor |
| Customized |
Break type |
| Built-in entire disc CAAB + Band hand break |
Security measures |
| Ergency stop device |
Barely able to brake | ||
Limit Switches | ||
Mergency Lowering | ||
Over load protection device | ||
Slack Line Detector | ||
… |
3. Component:
An air winch is composed of an air motor, reducer, brake, clutch, drum, overload protection device, and control valve.
4. Advantage:
① Light weight and compact design
② Low noise
③ Continuously variable speed and precise positioning
④ Pneumatic triplex and silencer
⑤ Can be started with load
⑥ Strong practicability, suitable for harsh environments such as moisture, rain and snow
5. Applicable Environment:
Pneumatic winches are widely used in many fields because of their high stability and strong load capacity.
The pneumatic winch is suitable for the exploration and development of oil fields (land, ocean), natural gas, coal, metals, and other mining industries, as well as Marine exploration, shipbuilding, and other industries.
In underground mines and underground projects, pneumatic winches It is also widely used because it does not spread dust and other particles into the air, avoiding environmental pollution and respiratory damage to the operator.
6. Operation and maintenance：
① Can not arbitrarily remove the parts of the tool after the operation, in addition to affecting the safety of customers will also cause damage to the tool.
② If the tool is slightly faulty or can not reach the original function, and can not continue to be used, check immediately. Check and maintain tools regularly (about once a week), add Grease to bearings and other rotating parts, and add oil to air motor parts.
③ Use all kinds of tools, and be sure to follow all kinds of safety regulations and instructions to operate.
④ To choose the appropriate tools to work, the tool is too large and easy to cause work damage, the tool is too small and easy to cause tool damage.
⑤ The intake pressure at the tool entrance (non-air compressor air pressure) is generally 90PSIG(6.2Kg/cm^2), too high, and too low is harmful to the performance and life of the tool.
7. Matters needing attention
In order to ensure the safety of use, the breaking force ofthe wire rope equipped with the pneumatic winch is generally about 5 times the load bearing capacity.
In addition, pneumatic components (air filter, air oiler, air pressure regulator) need to be installed during use, and the air oiler must be installed in front of the air inlet of the body.
8. Protective measures
The winch can realize two control forms: local operation and remote control operation.
Both control forms must have slack rope protection, overload protection, limit protection, emergency stop protection, air braking, safety release, and other multiple safety protection measures;
① Loose rope protection: When the person or object is in contact with the support surface, the sling continues to fall a short distance, the system will automatically stop the sling fall, so as not to hurt people or objects;
② overload protection: When the load exceeds the rated load or set load, the winch will not overload;
③ Limit protection: The control system is equipped with an upper and lower limit device. When the winch rises or the lower part exceeds the set upper and lower position, the winch will stop running to avoid injury;
④ Emergency stop protection: When the operation is out of control or in other emergency situations, you can quickly press the "emergency stop button" to interrupt the gas supply and avoid accidents.
After the Stop button is pressed, it has the self-locking function. Even if it pops off accidentally, it can't restore the gas supply. Only after pressing the "start button", the normal gas supply can be restored;
⑤ Air brake (built-in wet air brake): When the gas supply system is interrupted due to a pipe burst or other reasons, the winch will automatically brake to avoid personal injury or other losses;
⑥ Safe release function: that is, when the winch stops working unexpectedly, it should be able to lower the person or object carried to a safe position.
