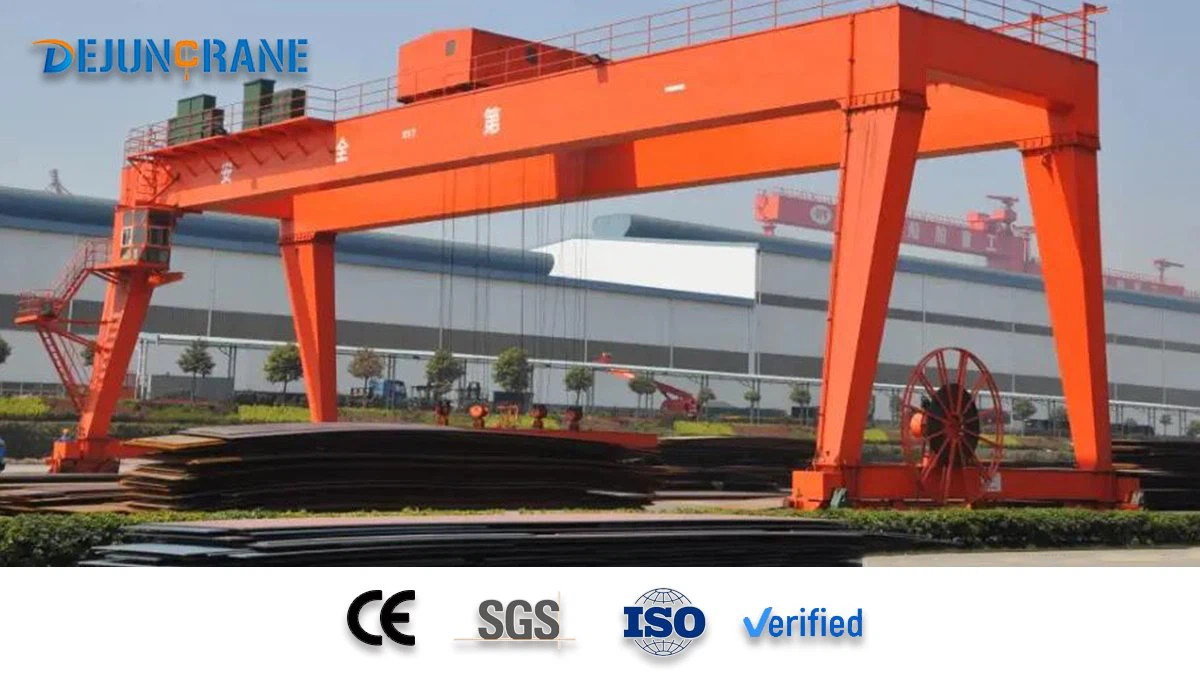

10 Ton Double Beam Gantry Crane With Rotating Electromagnetic Hanging Beam
10 ton Double Beam Gantry Cranes with Rotating Electromagnetic Hanging Beam are mainly used in continuous casting billets, continuous rolling workshops or finished product warehouses.
- Fast Delievery
- Quality Assurance
- 24/7 Customer Service
Product Introduction
10 ton Double Beam Gantry Cranes with Rotating Electromagnetic Hanging Beam are mainly used in continuous casting billets, continuous rolling workshops or finished product warehouses. The lifting capacity includes the weight of the hanging beam and the electromagnet, the hanging beam direction is divided into two types: parallel to the main beam and vertical to the main beam. And an electromagnetic sucker is installed under the hanging beam, the material handling work is completed by the electromagnetic chuck, the crane is suitable for steel mills, used for handling steel plates, scraps, etc. The working environment temperature is -25℃~+40℃. It is allowed to work in an environment free of fire, danger and corrosive substances, Lifting and transporting molten metal, toxic, flammable and explosive items is prohibited. The working level can reach A3-A8, if you need special environmental work, you can contact us to explain the situation and customize non-standard design.
2. Parameters:
The parameters of the 10 ton Double Beam Gantry Cranes With Rotating Electromagnetic Hanging Beam are designed according to the lifting items and lifting conditions described by the customer, and it is necessary to communicate with us about the relevant product requirements.
Lifting weight(t) | 5+5 | 7.5+7.5 | 10+10 | 16+16 | 20+20 | |||||||||||||
Span(m) customized | 10.5 13.5 16.5 19.5 22.5 25.5 28.5 31.5 | |||||||||||||||||
Max. lifting height(m) | 16 | 16 | 12 | 16 | 12 | |||||||||||||
Speed | Hoisting | A6 | 13.2 | 12.5 | 13.5 | 13.6 | 11.8 | |||||||||||
A7 | 15.7 | 15.4 | 15.9 | 15.3 | 15.22 | |||||||||||||
Travelling of crab | 43.8 | 44.8 | 45 | 43 | 38.9 | |||||||||||||
Travelling of trolley | A6 | 115.6 | 116.8 | 112.5 | 112.5 | 101.4 | 113 | 102.5 | 102.4 | 102.9 | 86.8 | 86.6 | 87.3 | |||||
A7 | 119 | 119.3 | 114.9 | 114.9 | 10.6 | 134.5 | 119.6 | 119 | 98 | 119.2 | ||||||||
Electric current | Three-phase AC 380V 50Hz | |||||||||||||||||
3. Component:

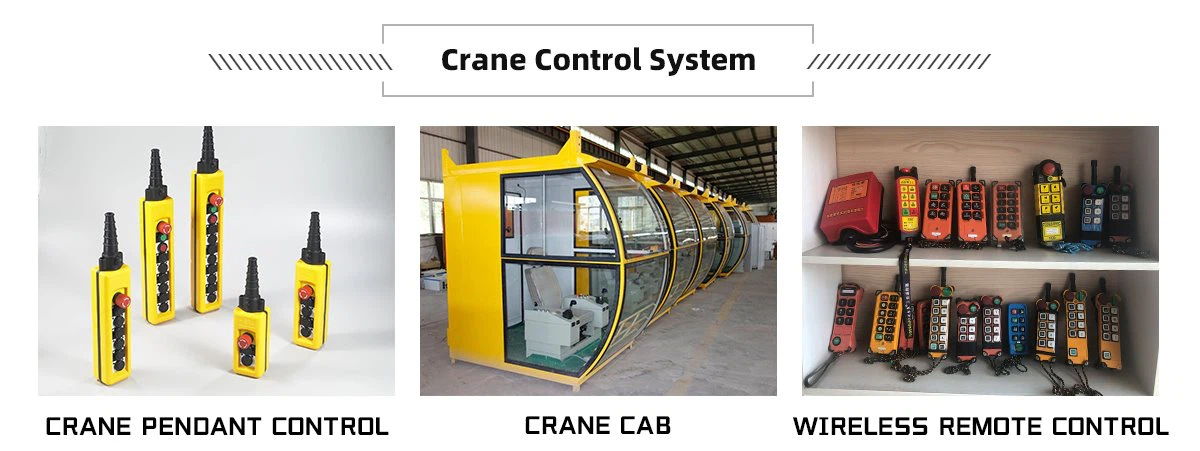

The electromagnetic hanging beam crane is mainly composed of a box-shaped gantry, a lifting mechanism, a cart operating mechanism, a driver's cab and an electrical control system, and is equipped with a power failure magnetic protection system.
The steel structure is the same as the electromagnetic gantry crane, the main beam adopts double main beam rectangular section, and Welded from sheet metal into rectangular cross-section, the main beam is provided with a diaphragm and angle steel to prevent the main beam from being unstable. There are rib plates under the laying track, and the track is laid flat on the main beam for the trolley to run; the hanging beam is parallel or perpendicular to the main beam, and one end of the wire rope is fixed by an anti-rotation screw.

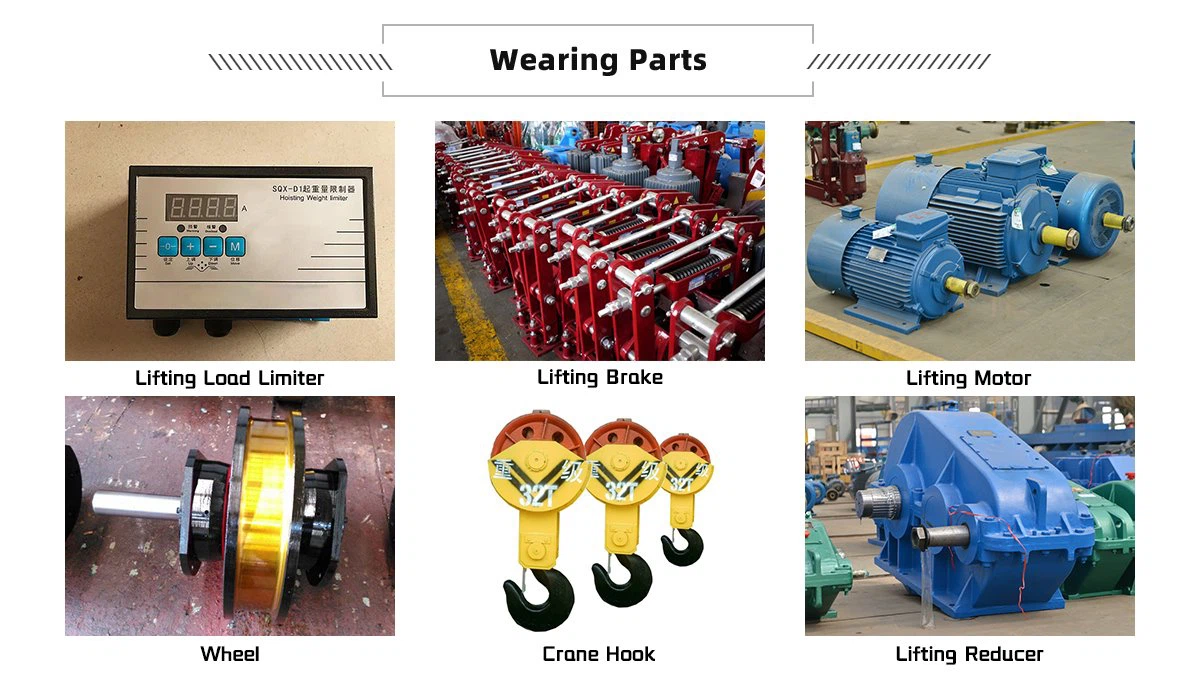

The hoisting mechanism is composed of drums, reducers, brakes, motors, couplings, compensation shafts, wire ropes, hooks and other components. The running mechanism adopts centralized drive, and the drive is mainly composed of main, driven wheel group, three-in-one reducer and other components.
4. Applicable Environment:

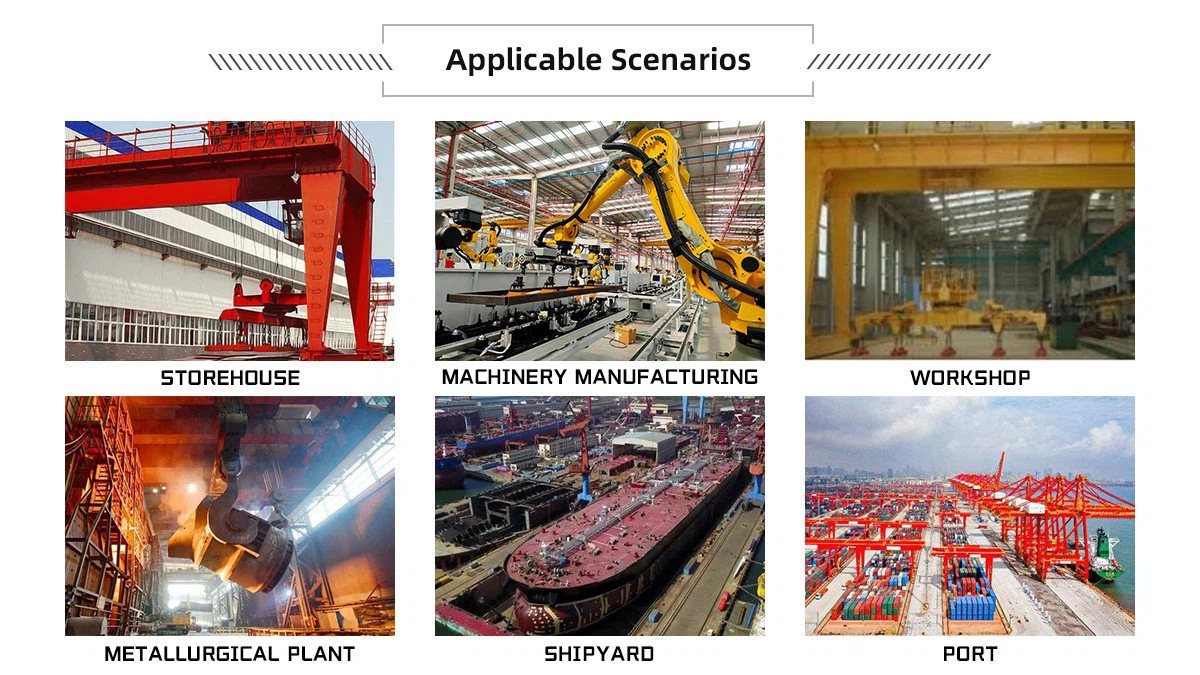

Electromagnetic hanging beam cranes are used in production lines in continuous rolling workshops, The pump steel plate, billet, section steel, etc. are transported from the roller table to the stacking table, Loading and unloading vehicles in the finished product warehouse or carrying out stacking operations, The temperature of the billet being transported is generally below 650°C.
5. How to operate?

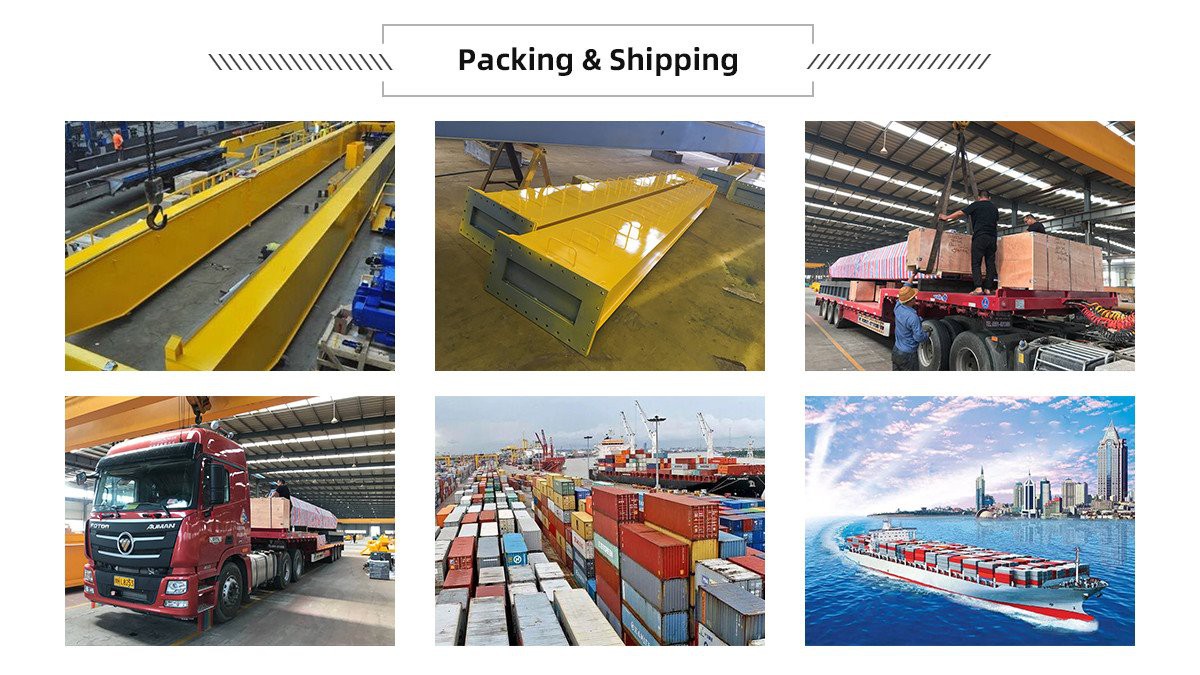

6. Transportation:
7. Operational Requirements
(1) After lifting heavy objects, it is strictly forbidden for the electromagnetic hoist to pass over the head;
(2) When the power is off, the material must be close to the parking surface, and long-distance dropping is prohibited;
(3) In addition to insisting on the "ten-no-lift" of the hook, the materials that tilt the electro-magnetic disk and the materials mixed with non-ferrous metals shall not be lifted and transported;
(4) When approaching the ascending limiter, approaching the vehicle gear or encountering the storage crane, the speed should be slow. It is not allowed to use reverse or gear to replace the brake, and the limiter to replace the parking switch.
