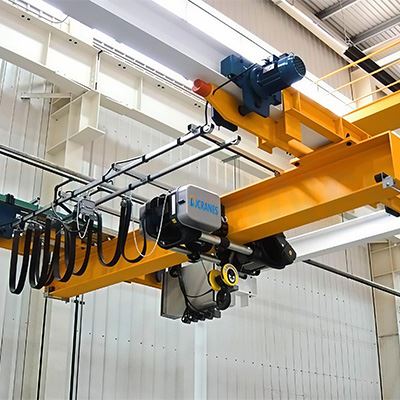

HD Model European Single Girder Overhead Crane

HD Model European Single Girder Overhead Crane

Loading Capacity: 5-50 tons (can be customized)

Span: 10-32 meters (can be customized)

Lifting Height: 6-12 meters (can be customized

Working System: A5

Fast Delievery
Quality Assurance
24/7 Customer Service

Product Introduction

The HD-type European-style single-girder overhead crane is a high-end lifting device designed to European FEM standards. Characterized by lightweight construction, low wheel pressure, low headroom, and high rigidity, it effectively reduces its own weight and the load on the factory building while ensuring structural strength and rigidity. Our European-style single-beam overhead crane offers high efficiency and energy conservation, an optimized structure, smooth operation, precise positioning, safety and reliability, easy maintenance, and strong environmental adaptability.

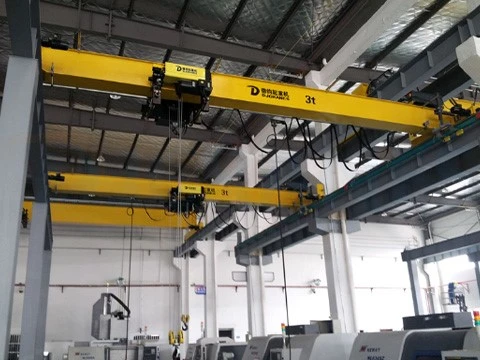

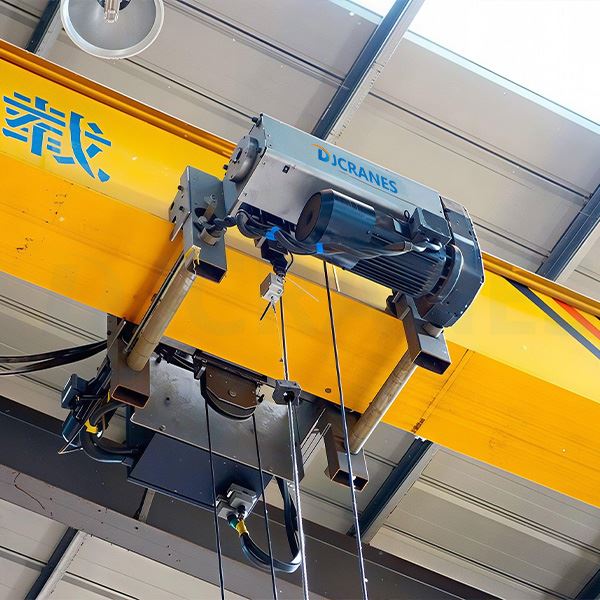

3 ton European Type Single Girder Bridge Crane

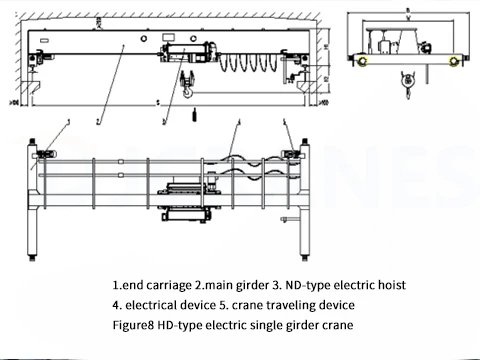

European Type Single Girder Bridge Crane Design

European-style Single Girder Overhead Crane Specifications

Item	European Single Girder Overhead Crane
Type	HD Model
Loading Capacity	5-50 tons (can be customized)
Span	10-32 meters (can be customized)
Lifting Speed	(can be customized)
Lifting Height	6-12 meters (can be customized
Trolley Speed	2-30 m/min
Crane Speed	3-40 m/min
Working System	A5
Hoist	ND Hoist
Max. Wheel Load	35-180 KN
Power	Three-phase AC 380 V 50 Hz
Payment	TT/LC

Features

The core advantages of European-style single-girder bridge cranes lie in their lightweight design, low headroom, smooth operation, and energy efficiency. The specific details are as follows:

1. Lightweight and Low Wheel Load, Reducing Factory Investment

The European-style single-girder crane features a lightweight modular design, reducing its self-weight by approximately 35% compared to traditional single-girder bridge cranes, while actually improving structural rigidity. For the same 10-ton lifting capacity, the self-weight is about 20% lower than conventional models, allowing a reduction of over 15% in foundation investment. The reduced wheel load offers better compatibility with existing factory trusses and tracks-some facilities can even install the crane without reinforcing the track beams.

2. Low Headroom Design, Maximizing Effective Lifting Height

The overall machine height is reduced by around 20%, significantly decreasing the distance between the hook and the underside of the ceiling. Under identical building conditions, this enables greater effective lifting height. For new constructions, it allows for lower roof truss elevations; for older facilities, it reduces renovation costs.

3. Frequency Converters for Smooth Operation and Precise Positioning

Standard configurations include frequency-controlled trolley and bridge drives, minimizing impact during lifting operations. Smooth running reduces cargo swinging and ensures high positioning accuracy. Optional anti-sway systems further enhance performance, making them ideal for precision assembly tasks.

4. Energy Efficiency and Low Maintenance Costs

Thanks to reduced weight and lower wheel loads, overall power consumption and energy use are minimized. Equipped with hardened gear reducers, integrated three-in-one drives, and maintenance-free hoisting mechanisms, these cranes feature low failure rates and significant long-term operational cost savings.

What Is Its Application Area?

Thanks to their compact structure, lightweight design, smooth operation, energy efficiency, and high level of automation, European single-girder cranes have been widely adopted across industrial sectors, including factories, warehouses, and logistics centers. They are particularly suitable for industries such as machinery manufacturing, metallurgy, oil and petrochemicals, ports, railways, power generation, papermaking, building materials, electronics, automotive, shipbuilding, logistics, aerospace, and new energy. Typical applications include production line material handling, equipment installation, component transportation, product assembly, warehouse stacking, and equipment maintenance and repair. They are especially well-suited for material handling in workshops and warehouses, as well as in cleanrooms and other environments with strict environmental requirements.

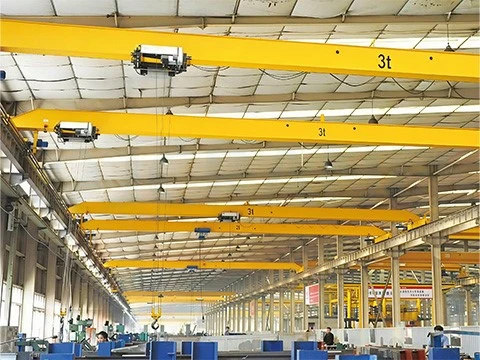

European Crane For Industrial Production

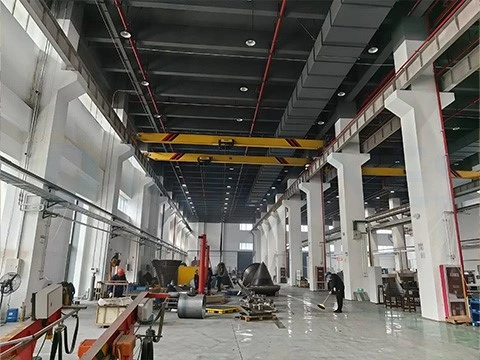

European Style Crane For Factory Use

European Single Girder Overhead Crane vs. European Single Girder Overhead Crane: What Is The Difference?

In industrial material handling, choosing the suitable type of crane directly impacts production efficiency and operating costs. single-girder and double-girder European overhead cranes have key differences that lie in structure, performance, and application suitability.

1. European type single-girder cranes emphasize "lightweight and economical" design. Composed of only one main beam and end beams, they weigh 15%–30% less than double-girder models, thereby reducing structural load on factory buildings. Their hoisting mechanism typically uses an electric hoist suspended from the I-beam track, resulting in a simple structure and low maintenance costs. In terms of performance, single-girder cranes generally support lifting capacities of up to 20 tons and spans under 10 meters, making them ideal for infrequent lifting tasks in small- to medium-sized enterprises, such as light component handling or loading/unloading of medium-sized goods in workshops, warehouses, or logistics centers.

2. European style double beam bridge cranes stand out for their "high load capacity and superior stability." Featuring two parallel main beams forming a robust frame, they typically employ winch-based hoisting systems that run along tracks above the beams, offering far greater load-bearing capacity and rigidity than single-girder models, with maximum capacities reaching hundreds of tons. These cranes are suited for complex, high-frequency, heavy-load operations involving large spans, such as transporting heavy steel ingots in metallurgical plants, handling large containers at ports, or installing equipment in shipyards. They can also be equipped with dual hoisting systems-primary and auxiliary-to accommodate both slow, heavy-duty operations and fast, light-load tasks.

How To Choose?

The key selection principle is "matching needs": if the workload is light, budget is limited, and space is constrained, single-girder cranes offer the best cost-effectiveness. However, for heavy-duty, high-frequency, and large-span operations, the stability and load capacity of double-girder cranes ensure long-term efficient operation and help reduce lifecycle costs.

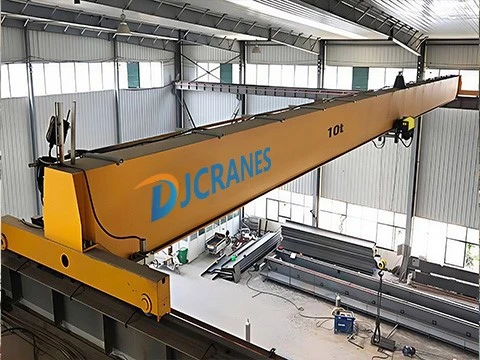

10ton European Single Girder Overhead Crane

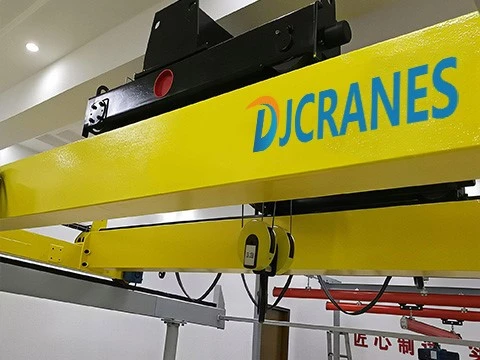

European Type Double Beam Overhead Crane

Finally Words

In summary, the installation of the HD-type European-style single-girder bridge crane is a systematic process; it must be executed in strict accordance with relevant standards and the manufacturer's instructions to ensure the equipment operates safely and reliably over the long term. Dejun have more than 30 years in crane filed, we have enough confidence to provide the top quality crane and suitable solution. For more details and a quotation, please feel free to contact us!
