20 Ton Single Girder Overhead Travelling Crane with European Wire Rope Hoist

1. Product Introduction:

20 ton Single Girder Overhead Travelling Crane with European Wire Rope Hoist is a general purpose crane, used in machinery manufacturing, assembly, maintenance, power plants, warehouses and other places. It is a light and small crane that runs on rails. Its advantage over traditional single girder overhead cranes is that, under the same plant conditions, the installation of European Hoists can increase the lifting height. Its frequency conversion operation is more stable, and the maintenance cycle is long, which is conducive to improving work efficiency and low noise. The Working Class can reach A5-A6.

This crane is equipped with European wire rope hoist, which is known for its robustness and durability. With a maximum lifting capacity of 100 tons, this crane is ideal for loading and unloading cargo from trucks, moving large machinery or equipment in a production facility or carrying out maintenance tasks at industrial sites.

2. Parameters:

3. Component:

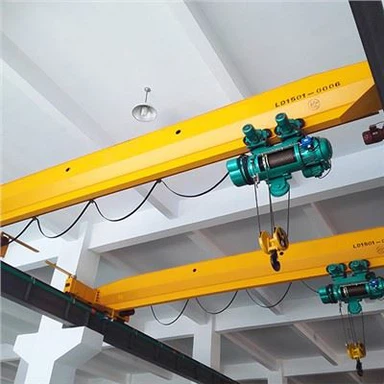

Single Girder Overhead Crane is generally composed of bridge frame (also known as main girder), electric hoist, end beam, cart operating mechanism, electrical control system, trolley conductive device, crane main power conductive device (main slide line) and other parts.

The main beam mostly adopts the combined section of steel plate and steel plate.

The cart running mechanism consists of two motors, two reducers, and four traveling wheels (two active and two driven) installed on both sides of the end beam;

The hoisting mechanism (European Style Wire Rope Hoist) adopts new technology and components to ensure high performance and compact structure, expand the operating range, high utilization rate, and small blind area, which can greatly reduce the requirements for the height of the workshop.

In terms of safety, this crane is designed to meet the highest international standards. It is equipped with advanced safety features such as overload protection devices, anti-collision systems, and limit switches that make the crane safer to operate. Additionally, it is designed to minimize the risk of accidents, making it an excellent choice for industrial and manufacturing applications.

4. Applicable Environment:

European Overhead Travelling Crane is an important tool and equipment for realizing mechanization and automation of the production process in modern industrial production and lifting transportation. Therefore, European Travelling Cranes are widely used in indoor and outdoor industrial and mining enterprises, steel and chemical industries, railway transportation, ports and terminals, logistics turnover and other departments and places.

5. How to buy European Overhead Traveling Crane?

If you want to purchase this crane, please provide the following basic parameters. The basic parameters of the European Overhead Traveling Crane include:

① Rated lifting capacity. When there are main and auxiliary hooks, the rated lifting capacity is expressed as a fraction, the numerator represents the lifting capacity of the main hook, and the denominator represents the lifting capacity of the auxiliary hook.

② span. Also called span, it refers to the distance between two parallel tracks on which the crane travels. The span of the crane is generally 1.5m smaller than the span of the workshop. The span is divided into one level every 3m, from 10.5m to 31.5m, and the span greater than 31.5m is a non-standard span.

③ Speed. The speed is determined according to the busyness of the crane. The speed for light work is lower and the speed for heavy work is faster. If the lifting weight is small, the speed can be faster. If the lifting weight is large, the speed should be slowed down. Otherwise, it will be detrimental to safety.

The speed of general bridge crane includes four aspects:

Cart speed. There are three moving speeds of the cart: 80, 100, and 120m/min;

Car speed. The moving speed of the car is generally 40m/min;

Hook lifting speed. Generally 8-20m/min;

Lifting height. The standard lifting height of the hook is 12m, and each increase of 2m is a level until 32m.

6. Wearing Parts:

The wearing parts of Single Girder Overhead Travelling Crane include travel limiters, contactors, and brake rings.

7. How to operate an Overhead Travelling Crane?

The Overhead Travelling Crane has one type of operation on the ground;

There are two types of ground operation: wired handle operation and wireless remote control operation;

If u want know more about the Control Method, please click "How to Choose the operation mode of the Overhead Crane".

8. Why choose us?

Focus on Crane Customization.

Exports to more than 120 countries.

......(Please Click Here To Learn More)

The Single Girder Overhead Travelling Crane is an ideal choice for any industrial and manufacturing application that requires safe and efficient material handling and transportation. It is a smart investment that can help to improve efficiency, increase productivity, and reduce the overall cost of operations. With its advanced features, superior performance, and exceptional safety standards, this crane is a must-have for any production or manufacturing facility.
