Mobile Bridge Crane

Mobile Bridge Crane

The mobile bridge crane is an important tool and equipment to realize the mechanization and automation of the production process in modern industrial production and lifting transportation. be widely used.


With the development of my country's manufacturing industry, more and more bridge cranes are used in industrial production. Cranes are used in the handling of heavy objects in factories, loading and unloading of machine tools, loading and unloading parts, fixed-point work on the assembly line, etc. , The number of cranes is the largest. Small-tonnage cranes are used in large and small factories. Small-tonnage bridge cranes are widely used for lifting light workpieces and occupy a very important position in the world's machinery industry.

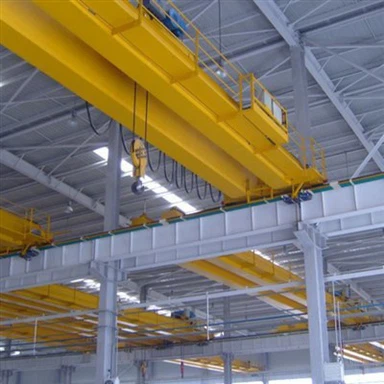

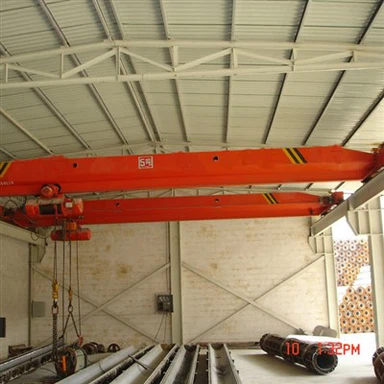

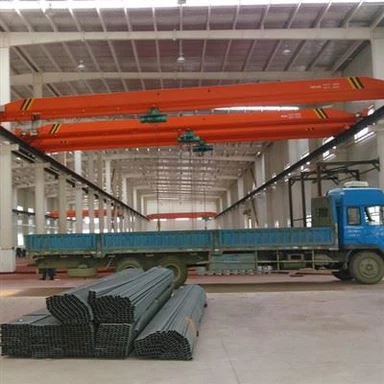

A bridge-type crane whose bridge runs on elevated tracks, also known as a crane, mobile bridge crane is a crane with relatively stable working performance and high work efficiency. The main contents include bridge, hoisting hoist, lifting trolley, Several parts such as electrical equipment and driver's cab.


The bridge frame of the bridge crane runs longitudinally along the rails laid on the elevated sides on both sides, and the hoisting trolley runs horizontally along the rails laid on the bridge frame, forming a rectangular working range, which can make full use of the space under the bridge frame for hoisting and transporting materials. Hindered by ground equipment, this crane is widely used in indoor and outdoor warehouses, factories, docks and open storage yards.


Crane Features


① Hoisting machinery usually has a huge metal structure and a relatively complex mechanical structure, which can complete one lifting, lowering or several horizontal movements. During the operation process, there are often several movements in different directions at the same time, which is technically difficult.


② The materials to be hoisted are various, and the load is also variable. The weight ranges from dozens of tons, even hundreds of thousands of tons, and the weight ranges from tens of kilograms; the length is tens of meters, the short is less than 1m; the shape is irregular, There are also granular, hot-melt and flammable and explosive products, which make the lifting work complicated and dangerous.


③ Most of the crane equipment needs to operate in a large range, and there are steel rails, steel wheels or tire crawlers, which have a large space for movement and a large danger surface.


④ There are many exposed moving parts, and they are often in direct contact with lifting personnel (such as hooks and ropes), and there are many risk factors.


⑤ The working environment is complex. There are lifting equipment in operation in industrial and mining enterprises, port terminals, construction sites and other places. The operation will also encounter dangerous factors such as high temperature, high pressure, flammability, explosion, power transmission lines, and strong magnetic field. These unfavorable Conditions can be very dangerous to people and equipment.


⑥ Operations often require human cooperation, which is relatively difficult. Operators and commanders are required to cooperate, cooperate and take care of each other skillfully. Operators should have the ability to deal with emergencies on site. .


The transmission mode of the mobile bridge crane operating mechanism


Mainly divided into centralized drive and separate drive. Concentrated drive is divided into two types: fast (high speed) and slow (low speed).


The high-speed centrally driven cart running mechanism is directly connected with the coupling and transmission shaft by the motor through the brake wheel, and the reducer is at both ends of the main beam walking platform. The speed of the transmission shaft of this operating mechanism is relatively high, the transmission torque is small, and the size of the transmission shaft and shafting parts is also small, and the weight of the transmission mechanism is light. The characteristic of this transmission mode is that the speed of the transmission shaft is low, which is relatively safe, but the torque of the transmission shaft is large, so some parts are larger in size, which makes the whole mechanism heavier.


Crane Working Process


In the starting state, the control of various equipment should be controlled according to the button input on the operation panel. When the elevator starts and stops, it controls the operation of the electromagnetic brake by detecting the output frequency of the frequency converter. The working process is as follows.


① Turn on the power and start the system.


② Press the running button of the cart to start the cart, and change the speed of the cart through the speed and deceleration buttons of the overall block diagram of the electrical control system in Figure 9-5.


③ Press the trolley running button to start the trolley, and change the speed of the trolley through the acceleration and deceleration buttons.


④ Press the elevator running button, the elevator starts, and change the speed of the elevator through the acceleration and deceleration buttons; when the heavy object is required to hover in mid-air, reduce the output frequency of the inverter until the set value, the frequency stops falling, start the electromagnetic brake, and the heavy Catch the object to prevent the phenomenon of hook slipping: when the heavy object needs to rise or fall from mid-air, increase the output frequency of the inverter. The output frequency of the converter continues to increase to the desired value.
