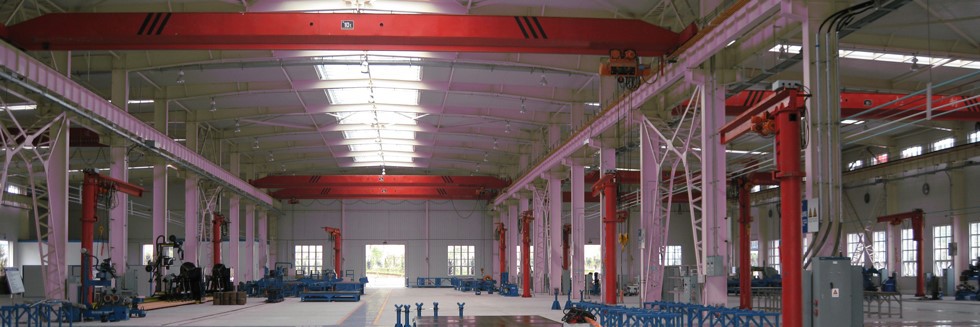

2 Ton Bridge Crane

The lifting mechanism of this 2 ton bridge crane consists of a reducer, a drum device, a conical motor and a hook, which are fixed on the trolley frame. This hoisting mechanism is installed in the middle of the main engine, and it utilizes the wire rope wound on the reel to lift and lower the weight through the hook device and the fixed pulley. The reduction mechanism adopts a three-stage external tooth helical gear transmission mechanism, in which the gear and the gear shaft are made of high-strength alloy steel and have been heat-treated to have high strength and good wear resistance. The transmission shaft is supported by rolling bearings, and the gears are sealed in the reduction box and have self-lubricating function.

Features:

1. The lifting motor adopts a combination of motor and brake and a conical rotor brake motor, and the motor works according to the principle of brake rotor.
2. The brake wheel doubles as the fan wheel, the motor has good heat dissipation, and the brake ring is made of rubber resin, which has the advantages of wear resistance, durability and reliability.
3. This 2 ton bridge crane has a scientific and rigorous structural design, aiming to ensure the best performance and efficiency while reducing the difficulty of operation.
4. This crane has multiple safety features, and we have adopted the most stringent design requirements, just to reduce the risk of worker injury.

Why are the requirements for lifting machinery so strict?

1. Overhead cranes usually have huge structures and relatively complex mechanisms. During the operation, the operator often has to operate several movements in different directions at the same time, which is technically difficult.

2. The crane can lift a wide variety of heavy objects with variable loads. Some heavy objects weigh hundreds of tons, are large and irregular, and there are loose particles, hot melt adhesives, flammable and explosive dangerous goods, etc., which make the lifting process complicated and dangerous.

3. The crane needs to be operated in a larger range and has a larger space for movement. Once an accident occurs, the scope of the impact will be even greater.

4. Some hoisting machinery (only refers to construction elevators, etc.) need to carry people directly for lifting movement, and its reliability directly affects personal safety.

5. There are many exposed moving parts of the crane, and they are often in direct contact with operators, so there are many potential accident risk factors.

6. The working environment is complex. The operation of cranes involves enterprises, ports, construction sites, etc., and involves environmental risk factors such as high temperature, high pressure, flammability, and explosion, which pose a threat to equipment and operators.

7. During the operation, the operation of the crane often requires the cooperation of multiple people, and the requirements for the commander, operator and hoist are relatively high.
