Light Duty Bridge Crane

Light Duty Bridge Crane

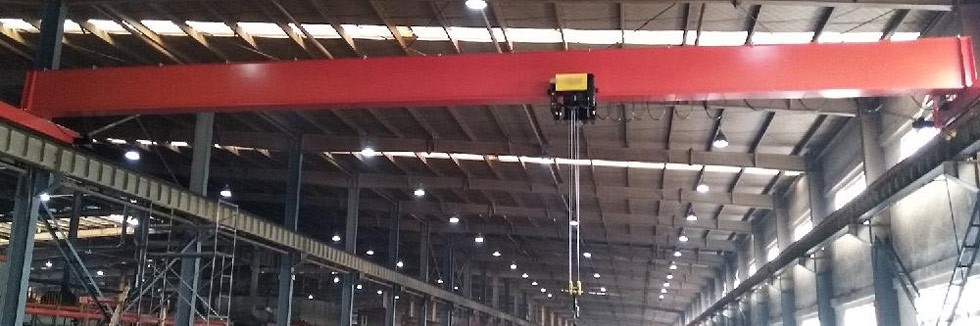

The European-style light duty bridge crane combines the concept of unique technology today, and has many effects that other equipment cannot match. It is light in weight and small in shape. Compared with traditional cranes, its hook is closer to the ground, and its rising height will be higher, which effectively increases the effective space of the factory building. It is precisely because of this The various characteristics of the small size of the crane and the small wheel pressure make the utilization rate of the delivery room space inside the enterprise more reasonable and the function better.





Features of European light duty bridge crane:



The space utilization rate distance will be smaller and lower. If European cranes are used, the layout of the workshop will fully utilize the space of the workshop, which is more reasonable. The distance between the hook and the wall will be smaller, so that the layout of the workshop will be more reasonable;



The weight of the crane is light, because it adopts the most advanced technology in China, so its dead weight is far superior to that of previous cranes, and it will save more effective space;



The operating equipment of the crane is simpler. It uses a variety of artificially synthesized scientific and technological principles to develop a product that requires a lot of manpower, saves a lot of time, and improves the safety factor a lot. More advanced, some lifting equipment has a display, which can effectively control the operation through the display, which is safe and reliable.



Now our company is equipped with a wireless remote control device to control the crane, which provides a guarantee for working in a difficult environment;



After the frequency of the crane is changed, the efficiency is improved. By adopting advanced technology, the stability of the crane is improved a lot, and the large swing of the suspended object is avoided as much as possible. The safety factor is improved, and the positioning accuracy of the reprinted object is also improved. precise. This type of crane mainly plays a great role in many horizontal lifting tasks that require high accuracy;



These European cranes are low maintenance. It should be because it adopts the green and environmental protection technology in today's society, so that the power consumption of the crane will be very low during use, and because of its good quality and low power consumption, it can reduce the losses caused by the failure of machinery and equipment, and also reduce A lot of maintenance fees are not paid.





European light duty bridge crane test



Testing standard: Execute the company's standard inspection and testing according to FEM/ISO/GB general bridge crane factory testing and quality control regulations to meet the needs of most customers;



The electric control system of each crane component is fully functional and no-load tested according to IEC standards to ensure that all electric control systems are reliable and effective, reducing the workload of on-site installation and commissioning;



Check the function of the whole vehicle through the factory no-load test, and adjust the speed and hook distance, and review it by the quality inspector;



If required, crane parts can be arranged for third-party testing to ensure that the equipment is manufactured according to technical requirements. However, a fee for this part of the test will be charged;



If required, various components of the crane can also be arranged for inspection and testing specified by the customer. Such testing and detailed testing procedures must be approved by both parties before the test. However, there is a fee for this part of the test.



Customers are welcome to be present during factory trials prior to shipping/shipment.



Lifting Weight(t)	1				2				3				5				10				20				Customized
Span(m)	7.5	10	15	18	8	13	18	27	7.5	12	18	23	8	12	15	18	8	12	15	20	10	16	19	26	Customized
Working Speed (m/min)	Customized
Model of Electric Hoist	Electric European Wire Rope Hoist Trolley
Lifting Speed(m/min)	Customized
Hoisting Height(m)	Customized
Working Class	A5-A6
Electric Current	Three-phase AC 380V 50Hz or Customized



Structural part:

All raw materials with factory certificate;
Qualification certificates for all welding tools;
The main welds have been non-destructively tested;
Size and coating inspection report;
Wheels, hooks, wire ropes and other mechanical parts;
The hook has a certificate of approval, including an ultrasonic test report;
Certificate of Conformity of Steel Wire Rope Belt;
The gears are tested without load and tested for hardness.



Advantage:



Sliding guide for electric trolley: European-style C-rail safety sliding guide is adopted to fix the cable on the built-in pulley, and its performance is safe and stable;



European-style main beam: The electric hoist is suspended on the European-style box girder, which has a large force surface. Compared with the traditional I-beam and hoist connection, the swing is small and the stability is good;



Cable: Hanging cable type flat cable is adopted, with good flexibility, fully enclosed and dust-free, not easy to wear and tear, and has a long service life.



Power indicator light: adopts two-stage light-emitting tube; cart motor: adopts soft-start motor produced by domestic lifting special motor factory, the motor has soft-start characteristics, no starting resistor, strong overload capacity, stable start and stop;



Reducer: use 6SLD tooth surface series reducer;



Bearings: Bearings are selected from well-known international and domestic manufacturers;



Secondary limit protection device: Install this device, when the light duty bridge crane is rising, when the working brake fails or the transmission parts are damaged, the control circuit of the crane is equipped with a rising limit switch to ensure that the hook can rise to the limit position. Automatically cuts off loop power.
