100 Tons Double Girder Overhead Crane
Capacity: 100 Tons
Span: 29 meters
Lifting Height: 21 meters
Cross Traveling Speed: 0.61-6.1 m/min
Crane Long Traveling Speed: 2-20 m/min
- Fast Delievery
- Quality Assurance
- 24/7 Customer Service
Product Introduction
The 100-ton double girder overhead crane is a type of overhead crane that is designed to handle loads up to 100 tons. Unlike single girder overhead cranes, this model exclusively features a double girder design, reinforced steel girders that distribute extreme weight evenly, eliminating structural strain. It's mounted on heavy-duty overhead rails and includes a trolley, a lifting hoist that moves horizontally across the girders to position loads with precision. For more details, please keep reading!

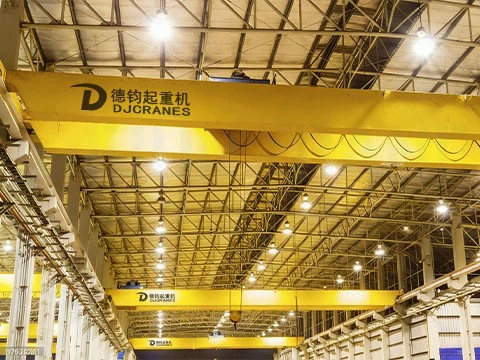

100 tons Double Girder Overhead Crane
200 tons Overhead Crane
100 tons Double Girder Overhead Crane Specifications
|
Item
|
Double Girder Bridge Crane
|
|
Lifting Capacity
|
100 tons
|
|
Lifting Height
|
21 meters (can be customized)
|
|
Span
|
29 meters (can be customized)
|
|
Main Lifting Speed
|
0.9-1.2 m/min
|
|
Cross Traveling Speed
|
0.61-6.1 m/min
|
|
Long Traveling Speed
|
2-20 m/min
|
|
Control
|
Pendent control+remote control
|
|
Working Duty
|
FEM 2m, A5/M5, class D H4
|
|
Power Supply
|
380/50/3 V/Hz/P
|
|
Long Traveling Power
|
2.2*4 KW
|
|
Cross Traveling Power
|
4*2 KW
|
|
Main Lifting Power
|
55 KW
|
|
Protection Class
|
IP54
|
|
Insulation Class
|
H
|
|
Working Temperature
|
-20℃ ~ +40℃
|
|
Starting Mode
|
Soft start
|
|
Paint
|
Three layers; 180 micron thickness(Epoxy paint)
|
|
Hook Type
|
Swiveling "C" Type with Latch (or customized)
|
|
Steel Material
|
Q235B
|
Advantages
1. High Load Capacity & Stability
With a 100-ton rated capacity, it handles the heaviest industrial loads, from 100-ton ship propellers to large transformer cores. The double girder design is critical here: it spreads weight across two structures, reducing stress on individual components and minimizing load sway. This stability prevents costly damage to both the load and the facility.
2. Precision Control for Complex Lifts
Despite its size, the crane delivers precise movement thanks to its inverter drive system. Lifting speeds range from 0.3 to 4 m/min and from 5 to 8 m/min, while the trolley and crane travel speeds are adjustable for smooth positioning. The PLC control system also includes anti-sway technology, which automatically corrects load movement, critical for tasks like aligning 100-ton machinery parts during assembly.
3. Cost-Effective for Long-Term Heavy Lifting
While the upfront cost is higher than mid-heavy cranes, the 100-ton model eliminates the need for multiple lifts or renting external heavy cranes. This saves time and long-term costs. Additionally, its energy-efficient motors and low-maintenance design cut annual operating expenses by 15–20% compared to older heavy crane models.
What Is It Used For?
-
Shipbuilding Yards: Lifting 100-ton ship engines, propellers, and hull sections during assembly; launching completed ships by moving them to slipways.
-
Steel Production Plants: Handling 100-ton steel ingots from blast furnaces to rolling mills; moving large steel coils used in automotive or construction to storage or shipping areas.
-
Power Generation: Installing 100-ton turbine generators in thermal power plants; lifting large transformers critical for electrical grid infrastructure. and positioning them in substations.
-
Offshore Wind Energy: Assembling 100-ton wind turbine nacelles, housing gearboxes and generators, and lifting tower sections onto transport vessels for offshore installation.
-
Mining Equipment Manufacturing: Building large mining machinery and moving completed equipment to testing areas.

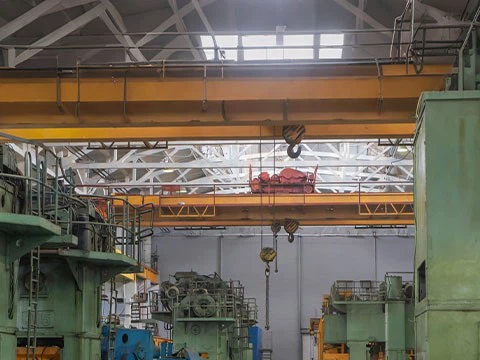

Double Girder Bridge Crane For Machinery Production

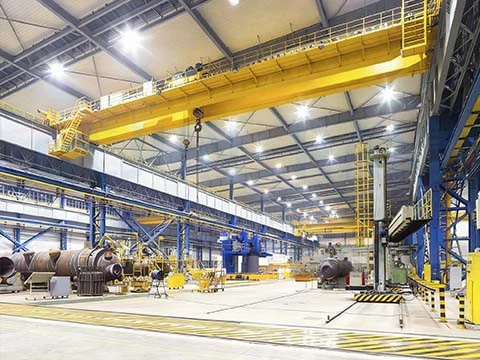

Double Beam Overhead Crane For Factory
Why Choose Us as Your Crane Manufacturer?
With 40+ years of experience building heavy-duty cranes, we're a trusted partner for global leaders in lifting crane manufacturing. Our engineering team specializes in 100-ton to 200-ton cranes. We have designed models for shipyards in South Korea, steel plants in China, and wind energy projects in Europe. In addition, our team designs custom foundations and overhead rails, manufactures the crane in our ISO 9001-certified factory, and sends certified technicians for on-site assembly. Diverse double girder overhead crane types for sale. Regarding the crane price, it depends on your requirements. If you request a personalized quote, please share your load capacity, lifting weight, and factory dimensions, and we will provide a detailed proposal with no hidden fees as soon as possible.
Double Girder Overhead Crane For Sale

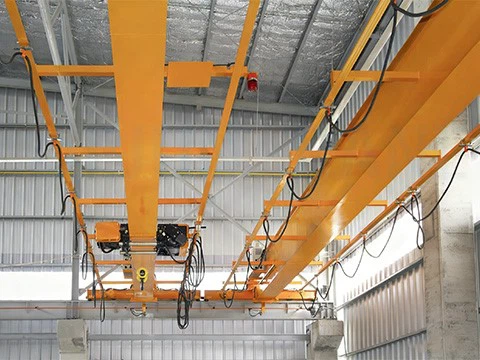

Overhead Crane Beams
Finally Words
Whether 100 tons, 200-ton, or 500-ton crane, we can all provide it for you. Besides the double girder overhead cranes, we also produce and sell single girder bridge cranes, jib cranes, gantry cranes, and so on. Welcome to contact us for any needs.
