50 Ton Overhead Crane
Lifting capacity: 50ton
Span: 24m
Lifting height: 9m
Lifting speed: 3.2/0.5m/min
Working Class: A5
Protection Class: F
- Fast Delievery
- Quality Assurance
- 24/7 Customer Service
Product Introduction
A 50 ton overhead crane is a heavy-duty lifting machine designed for industrial applications requiring precise and efficient movement of large loads. These cranes are commonly used in manufacturing plants, steel mills, construction sites, and shipyards where high-capacity lifting is essential.
Overhead crane operates on a runway system, allowing them to move horizontally along a beam while lifting and transporting heavy materials. The 50-ton capacity makes them ideal for handling massive machinery, steel coils, shipping containers, and other substantial industrial loads. It has the advantages of strong load capacity, large span, and good overall stability. Usually, the large capacity overhead crane is a double girder overhead crane, that is because double beams can support a greater weight. If you require an overhead crane with 50 ton capacity, please feel free to contact us for the latest price!
50-ton Double Girder Overhead Crane

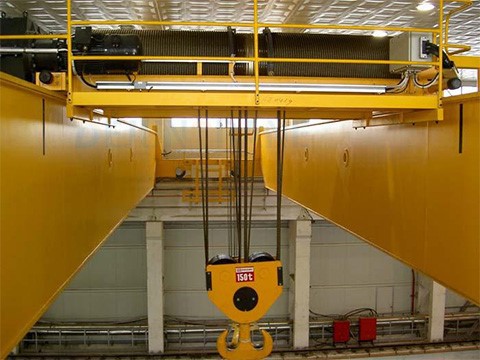

150-ton Overhead Crane
50 ton Overhead Crane Specifications
|
Item
|
50 ton Double Girder Overhead Crane
|
|
Model
|
QDX
|
|
Lifting capacity
|
50 tons
|
|
Lifting height
|
9 m
|
|
Span
|
24 m (customizable)
|
|
Trolley speed
|
0-20 m/min
|
|
Crane speed
|
0-20 m/min
|
|
Lifting speed
|
3.2/0.5 m/min
|
|
Working class
|
A5
|
|
Power supply
|
380V 60HZ 3P
|
|
Total power
|
53 KW
|
|
Protection class
|
IP54
|
|
Insulation class
|
F
|
|
Working temperature
|
-20℃ ~ +40℃
|
|
Electrics
|
|
|
Starting mode
|
Soft start
|
|
Hook type
|
Swiveling "C" Type with Latch
|
|
Wheels
|
Vacuum casting
|
|
Safety Device
|
Limit switch, Voltage Low Protect device, Ground fault protection,
Short-circuit protection, Overheating protection,
Power-off protection, Over-current protection, Overload protector, Top Quality Buffer
|
|
Payment Term
|
TT/LC
|
|
Package
|
Standard Exported Package
|
|
Delivery Time
|
30 days
|
Why Choose a 50-Ton EOT Crane?
-
Strong stability: The main beam support is arranged through the track, which can operate stably and carry heavy loads.
-
Flexible operation: It can move freely on the pre-laid track, covering a wide area.
-
Large carrying capacity: It can provide rated lifting capacities ranging from several tons to hundreds of tons.
-
Wide applicability: our 50 ton bridge crane is suitable for various lifting operation sites, both indoors and outdoors.
-
High safety: Equipped with multiple safety facilities to ensure the safe operation of lifting.
Bridge Crane Structure

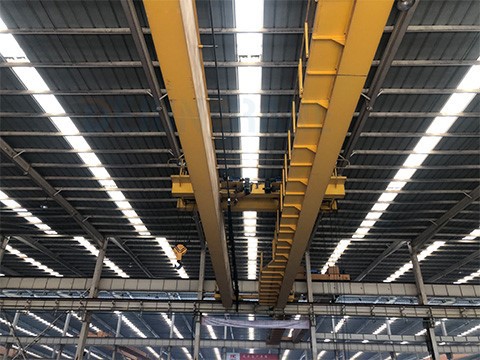

Double Girder
How Does a 50 Ton Double Beam Overhead Crane Work?
A 50-ton EOT crane operates using a combination of electric motors, hoists, and a trolley system that moves along a bridge girder. The primary functions include:
Lifting Mechanism: Powered by an electric hoist with robust wire ropes or chains.
Horizontal Movement: The trolley moves side-to-side, while the bridge travels along the runway beams.
Control System: Operated via pendant control, radio remote, or cabin control.
This setup ensures smooth and safe load handling, minimizing manual labor and increasing productivity.
Common Applications of 50 Ton Bridge Crane
Industries that benefit from these cranes include:
a. Steel & Metal Industry: handling steel coils, molds, and large metal sheets.
b. Construction & Heavy Machinery: moving pre-cast concrete blocks and structural beams.
c. Shipbuilding & Ports: loading/unloading ship components and containers.
d. Power Plants: installing and maintaining turbines and generators.
e. Automotive Manufacturing: transporting vehicle chassis and heavy machinery parts.
Overhead Crane Usage
Dejun Bridge Crane
Best 50 ton Bridge Crane For Sale
As we all know, the 50 ton overhead crane has a range of applications that benefit from its large lifting capacity, advanced operation method, and low running costs, etc. Regarding the 50 ton overhead crane price, it is mostly based on your specific requirements. In addition, the crane suppliers also influence the price and crane machine quality. Therefore, a stable crane manufacturer and supplier is very important for you. Dejun Industrial is a skilled and experienced manufacturer and supplier in China. At our company, we have advanced overhead cranes, jib cranes, and gantry cranes for your reference. Our overhead crane has been exported to over 150 countries and regions around the world. If you have any needs, please send us your requirements and we will send you the latest price! Also, you are welcome to visit our factory at any time!

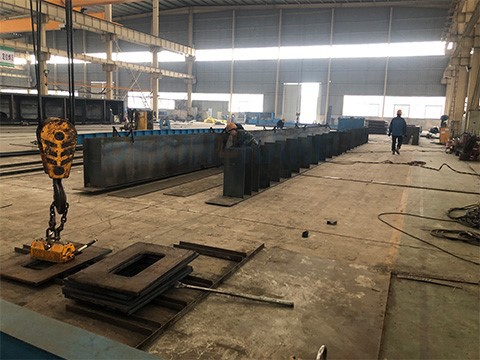

Overhead Crane Production
EOT Crane Shipped To Iraq
Finally Words
A 50 ton overhead crane is a powerful, efficient, and safe solution for heavy lifting in industrial settings. Whether in steel mills, construction sites, or shipyards, these cranes enhance productivity while minimizing risks. When selecting a crane, consider load requirements, workspace dimensions, and safety features to ensure optimal performance. With proper maintenance, a 50-ton overhead crane can serve reliably for decades.
Need a custom 50-ton overhead crane solution? Feel free to contact us for expert advice and high-quality lifting equipment!
FAQs
Q1: What is the maximum span for a 50-ton overhead crane?
A: Typically 20-30 meters, but custom spans are available.
Q2: Can a 50-ton crane be used outdoors?
A: Yes, with weather-resistant coatings and sealed components.
Q3: How much does a 50-ton overhead crane cost?
A: Prices range from USD 50,000 to USD 200,000+, depending on specifications.
Q4: What power supply is needed?
A: Most run on 3-phase AC power (380V-480V).
Q5: Can a 50-ton crane lift more than 50 tons?
A: No-overloading risks structural failure. Always adhere to rated capacity.
Q6: Are these cranes suitable for outdoor use?
A: Yes, with weatherproofing and UV-resistant coatings.
