50 Ton Double Beam Eot Crane with Grab Bucket

1. Product Introduction:

50 ton Double beam Eot Crane with Grab Bucket is a kind of hoisting machinery, which is a kind of machinery for cyclic and intermittent motion. It has automatic weighing and recording functions, the high working level is suitable for the long-term and uninterrupted work of enterprises such as waste incineration power plants.

This crane belongs to the A5-A8 working class. The rated lifting capacity includes the self-weight of the grab bucket, and the material grabbed by the grab bucket is divided into three types: light, medium and heavy. When used in the open air, with rain-proof equipment and rain-proof equipment, the total weight and wheel pressure of the crane will increase by about 5%.

2. Parameters:

3. Component:

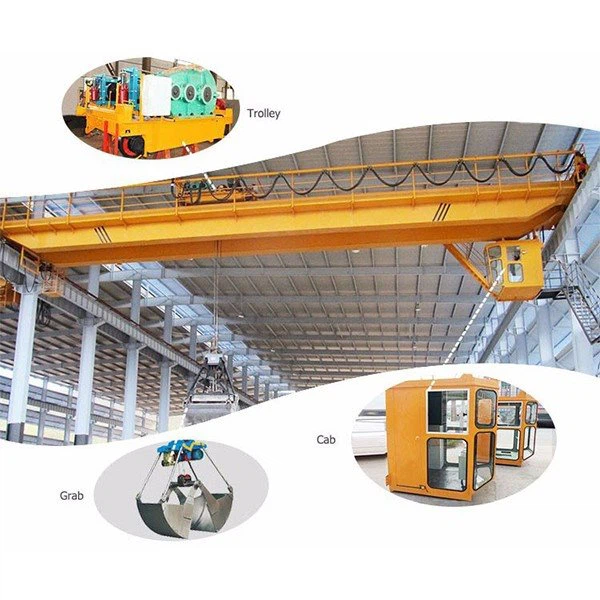

This machine belongs to the heavy-duty (A6) working system, and the lifting capacity includes the self-weight of the grab. 50 ton Double beam Eot Crane with Grab Bucket is composed of box-shaped bridge frame, cart running mechanism, trolley, grab bucket and electrical equipment, all of which are operated in the control room.

The crane's main structure is made of high-quality steel that can withstand the rigors of heavy lifting while maintaining its integrity over time. Additionally, the crane's components are treated with anti-corrosion coatings that protect against rust and other forms of damage.

The crane is equipped with safety features such as limit switches, overload sensors, emergency stop buttons, and automatic brake systems that ensure the crane operates safely and efficiently.

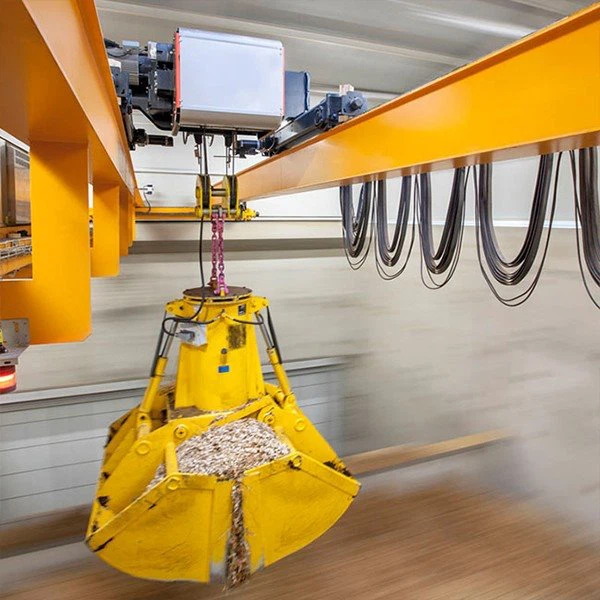

Its fetching device is a four-rope grab bucket with double drums, with simple structure and reliable operation. The grab bucket can be opened and closed at any height. When the material particles are grabbed below 100mm, the effect is good and the production efficiency is high; when the grabbed particles are larger than 200mm, a toothed grab bucket should be used.

Grab buckets are more suitable for bulk materials in a natural accumulation state. When grabbing underwater materials or special materials, it must be specially proposed in the order; when using in the open air, waterproof equipment must be provided.

4. Applicable Environment:

50 ton Double beam Eot Crane with Grab Bucket is suitable for mechanical processing and assembly workshops, metal structure workshops, mechanical maintenance workshops, metallurgy and foundry workshops and hoisting work in various warehouses, etc. Equipped with grab buckets, it is suitable for the handling of ore, limestone, slag, mineral powder, coking coal, sand and other bulk materials in fixed spans indoors or in the open air in metallurgy, cement, chemical and other industrial sectors.

5. Wearing Parts:

The wearing parts of 50 ton Double beam Eot Crane with Grab Bucket include Rope guide, Hook safety, Brake and limit switch.

6. How to operate a 50 ton Double beam Eot Crane with Grab Bucket?

The 50 ton Double beam Eot Crane with Grab Bucket has two types of operation on the ground and in the air. Aerial operation refers to cab operation.

Grab operation

(1) Grab opening operation: lower the lifting and opening and closing to the appropriate position at the same time, stop the lifting and lowering, close and continue to lower, the grab is gradually opened, and the opening and closing operation is completed.

do.

(2) Grab closing operation: Open and close the reel for lifting operation, the upper pulley block of the grab bucket does not move, and the lower pulley block moves upward until the grab teeth of the grab cross and touch each other.

The closing action of the grab bucket is completed. During the closing process, the lifting reel is properly lifted so that the lifting wire rope does not sag.

(3) Lifting and falling operation of the grab: whether the grab is open or closed, it can be operated to rise or fall. During operation, the lifting and opening and closing of the reel must be at the same time

when.

7. Transportation:

8. Why choose us?

Independently conduct over 20 technological flows.

We can offer all kinds of OEM/ODM services.

Certified by DIN, ISO, BS, CMAA, CE and other major international standards.

9. Frequently Asked Questions about 50 ton Double beam Eot Crane with Grab Bucket：

(1) Could we buy spare parts in local once they are out of work?

Of course, our main electrical parts brand is a generic brand; it's very easy to buy all the world. But if there is any difficulty, we can post to you by express, such as DHL, UPS, FEDEX, Aramex, etc.

(2) Do you provide lift tools?

Yes, we can provide any kinds of lift tools such as lift sling belt, lift clamp, grab, magnet, pulley blocks, hook, lock catch, wire rope, fiber rope, etc.

At 50 Ton Double Beam Eot Crane with Grab Bucket, we are committed to providing our customers with the best products and services possible. Contact us today to learn more about our 50 Ton Double Beam Eot Crane with Grab Bucket and how we can help meet your lifting needs.
