Single Beam Eot Crane

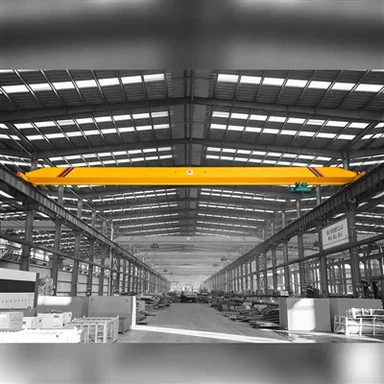

10 ton Single Girder Overhead Crane With Electric Hoist is composed of the main girder, end girder, electric wire rope hoist and operating mechanism welded by steel plate and I-beam ,the electric wire rope hoist runs along the lower flange of the main beam I-beam to complete the lifting and transportation of the items.

Send Inquiry

Fast Delievery
Quality Assurance
24/7 Customer Service

Product Introduction

1. Product Introduction:

1-32t single beam eot crane

The basic parameters of 1-32t single beam eot crane are the performance and technical and economic indicators of the lifting equipment, mainly including: crane Q(t), span L(m), lifting height H(m), movement speed u(m/min) and work level, etc., the operation and maintenance of the crane have a direct relationship with these basic parameters.

We offer customized solutions and modify our products to meet specific customer needs. Our team of experienced engineers works closely with clients to understand their requirements, and we provide expert guidance to help them make the right decision.

1-ton-2-ton-3-ton-bridge-crane

2. Parameters:

Lifting Weight(t)	1				2				3				5				10				16				Customized
Span(m)	7.5	10	15	18	8	13	18	27	7.5	12	18	23	8	12	15	18	8	12	15	20	12	19	25	28	Customized
Working Speed (m/min)	Ground 20								Ground 20								Ground20				Ground 20				Customized
Hoisting Height(m) Customized	Customized
Working Class	A4 or Customized
Electric Current	Customized

3.Precautions for use
(1) Each crane must be in an obvious place to hang the rated weight sign.

(2) During the work, no one or people are allowed to transport people with hooks on the bridge.

(3) Driving the crane is not allowed without an operating license and after drinking.

(4) The operation must be concentrated, not allowed to talk, smoke or do unrelated things.

(5) The crane should be clean; It is not allowed to leave equipment, tools, inflammable, explosive and dangerous goods in a disorderly manner.

(6) The crane is not allowed to use over load.

(7) The following circumstances are not allowed to lift: the binding is not strong; Machine overload; The signal is unclear; Cable-stayed; Something buried or frozen in the ground; There is someone on the object being hung; Inflammable goods, explosive devices and dangerous goods without safety protection measures; Overfilled liquid items; The wire rope does not meet the requirements for safe use; The lifting mechanism is faulty.

(8) When the crane is running on the line without obstacles, the hook or sling and the bottom surface of the lifting object must be more than 2m from the ground. If crossing an obstacle, it must be 0.5m higher than the obstacle.

(9) For lifting objects less than 50% of the rated lifting weight, two mechanisms are allowed to operate at the same time; Lifting objects greater than 50% of the rated lifting weight can only be operated by one mechanism.

4. Applicable Environment:

1-32t single beam eot crane are widely used in workshops, factories, warehouses, stockyards, industrial and mining enterprises, iron and steel chemicals, railway transportation, ports and other occasions to lift goods.

This type of overhead crane is specially created to cater to a broad range of material-handling needs, and it is widely used in various industries, including construction, manufacturing, and mining.

10 ton Overhead Crane for sale
