Factory Cranes

Dejun brand high quality single beam overhead factory crane is composed of four main parts: bridge frame, lifting mechanism, car operation, car operation and electrical. The trolley type wire rope electric hoist is used as the lifting mechanism. The crane assembly test shall comply with the provisions of "GB/T3695-1994", and when installing the crane, it must be installed according to the provisions of the attached drawing. When the single beam overhead factory crane is disassembled and transported and the product is installed, the connection of the end beam must be disassembled according to the drawings.

Fast Delievery
Quality Assurance
24/7 Customer Service

Product Introduction

1. Product Introduction:

We offer customized solutions and modify our products to meet specific customer needs. Our team of experienced engineers works closely with clients to understand their requirements, and we provide expert guidance to help them make the right decision.

2-ton-overhead-crane-for-sale

2. Parameters:

Lifting Weight(t)	1				2				3				5				10				16				Customized
Span(m)	7.5	10	15	18	8	13	18	27	7.5	12	18	23	8	12	15	18	8	12	15	20	12	19	25	28	Customized
Working Speed (m/min)	Ground 20								Ground 20								Ground20				Ground 20				Customized
Hoisting Height(m) Customized	Customized
Working Class	A4 or Customized
Electric Current	Customized

3. Component:

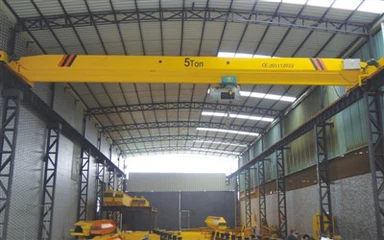

Single beam overhead factory crane consists of a main beam, two end beams, a cart running mechanism, a wire rope electric hoist, and an electrical control system;

The main frame of the bridge frame is composed of a main beam and two end beams, and the cart running mechanism is connected by high-strength bolts;

The cart running mechanism consists of two motors, two reducers, and four traveling wheels (two active and two driven) installed on both sides of the end beam; Electric wire rope hoist is composed of trolley running mechanism, hoisting mechanism and electrical system; The trolley running mechanism is composed of a motor, a reducer, a small wheel, and an electrical control system. It is installed under the main beam of the bridge machine to move left and right along the main beam, and the normal speed is 20m/min;

The hoisting mechanism (electric wire rope hoist) is composed of a motor, a reducer, a drum and a casing, a wire rope, a hook, and an electric device. It is installed under the running trolley for ascending and descending operation, and there are two forms of single-speed and double-speed;

The electrical control system consists of the main engine cart control box, electric hoist control box, overload limiter, break fire limiter, travel switch, remote control, collector, seamless sliding contact line, drop wheel, tow cable, wire drawing, rope buckles, flange bolts and other accessories;

In addition to the above configurations, Our single beam overhead factory crane is Fitted with Advanced Safety Features, Including a load limit switch, overloading proposition, and door interlock. Hat The Crane Stops Working Immediaately When it reaches ites load capacity, this preventing academents and damages.

4.Advantages:

1. Customization: Our overhead factory crane can be customized to meet the specific requirements of each business.

2. Ease of Maintenance: Our overhead factory crane is designed to be easy to maintain, requiring just a few simple procedures to keep it in excellent condition.

3. Timely Delivery: We pride ourselves on our timely delivery of products to our customers.

5. Transportation:

10 ton Overhead Crane price
