MD Electric Wire Rope Hoist Sent To Brazil

MD Electric Wire Rope Hoist Sent To Brazil

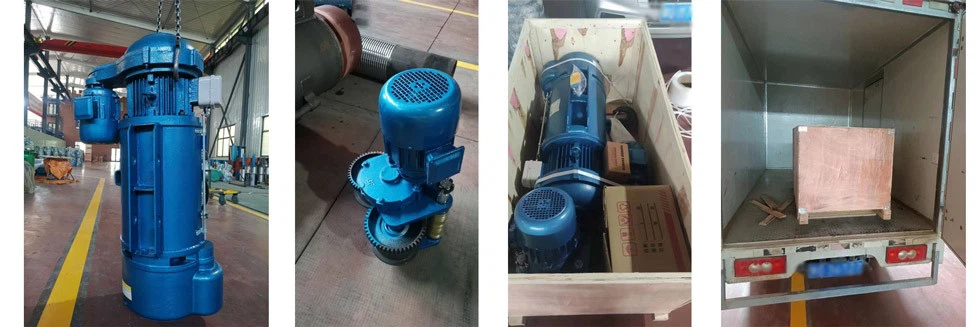

Product Name: Double Speed Electric Wire Rope Hoist


Product quantity: 1 set


Lifting weight: 5 tons


Lifting height: 9 m

Electric hoist operating conditions:

Ambient temperature: -20℃～+40℃

Work system: Intermediate JC25%

Heavy grade: JC40%

When the lifting capacity of the electric hoist of the intermediate working system is reduced by 30%, it is an electric hoist of JC40% of the heavy working system.

The electric hoist with JC40% of the heavy-duty working system is used when the work is relatively heavy, and the load is often at the rated value or requires a high safety factor. Electric hoist structure reducer: It adopts three-stage fixed-axis helical gear rotation mechanism. The gear and gear shaft are made of heat-treated alloy steel. The box body and box cover are made of high-quality cast iron, which are tightly assembled and well-sealed. The reducer is a self-contained part, which is very convenient to assemble and disassemble.

Control box: It adopts a device that can cut off the main circuit in an emergency and has a fire limiter for up and down travel protection. Ensure the safe operation of the electric hoist. The electrical components have a long service life and are reliable in use.

Wire rope: GB1102-74 (6*37+1) X-type lifting wire rope is used to ensure durability.

Cone motor: The hoisting motor adopts a conical rotor with a large starting torque to brake the asynchronous motor, and no external brake is required. The duty cycle of the motor is 25%, the motor adopts Class B or Class F insulation, and the motor protection class is IP44/IP54.

Button switch: hand operation is light and flexible, and it can be divided into two methods: wired operation and wireless remote control.

Electric hoist installation and use:

Electric hoist single-girder, bridge crane, gantry crane, and suspension crane. It can also be used for hoisting after modification. Therefore, it is an essential machine for improving labor efficiency and working conditions.
