Why European Hoist Trolley Use Cross-Limit Switches?

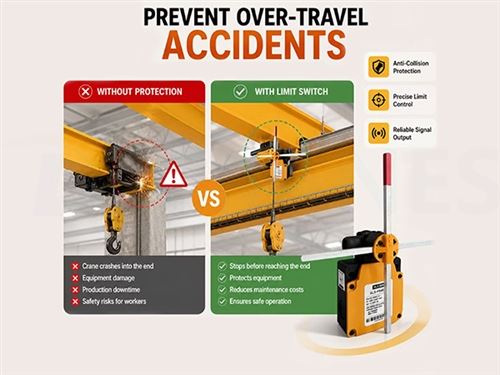

In bustling factory workshops, warehouses, and logistics centers, overhead cranes perform hundreds of back-and-forth movements every day. Throughout this process, limit switches play the critical role of issuing braking commands. If a limit switch fails, the equipment could run off its tracks, or the hoisting mechanism might fail to stop, resulting in two-blocking or hitting the top stop, leading to severe equipment damage or even safety accidents. Today, we are discussing a vital guardian of the crane's travel mechanism-the cross-limit switch- and explaining why we insist on making it a standard feature on our European-style hoist.

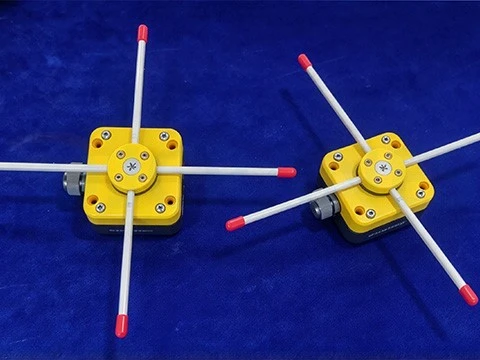

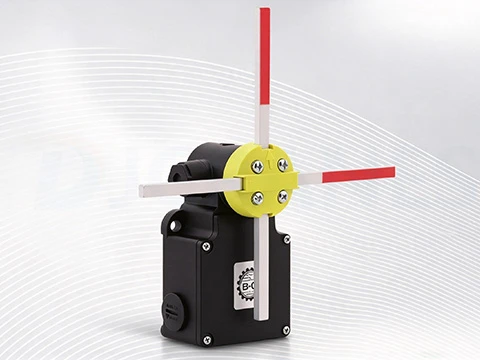

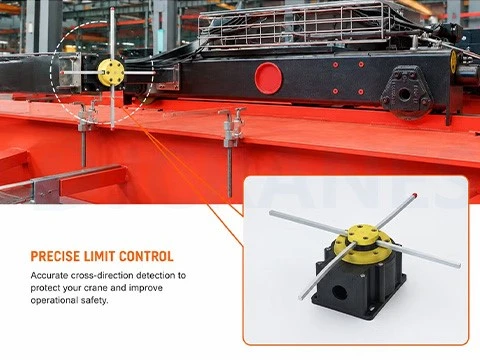

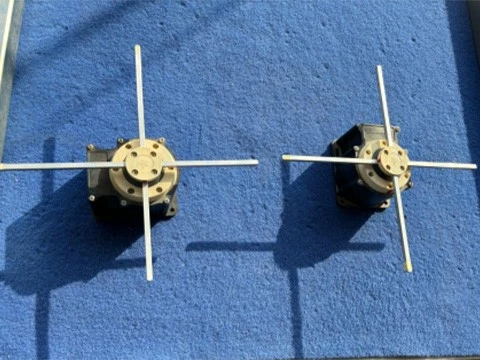

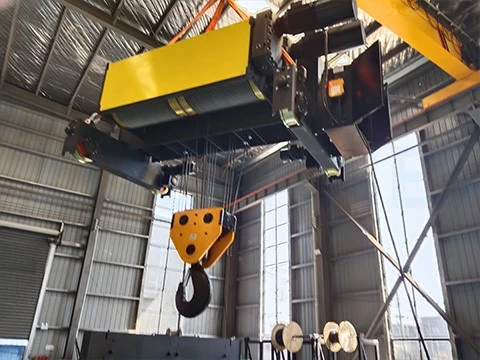

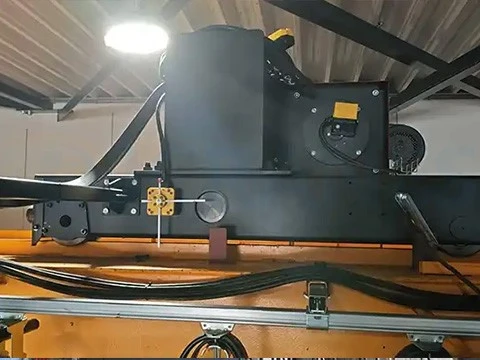

A cross-type limit switch is also known as a cross-lever limit switch or cross-style travel switch. It is a mechanically actuated limit switch. Typically installed on the travel mechanism of an overhead crane, either the bridge or the trolley, its most distinctive feature is a cross-shaped metal actuating lever. When the crane travels to the limit of its track, a striker-pre-installed at the end of the track- engages the cross-shaped lever. As the lever rotates, it drives an internal cam mechanism that forcibly triggers an internal microswitch, instantly cutting off power to the drive motor and bringing the crane to a smooth stop within a safe range. All our European-style hoist trolleys come with cross-limit switches as a standard feature. This is more than just an added component; it reflects our deep commitment to the safety of our customers' lives and assets. High-reliability cross-limit switches are included as standard-no extra cost or optional upgrades required. Our European-style hoist trolleys feature variable frequency speed regulation. Combined with the dual protection of cross-limit switches, they ensure smooth, shock-free operation and extremely precise positioning. Every trolley equipped with cross-limit switches undergoes repeated trigger tests before leaving the factory to ensure 100% operational responsiveness.

Among various types of limit switches, the cross-type limit switch is widely adopted for European-style hoist trolleys because it offers advantages that other types, such as infrared or proximity switches, cannot match:

1. Forced Disconnection for Maximum Safety: It utilizes an internal positive opening mechanism with mechanical contacts. Even if the contacts become welded together, the mechanical actuator can physically force them apart, ensuring the power is cut off-a capability electronic limit switches lack.

2. 360-Degree Omnidirectional Actuation: The cross-lever design allows for actuation from any angle across four directions. Installation and commissioning are highly convenient; precise directional alignment is not required, significantly simplifying on-site setup.

3. Strong Environmental Adaptability: Crane operating environments often involve dust, oil, or intense light. As a purely mechanical device, the cross-type limit switch is unaffected by light, dust, or electromagnetic interference. With an ingress protection rating of IP65 or higher, it is exceptionally durable.

4. Dual-Stage Protection Logic: Many cross-type limit switches contain two sets of contacts. Actuation of the first set can cut off high-speed operation or trigger a deceleration signal, while actuation of the second set cuts off the main power supply. This decelerate-then-stop dual-stage protection significantly reduces the impact and load swaying associated with sudden emergency stops.

To cut costs, some low-end, budget-friendly overhead cranes on the market often omit the cross-limit switches standard on European-style trolleys, or replace them with simple micro-limit switches.

This leads to a series of issues:

Violent Impact: Without a deceleration buffer, the power cuts off abruptly, causing the crane and suspended load to sway violently; this compromises positioning accuracy for precision materials and can even damage the wheels.

Susceptibility to Damage: Simple limit switches have a short mechanical lifespan and are prone to jamming, which can cause the equipment to overrun the track.

Maintenance Hassles: Frequent replacements are required after failure, increasing downtime and creating potential safety hazards.





In the lifting industry, safety devices should never be sacrificed for the sake of cost-cutting. A simple cross-limit switch can, at a critical moment, save equipment worth hundreds of thousands, or even priceless human lives. Choosing our European-style hoist trolley means choosing peace of mind at no extra cost. Whether for routine metal frame hoisting or high-precision mold handling, we consistently provide crane solutions featuring high safety and reliability as standard. If you are looking for safe, reliable, and robustly equipped crane machinery, please feel free to contact us. We will provide a customized solution perfectly suited to your specific operational needs!
