Canada 10 Ton Portable Gantry Crane Project
Jun 16, 2026

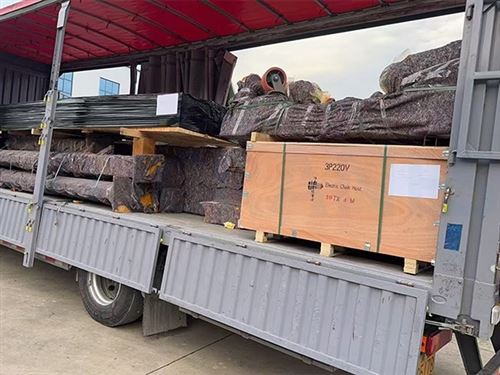

Good news! A Canadian client purchased 5 sets of portable gantry cranes from us. Last month, this client contacted us and required several lifting machines to carry heavy objects in their workshop. And they did not want to buy a very complex crane system. Instead, they needed a dependable lifting solution that could be used conveniently and maintained easily. Moreover, they explained that they required the supplier to provide crane installation service. During the communication with our sales manager and engineer, we knew the loading capacity, span, lifting height, working frequency, power supply, working environment, movement method, hoist type, installation space, and other specifications the client required. Finally, our engineer drew up a technical solution with 10 ton portbale gantry crane based on their needs. Considering the limited budget, the Canadian client ordered 5 sets of 10-ton mobile gantry cranes. And now, the cranes have finished production and have been shipped to Canada during the delivery period. As an experienced crane manufacturer and exporter in China, we also produce and sell other gantry crane types for your reference. Welcome to contact us for more details!
10 Ton Portable Gantry Crane Specifications
| Item | Portable Gantry Crane |
| Order Quantity | 5 sets |
| LiftingCapacity | 10 tons |
| LiftingHeight | 4 meters |
| TotalHeight | 5.350 meters |
| Total Span | 6.83 meters |
| Inner Span | 5.53 meters |
| Lifting Speed | 0.7-2.7 m/min |
| Cross Travel Speed | 3.6-11 m/min |
| Crane Travel Speed | 3-10 m/min |
| Power Supply | 220V 60HZ 3P |
| Hoist Type | low headroom chain hoist |
| WorkingClass | A5 |
| Protection Class | IP54 |
| WorkingTemperature | -20℃ ~+45℃ |
| Brand | Dejun |
| Payment | TT |

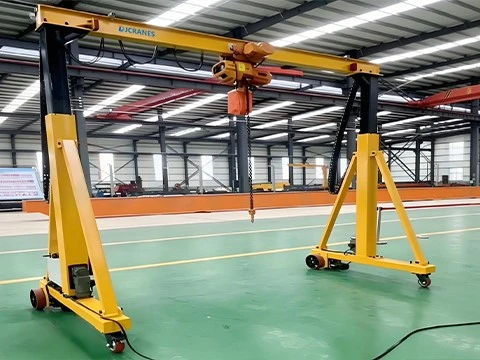

10 Ton Mobile Gantry Crane Means
A 10-ton simple gantry crane refers to medium-sized and small-sized lifting equipment with a rated lifting capacity of 10 tons, which adopts an electric hoist as the lifting mechanism and can be quickly deployed without a complex foundation. Portable gantry cranes are types of gantry cranes that can be easily moved, disassembled, and assembled. They are usually relatively lightweight and small, and suitable for different work sites. In small mechanical processing workshops, mobile gantry cranes can easily lift small mechanical parts. For example, when the single piece weighs no more than 3 tons, choosing a portable gantry crane with a lifting capacity of about 5 tons is very appropriate. In narrow warehouse aisles, the portable gantry crane with a smaller span can flexibly lift goods between the shelves on both sides of the aisle, improving work efficiency. In warehouses with multiple layers of shelves, the portable gantry crane that determines the lifting height based on the shelf height plus a certain safety margin can accurately lift the goods to the desired position. For more details, please feel free to contact us!
Design advantages of Dejun portable gantry cranes
1. Compact structure: The portable gantry crane adopts an optimized design structure, enabling it to minimize volume and weight without sacrificing performance. This allows it to be easily placed and operated in limited spaces.
2. Easy mobility: Its portability makes it convenient to transfer between different sites. Some models with quick-connect joints and foldable structures can reduce space occupation during transportation and can be transported by ordinary vehicles.
3. Flexible operation: The crane's operation is simple and flexible, meeting the needs of different working scenarios. It can efficiently complete lifting tasks in narrow spaces or in complex working environments.
How to Choose a Portable Portal Crane Suitable for Yourself?
When choosing a suitable mobile gantry crane, you should consider some factors based on your needs. Firstly, consider the lifting capacity. Determine the lifting capacity of the crane based on the weights that are frequently lifted in actual work. If the lifting capacity is too small, it may not be able to complete the tasks and may also cause damage to the crane; if it is too large, it will result in cost waste. Secondly, consider the span. The span should be determined based on the layout of the working site and the scope of the lifting operation. If the working site has limited space, the span should be selected to be smaller to ensure that the crane can be placed and operated normally. Furthermore, consider the lifting height. Consider the height at which the heavy objects need to be lifted during work. If the lifting height is insufficient, it will not be able to meet the work requirements, and if it is too high, it may increase unnecessary costs and safety risks. Also, consider the working class. The working class reflects the frequency of use and the load conditions of the crane. If the crane is used very frequently, with long working hours and large changes in the weight of the lifted objects, a higher working-class crane should be selected. In addition, consider factors related to portability. This includes whether the crane is easy to disassemble, assemble, and transport. At the same time, consider the power source of the crane, whether it is electric, hydraulic, or manual, which should be selected based on the power supply situation of the working site and operating habits. Here are some tips for portable gantry crane selection. If you want to buy a crane machine, but do not know how to choose. Please feel free to contact us, and we have various successful crane cases for your reference.
Finally Words
In conclusion, when choosing and using portable gantry cranes, one must make the selection based on one's actual needs and working environment. If you have other special needs and want to customize a portable gantry crane, we can also help you. For any questions, please feel free to contact us!
