5 Ton Single Girder Overhead Crane Project
May 09, 2026
Good news! An Uzbekistan customer purchased 4 sets of single girder overhead cranes from us. This client is a commercial agent in Uzbekistan. They have a client need to buy several overhead cranes for their warehouse. Usually, the overhead cranes can be divided into single-girder overhead cranes and double girder overhead cranes. Through long-term communication, we know that the end user is suitable to use a single girder overhead crane through our agent. After knowing their finished product weight and production frequency, we suggest them buy the single girder overhead crane with 5 ton capacity. Finally, they ordered 4 sets of 5 ton single beam overhead cranes from Dejun. Based on different loading capacities and application environments, we can supply different types of single girder bridge cranes for sale. Welcome to contact us for more details and the latest price.

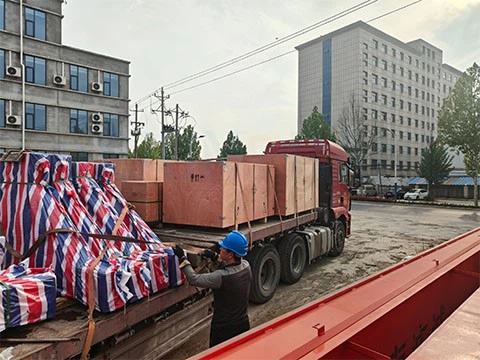

Single Girder Overhead Cranes To Uzbekistan
Single Girder Overhead Cranes Delivery
5 Ton Single Beam Girder overhead Crane Specifications
|
Item
|
Single Girder Bridge Crane
|
|
Model
|
HD Type
|
|
Lifting Capacity
|
5 tons (can be customized)
|
|
Lifting Height
|
5.6 meters (can be customized)
|
|
Span
|
9 meters (can be customized)
|
|
Crane Traveling Speed
|
3-30 m/min(VFD)
|
|
Trolley Traveling Speed
|
2-20 m/min(VFD)
|
|
Lifting Speed
|
0.8-5 m/min(VFD)
|
|
Control
|
Pendent control+Remote control
|
|
Power Supply
|
380V 50HZ 3P
|
|
Lifting Power
|
6.1 Kw
|
|
Trolley traveling Power
|
0.64 Kw
|
|
Crane traveling Power
|
0.64*2 Kw
|
|
Protection Class
|
IP55
|
|
Insulation Class
|
H Class
|
|
Working Temperature
|
-20℃ ~ +50℃
|
|
Hook Type
|
Plain 'C' type
|
|
Steel Material
|
Q235B
|
|
Electrics Brand
|
|
|
Payment
|
TT/LC
|
5 Ton Single Girder Overhead Crane Means
The 5t single-girder overhead crane is a light bridge-type lifting equipment with a rated lifting capacity of 5 tons. It is suitable for operation environments with smaller spans and moderate lifting heights. Its structure consists of a main girder, end girders, an electric hoist, and an electrical control system. It features lightweight, easy installation, and smooth operation. This equipment often uses I-beams or box girders as the main girder and is combined with CD or MD-type electric hoists to achieve lifting and horizontal movement functions. It is widely used in workshops, warehouses, assembly lines, and other scenarios. Its electrical system is equipped with safety mechanisms such as overload protection and limit control to ensure operational reliability. For more details and price, please feel free to contact us!

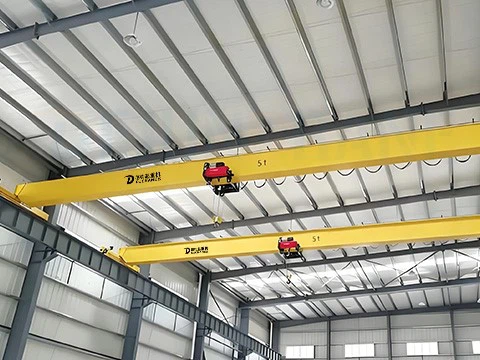

5 Ton Single Beam Overhead Cranes For Sale

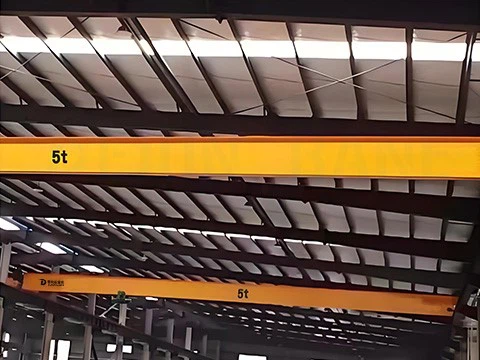

5 Tons Single Girder Bridge Crane
Why Is It So Popular?
1. High space utilization: As the main beam is directly set up on the tracks on both sides of the workshop, no additional support columns are needed, and the operation path of the equipment can cover the entire length of the workshop. Compared to ground-handling equipment, the 5t single-girder bridge crane can make full use of vertical space and ispace, especially suitable for scenarios with limited floor height but frequent goods turnover.
2. High operation accuracy: The electric hoist is equipped with a variable frequency speed regulation system, allowing the lifting and moving speed to be adjusted steplessly. When combined with anti-sway technology, the positioning error of the goods can be kept within 10 millimeters. This is particularly important for mechanical processing workshops that require precise assembly, as it can avoid rework caused by handling deviations.
3. Low maintenance cost: The single-girder structure reduces the number of transmission components, and the number of fault points is about 30% less than that of double-girder cranes. At the same time, the electric hoist adopts a modular design, and key components such as motors and reducers can be quickly replaced, reducing the positioning error of the goods. When combined with anti-sway technology, the positioning error of the goods can be kept.

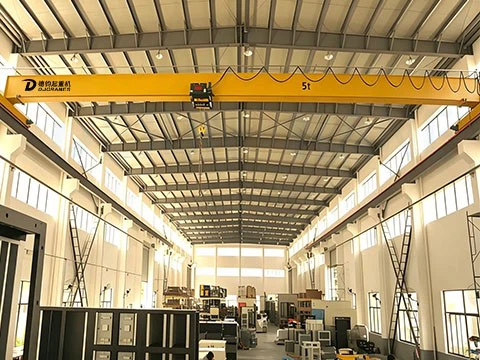

5 Ton Single Beam Bridge Crane For Factory Workshop

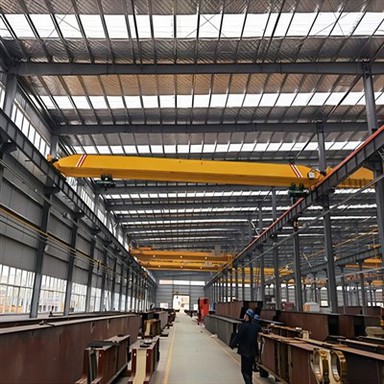

Small Capacity Single Beam Overhead Crane For Sale
Finally Words
At present, the cranes have finished production and have been shipped to Uzbekistan. Besides the overhead cranes, we also produce and sell gantry cranes, jib cranes, electric hoists, etc. If you also have a plan to order a lifting machine from China, please feel free to contact us at any time!
