The 5-ton single girder overhead crane is a type of overhead lifting equipment with a rated lifting capacity of 5 tonnes, featuring a single main girder. It mainly consists of a single main girder, an electric hoist, end beams, and a control system. The electric hoists run along fixed tracks at the top of the workshop for vertical lifting and horizontal transportation of materials. Moreover, it has the advantages of a simple structure, convenient to install and maintain, and good applicability, etc. Thus, it is widely used in machinery manufacturing, construction material processing, warehouse logistics, and other fields. Due to its wide range of applications, our single girder overhead cranes are very hot-selling. Various single girder bridge crane types are available. What's more, we will provide a personalized single-beam overhead crane according to your usage and other requirements. For more details about our 5-ton single girder overhead crane, please keep reading.

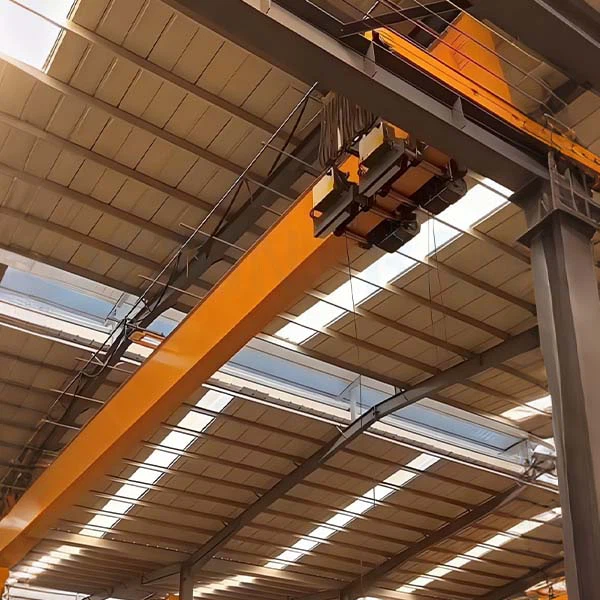

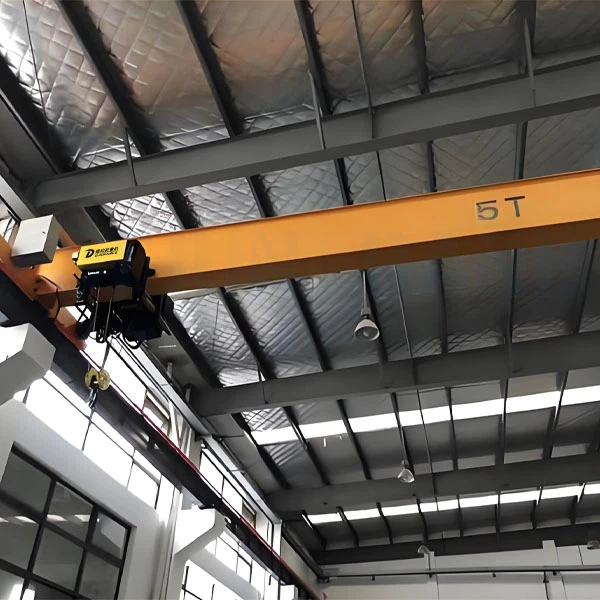

5 ton Single Beam Overhead Crane For Sale
10-ton HD Single Girder Overhead Crane
5 tons Single Girder Overhead Crane Specifications
Item
Single Girder Bridge Crane
Model
HD Type
Lifting Capacity
5 tons
Lifting Height
5.6 meters (can be customized)
Span
9 meters (can be customized)
Crane Traveling Speed
3-30 m/min(VFD)
Trolley Traveling Speed
2-20 m/min(VFD)
Lifting Speed
0.8-5 m/min(VFD)
Lifting Mechanism
European Hoist
Control
Pendent control+Remote control
Power Supply
380V 50HZ 3P
Lifting Power
6.1 Kw
Trolley traveling Power
0.64 Kw
Crane traveling Power
0.64*2 Kw
Protection Class
IP55
Insulation Class
H Class
Working Temperature
-20℃ ~ +50℃
Motor
Three-in-one motor
Starting Mode
Soft start
Paint
not less than 120 microns
Hook Type
Plain 'C' type
Steel Material
Q235B
Electrics Brand
Schneider
Paint Thickness
not less than 120 microns
Features
1. Lightweight design: The main beam and end beam are connected by bolts, resulting in a light overall weight, low load on the factory building, and low requirements for building height. In addition, the lightweight makes the installation very easy, saving your installation time.
2. High cost performance: Compared with double-girder overhead cranes, the 5-ton single-girder overhead crane has a lower manufacturing cost; however, its lifting efficiency is also high. Therefore, it is especially suitable for some enterprises with limited budgets.
3. A wide range of applications: Widely applicable purposes make it more and more popular in the market. For example, it can be used for stacking, sorting, and loading/unloading of goods at warehouses. Furthermore, it can carry steel and cement products for steel mills. Additionally, our single girder bridge crane is also suitable for short-distance and high-frequency material transfer, such as the hoisting of components and semi-finished products.
4. Stable operation: The main beam is made of high-strength steel, such as hot-rolled coils. This ensures stability under heavy loads and is suitable for medium-high strength handling scenarios.
5 ton Single Girder Bridge Crane Cost
The cost of a 5-ton single girder bridge crane is mainly influenced by factors such as lifting capacity, span, configuration, etc. Due to significant differences in parameters, the specific price range needs to be evaluated based on actual requirements.
The larger the tonnage, the higher the price. For example, the price of a 5-ton single girder crane is usually 6,000 USD, while the price of a 10-ton or above model significantly increases. In addition, the span directly affects the cost. A 5-ton crane with a 10-meter span costs approximately 5500 USD, while a model with the same tonnage but a 26-meter span may cost several times more. What's more, the crane configuration will influence its price. For example, the European-style single girder crane has superior performance, but the price is twice that of the traditional model. If you want to customize the span and lifting height, it will also increase the cost. And, the accompanying equipment, such as electromagnetic suction cups, grabs, or the operation methods, such as wireless remote control or the cab, will also affect the final quotation. Additionally, the manufacturer and a trader will give you a different price. The direct manufacturer will give you a lower price than a trader. Apart from this, a professional crane manufacturer also provides you with more professional service and a longer warranty period. Therefore, if you want to buy a single girder overhead crane with 5 tons capacity, please note your specific requirements and choose a manufacturer instead of a trader. Welcome to contact us for more details, and we will give you a discount.
Crane Beam Production
Dejun Single Girder Overhead Crane Exported To Turkey
Finally Words
Due to its obvious advantages and extensive usages, our 5-ton single girder overhead crane has been exported to over 80 countries and regions all over the world. If you want to buy 10 tons, 15 tons, or 30 tons, we can all manufacture it for you. Moreover, we also export double girder overhead cranes, gantry cranes, jib cranes, etc. For any needs, please feel free to contact us. Also, we welcome you to visit our factory!
