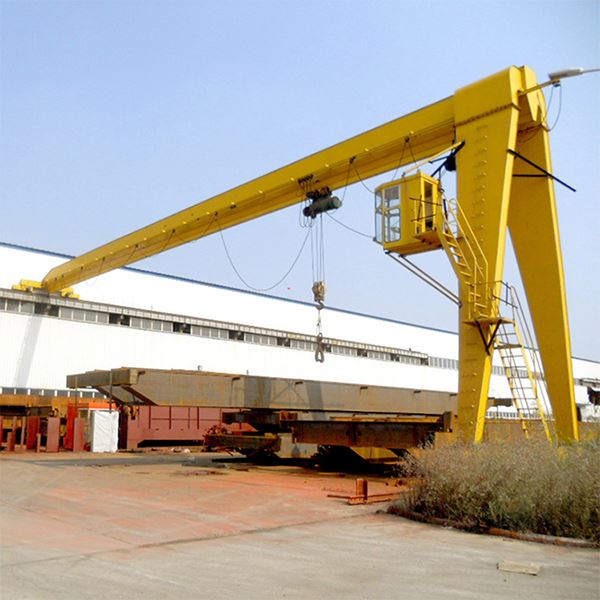

Single Girder Semi Gantry Crane with Hoist

Single Girder Semi Gantry Crane with Hoist is a kind of hoisting machinery between bridge cranes and gantry cranes. One end of its bridge beam is directly supported on the track, and the other end is supported on the track through outriggers.

Single Girder Semi Gantry Crane with Hoist is a single-beam semi-gantry crane with electric hoist as the lifting mechanism. The work level can reach A3~A4.

The semi-gantry crane uses a unique single-girder structure, which enables it to have a light weight and a smaller footprint. Even in space-constrained environments, semi-gantry cranes can still carry out work with ease.

2. Parameters:

3. Component:

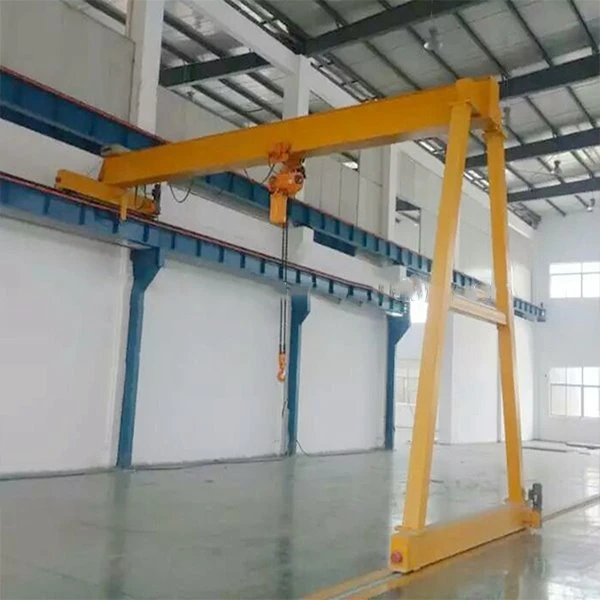

Single Girder Semi Gantry Crane with Hoist is a small and medium-sized lifting equipment running on rails. It is mainly composed of gantry (main beam, outrigger, lower beam, etc.), hoisting mechanism, running mechanism and electric control part. The electric wire rope hoist is used as the hoisting mechanism, and it runs along the lower flange of the main beam I-beam during operation. One side of the gantry is provided with outriggers, which run along the ground track, and the other side has no outriggers and runs along the upper rail of the factory building. The rest of the structure and configuration are consistent with the MH type electric hoist gantry crane.

4. Applicable Environment:

The practical application range of semi-gantry cranes covers many industry fields. It is widely used in lifting, transporting, loading and unloading in open working places such as stations, docks, warehouses, construction sites, cement product yards, machinery or structural assembly yards, hydropower stations, etc.

As far as the manufacturing industry is concerned, semi-gantry cranes can assist in tasks such as loading and unloading heavy objects and transporting production line components; in the logistics industry, they have great potential in warehouse management and cargo transportation. In addition, semi-gantry cranes are often used in construction sites, workshops, factories, warehouses, stockyards and other places, truly meeting the needs of all walks of life.

It is forbidden to use in flammable, explosive and corrosive medium environments.

5. Wearing Parts：

Lifting coupling, hoist traveling limit switch, long traveling buffer

6. How to operate?

Wireless remote control or handle control

7. Advantages of semi-gantry crane

High flexibility: The semi-gantry crane has only two columns, one of which is a movable column, giving it high flexibility. The operator can move the crane to the required location for lifting and transportation as needed.

Wide range of applications: Semi-gantry cranes are suitable for lifting and handling light or medium-sized items, such as factories, warehouses, docks and other places. Due to its simple structure and high flexibility, it has been widely used in these places.

Easy installation: Semi-gantry cranes are usually installed on the ground and do not require additional support structures. This makes its installation relatively simple and can be carried out in a short period of time.

Low maintenance costs: Semi-gantry cranes have a simple structure and relatively low maintenance costs. If parts need to be replaced or maintenance is required, operators can easily do so.
