Gantry Crane With Chain Hoist

1.Overview of Gantry crane with chain hoist

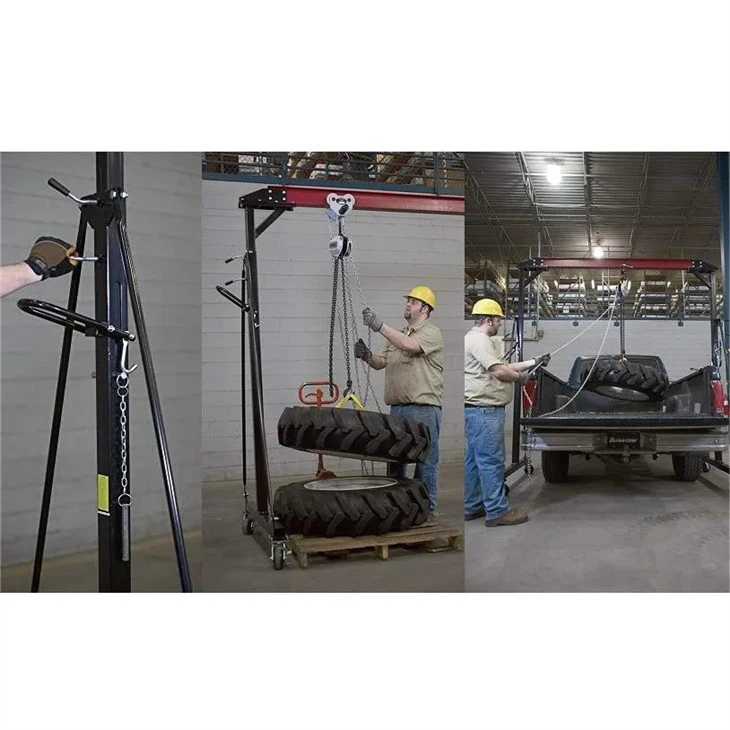

The Telescoping Gantry Crane by JNDO has what your shop needs for all lifting and loading tasks!

The adjustable boom raises and lowers, to accommodate low ceilings or roofs. In addition, the four (4) locking casters make moving and transporting easy, and provide a sturdy base when lifting.



The available 1/2 to 2 ton capacity models cover a large range of items and equipment that can be lifted.



Available in 1/2 to 2 Ton Capacity (1,000 -4,000 lb)

- Telescoping Boom adjusts from 86.6" to 134"

- Four Heavy Duty locking casters

- Easy adjustment system with locking pins

- All-steel construction

2. Gantry crane with chain hoist parameters:

Span	m	Customized
Lifting Weight	t	Customized
Lifting Height	m	Customized
Lifting Speed	m/min	8
Trolley Speed	m/min	Customized
Crane Speed	m/min	20(Ground Control);30,45(Cab Control)



3. Component:

Gantry crane with chain hoist are all composed of I-beam main beams and side support tripods.



When using a gantry crane, it needs to be operated together with an electric wire rope hoist. Electric hoists are generally fixed at a certain point to lift the goods, However, if a running sports car is added, not only can the gantry crane move left and right with heavy objects, but the electric hoist can also move along the I-beam of the Gantry crane with chain hoist.



The combination of electric wire rope hoist and mobile gantry crane, using electric hoist sports car with mobile gantry crane can achieve the function of lifting heavy objects and moving left and right.



It is an indispensable combined lifting equipment in many engineering constructions.

4. Wearing Parts：

Long Traveling Brake, Hoist Traveling Brake



5. Features of Gantry crane with chain hoist



1.No permanent installation required, no need to pave the expensive rail, making Gantry Cranes ideal if you rent or lease your facility.



2. Quick and easy assembly.



3. Portable design allows for relocation for use in more than one facility or work area.



4. Gantry construction adopts standard welding way. All nuts, bolts, and pins are plated for corrosion resistance.



5. All Gantry Cranes are painted safety standard paint coating. Pendent push button control up to IP54



6. Frequently Asked Questions:

What's your package?

Main body in plywood box or in plastic woven cloths;

Spare parts in plywood boxes;



Common problems can be sorted out by clicking "Frequently Asked Questions".

If you can't find the answer you want, please contact us and we will give you a satisfactory answer!
