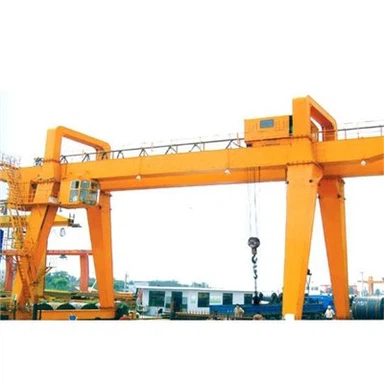

Gantry Crane Boom



BMH gantry crane boom is developed on the basis of gantry crane. It is a track traveling small and medium-sized crane. Gernerally, it is always used together with CD MD model electric hoist. It has one leg special design, so it needs to use one side of warehouse to fininsh its work. At the same time, one leg special design can also save the cost.



2. Parameters:



Lifting weight	t	5t					10t
Span(S)	m	18	22	26	30	35	18	22	26	30	35
Lifting height	m	10	10	12	12	12	10	10	10	12	12
Lifting speed	m/min	12.5					8.5
trolley speed	m/min	37.2					43.8
cart speed	m/min	37.7			40.1		37.7		40.1
Installed capacity	KW	31.8	31.8	31.8	40.8	40.8	36.5	36.5	45.5	45.5	45.5
maximum wheel pressure	KN	217	230	243	266	289	225	228	245	290	310
Recommended track for carts		P43					P43
Main dimensions	mm	18	22	26	30	35	18	22	26	30	35
Overall height of crane	H4	13374	14474	13524	15606	15698	14580	14580	14580	16590	16590
Big wheel base	W	7000	7000	8500	8500	8500	8000	8000	8500	9500	9500
Overall width of crane	B	8554	8554	13050	13050	13050	9554	9554	10350	11350	11350
left cantilever	L1	6500	6500	6500	9000	9000	6500	6500	7500	9000	9000
right cantilever	L2	6500	6500	6500	9000	9000	6500	6500	7500	9000	9000
Hook left limit	S1	5000	5000	5000	7500	7500	5000	5000	6000	7500	7500
Hook right limit	S2	5000	5000	5000	7500	7500	5000	5000	6000	7500	7500
Trolley gauge	K	1400					2000



3. Component:



BMH gantry crane booms are generally composed of three major parts: mechanical, electrical and metal structures.

Mechanical part: It is divided into three mechanisms, namely the hoisting mechanism, the trolley operating mechanism and the cart operating mechanism.

The hoisting mechanism (winch trolley) is used to lift objects vertically, and the trolley operating mechanism is used to move laterally with a load; the cart running mechanism is used to move the hoisting trolley and the goods longitudinally, so as to achieve the three-dimensional space for handling and loading and unloading goods.



4. Applicable Environment:



This BMH gantry crane boom is mainly used in steel stock yard, mine, the concrete industry, warehouse, factory, harbor and ship building, etc.

5. Wearing Parts:

6. Transportation:

7. How to operate?

8. Design& specifications of the BMH gantry crane boom:



BMH gantry crane boom is a kind of light type crane, commonly used in modern production. In workshops where part utilization of shop bay is required (as in a tool room attached to a press shop), a Semi-Goliath/Gantry Crane is used. In such a configuration, one end-carriage of the crane will travel on the regular gantry rail while the opposite end-carriage will travel on a rail mounted typically on the ground or at a lower elevation. Compared with the electric single-girder gantry crane, it can save the investment and space.



9.Features of BMH gantry crane boom

1. it should proper matching use CD1 and MD1 type electric hoist



2.Its proper lifting weight is 1~16t, proper span is 5~35m.



3. it is usually used in machine shop to carry materials. The crane has two operation modes including control on ground and remote control.



4.Compact dimensions, low weight, easy to operate and easy to maintain, steady performance, safety, less wastage, low cost and so on.
