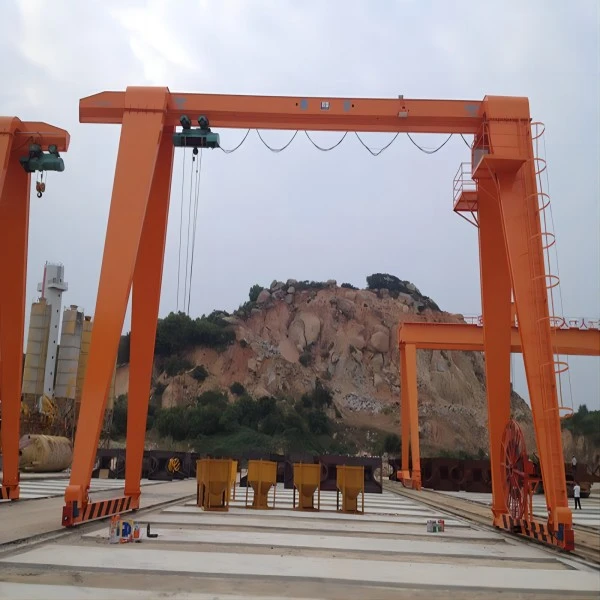

12 Ton Gantry Crane
The single beam 12 ton gantry crane is a gantry crane commonly used indoors and outdoors, which is the ideal solution for medium and low working levels of material handling. Nantes can choose low headroom hoist, standard headroom hoist, direct connection type end beam, open gear type end beam and other departments to design single beam gantry crane to meet different plant and budget needs, our single beam gantry crane has a compact structure, low weight, low noise, easy installation, easy maintenance and other characteristics.
- Fast Delievery
- Quality Assurance
- 24/7 Customer Service
Product Introduction
1. Product introduction:
The single beam 12 ton gantry crane is a gantry crane commonly used indoors and outdoors, which is the ideal solution for medium and low working levels of material handling. Nantes can choose low headroom hoist, standard headroom hoist, direct connection type end beam, open gear type end beam and other departments to design single beam gantry crane to meet different plant and budget needs, our single beam gantry crane has a compact structure, low weight, low noise, easy installation, easy maintenance and other characteristics.
It is generally used in conjunction with CD1 and MD1 electric hoists. Mainly suitable for lifting weight 3t-32t, span 12m-30m, can be customized according to customer requirements, Working environment -20°C ~ +40°C, the working system is 25%, and the wind pressure is not more than 125Pa. The working level can reach A3-A4.
2. Parameters of 12 ton gantry crane:
|
Lifting Capacity(t) |
3 |
5 |
10 |
16 |
20 |
||||||||||||||||||||
|
Span(m) Customized |
12 |
16 |
20 |
24 |
12 |
16 |
20 |
24 |
12 |
16 |
20 |
24 |
30 |
12 |
16 |
20 |
24 |
30 |
12 |
16 |
20 |
24 |
30 |
||
|
Lifting Height(m) |
6/9 |
6/9 |
6/9 |
6/9 |
6/9 |
||||||||||||||||||||
|
Travelling Speed(m/min) |
Ground |
20 |
20 |
20 |
20 |
20 |
|||||||||||||||||||
|
|
Controlling Room |
20/30/45 |
20/30 |
20/30 |
20/30 |
20/30 |
|||||||||||||||||||
|
Working Class |
A3-A4 |
||||||||||||||||||||||||
|
Electric Current |
Three-phase AC 380V 50Hz |
||||||||||||||||||||||||
3. Checklist items of 12 ton gantry crane include:
Steel structure inspection: focus on the inspection of structural materials and welding loosening, falling off, cracking, bridge deformation, structural corrosion and other conditions.
Lifting mechanism inspection: focus on checking the wear and damage of motor, coupling, reducer, shaft, bearing and other parts.
Operation mechanism inspection: focus on the wear and damage of tracks, wheels, brakes and other components.
Control system inspection: Focus on checking whether electrical components, control and operating systems are working properly.
Electrical equipment inspection: focus on checking the integrity of electrical circuits, electrical components and grounding devices.
Lubrication check: Focus on checking the lubrication of each lubrication point to ensure that the lubricating oil is sufficient and uniform.
4. Wearing Parts of 12 ton gantry crane：
Rope guide, Carbon brusher
5. How to operate a 12 ton gantry crane?
Customer customization
6. Transportation:
7. Why choose us?
Advanced test measure.
7*24h online services.
