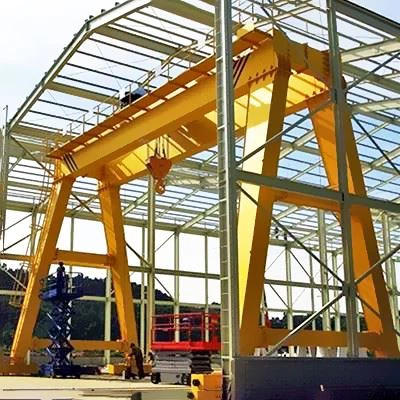

40 Ton Travelling Gantry Crane with Single Winch Trolley

Gantry cranes are generally used in conjunction with winch trolley, its metal structure is like a door-shaped frame, and two feet are installed under the bearing main beam. It can walk directly on the track, and the two ends of the main beam can have outstretched cantilever beams.

There are two operation modes: air operation and ground operation. It is mainly used for the loading and unloading of outdoor cargo yards, stockyards and bulk cargoes. The working environment is below +40℃, the working level is 25%, and the wind pressure is not more than 125Pa.

It is strictly prohibited to use for lifting high temperature molten liquid, inflammable, explosive, corrosive, overloaded, dust and other dangerous operations.

It has high site utilization, large operating range, wide adaptability and strong versatility, it is widely used in the port cargo yard. According to different working conditions, the working level can reach A5-A8.

2. Parameters:

When purchasing a 40 Ton Travelling Gantry Crane, please provide the following data so that we can confirm your needs faster!

① Lifting weight;

② Span (track center to guide rail center);

③ Lifting height (hook center grounded);

④ Whether external overhang is required (please provide the overhang length);

⑤ Are guide rails and cables required? (please provide run length);

⑥ Other special requirements. If you have more detailed information, please let us know and we will give you a more accurate price!

3. Component:

The main components of the Double Girder Gantry Crane with Winch are the main beam structure, outriggers, walking beams, walking structures, electrical appliances, ladder cabs and other components.

The main structure is mainly plate welded box type structure. Its main beam and outriggers can be divided into several sections, the nodes are mainly connected by gusset plates and refined high-strength bolts.

Cart traveling mechanism: composed of four driving wheel boxes.

Outrigger section: The outrigger section consists of rigid legs (or paired with flexible legs). Each contact is connected by high-strength bolts, which is easy to install, fast and firmly connected.

Operating room and electrical control: The operating room is composed of the operating room body and the electric control box.

Main beam assembly: The main beam assembly is composed of the main longitudinal beam and the connection frame.

Ladder assembly: On one side of the main longitudinal beam, there is a walking platform for maintenance personnel.

Hoisting trolley: The hoisting trolley consists of a frame, a trolley traveling mechanism, a winch and a pulley block.

4. Applicable Environment:

China 40 Ton Traveling Gantry Crane with Single Winch Trolley is widely used in factories, docks, cargo yards and other places for heavy cargo transportation and loading and unloading operations. It can adapt to various complex operating environments, such as high temperature, humidity, open air, etc. Specific application scenarios include:

Factory production line: Double-girder gantry crane can be used for material handling, loading, unloading and stacking on the factory production line.

Terminals and cargo yards: The Traveling Gantry Crane can be used for cargo loading, unloading, stacking and transshipment at docks and cargo yards, which can improve loading and unloading efficiency and reduce labor costs.

Steel, aviation, shipbuilding and other industries: 40 Ton Traveling Gantry Crane can be used for material handling, loading, unloading and maintenance in steel, aviation, shipbuilding and other industries.

5. Wearing Parts：

Safety hook, Rope guide, Brake ring

6. Transportation:

Our company can find a safe and cost-effective logistics and transportation company for you, and of course you can also use the logistics and transportation company you specify.

No matter which of the above methods is used, it is all to deliver the goods to you in the safest and most cost-effective way. Designated place.

For more specific logistics and transportation methods, please click "here" to learn more.

7. Frequently Asked Questions about Single Girder Gantry Crane with Winch Trolley:

What kinds of products do you have?

Overhead Crane; Gantry Crane, Electric Hoist; etc.

Considering that the problems of each customer are different, in order to describe the common problems to you more comprehensively, please click "FAQ" to learn more.

8. Do you provide lift tools?

Yes, we can provide any kinds of lift tools such as lift sling belt, lift clamp, grab, magnet, pulley blocks, hook, lock catch, wire rope, fiber rope, etc.

If you want to know more, please contact us directly!!
