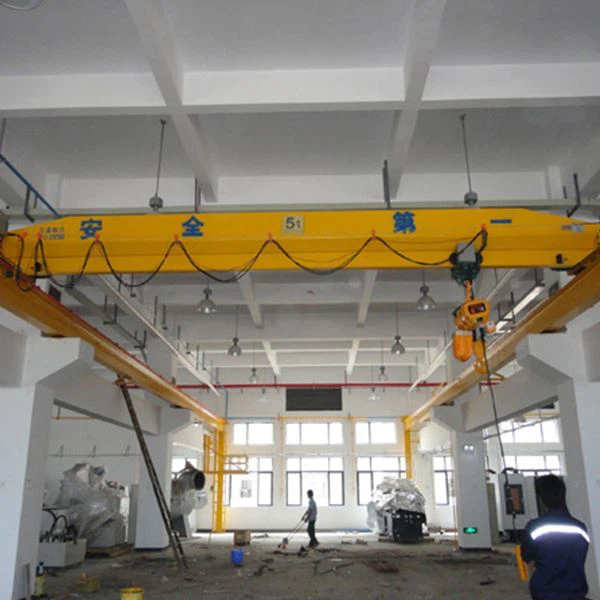

Explosion-proof Single Girder Overhead Crane with Explosion-proof Electric Chain Hoist

1. Product Introduction:

The Explosion-proof Single Girder Overhead Crane with Chain Hoist is based on the Single Girder Overhead Crane with Electric Chain Hoist Trolley. It is designed according to GB3836.1-2000 "Explosion-proof Electrical Equipment for Explosive Atmospheres" and GB3836.2-2000 "Electrical Equipment for Explosive Atmospheres Separated Electrical Equipment "d"". It has the characteristics of reasonable structure, beautiful appearance and strong explosion-proof performance.

It is used together with explosion-proof electric chain hoist, and it is mostly used in places with low frequency of use or few lifting times of rated lifting capacity, such as machinery manufacturing, assembly, warehouse, etc. The lifting capacity is 1t-10t, the span is 7.5m-22.5m, the working class is A3-A4, and the working environment is 25°C ~ +40°C.

2. Parameters:

3. Component:

The Explosion-proof Single Girder Overhead Crane with Explosion-proof Electric Chain Hoist Trolley is composed of four parts: the cart traveling mechanism, the explosion-proof electrical control system, the explosion-proof electric chain hoist, and the metal structure bridge. The motor and electrical equipment of the crane are all flameproof type.

The main beam is made of U-shaped channel steel rolled from steel plate, and then welded with I-beam to form a box-shaped solid web beam. The crossbeam is also rolled into a U-shaped channel with steel plates, and then welded into a box-shaped crossbeam.
Explosion-proof electric chain hoist: The explosion-proof electric chain hoist can lift heavy objects and move longitudinally along the main beam.

4. Applicable Environment:

This crane is an excellent choice for use in the oil and gas industry, where safety is of critical importance. It is designed to operate safely in hazardous environments and is ideal for use in locations where there is a risk of explosion.

This product is suitable for use in flammable and explosive environments. It is suitable for flammable gases, vapors and flammable gases with explosion-proof grades not higher than B or C grades and ignition temperature groups not lower than T4 (135°C) in the factory. In the explosive gas atmosphere formed by air, the hazardous area used is Zone 1 or 2, and it is not suitable for Zone 0.

Note:

Zone 0: Under normal circumstances, explosive gas mixtures appear frequently in a short period of time or exist for a long time.

Zone 1: Under normal circumstances, explosive gas mixtures may appear.

Zone 2: Under normal circumstances, explosive gas mixtures cannot appear, only occasional short-term places where equipment failure or operating conditions may occur under abnormal conditions.

5. Product Features:

① Explosion-proof design:

The Explosion-proof Overhead Crane is designed with safety in mind. It has an explosion-proof design that ensures it can operate safely in hazardous environments. This crane is ideal for use in environments where flammable gases or explosive substances may be present.

② High-quality materials:

The main components of this crane are made from high-quality steel materials that are designed to withstand the rigors of heavy usage.

③ Easy to operate:

The Explosion-proof Overhead Crane is easy to operate. It comes with an intuitive control system that allows operators to quickly and easily control every aspect of the crane.

④ High efficiency:

This crane is designed to operate at high efficiency levels. It is equipped with a powerful explosion-proof electric chain hoist that has been designed to lift heavy loads quickly and efficiently.

⑤ Customizable:

The Explosion-proof Single Girder Overhead Crane is highly customizable. It can be adapted to meet the specific needs of different industries and applications. This crane can be customized to fit specific load capacities, lifting heights, and configurations.

6. How to operate ?

The Explosion-proof Single Girder Overhead Crane with Explosion-proof Electric Chain Hoist Trolley has two types of operation on the ground and in the air.


There are two types of ground operation: wired handle operation and wireless remote control operation;


Aerial operation refers to cab operation. There are two types of driver's cab, open type and closed type, which can be divided into two types of left or right installation according to the actual situation.
