Warehouse Crane Types

1. Product Introduction:

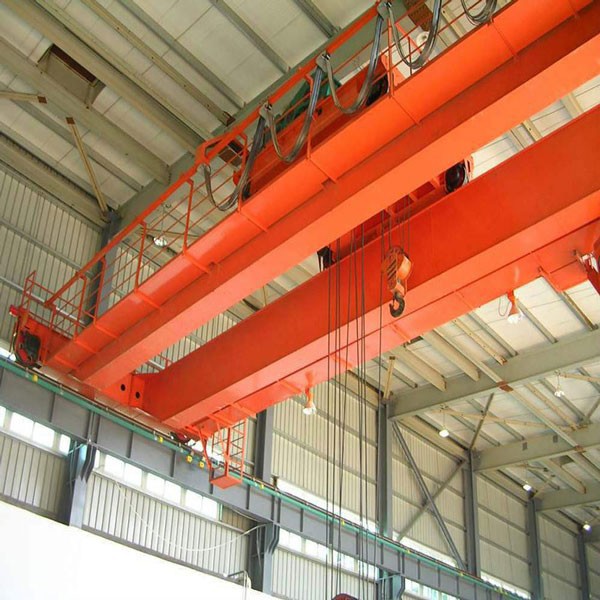

The double girder overhead warehouse crane types is a bridge crane installed on a trolley with a fixed electric hoist as the lifting mechanism. The structure is simple and light, and has the characteristics of compact size, low building headroom, light weight and small wheel pressure.



Its working types are light and intermediate, and the working environment temperature is -25°C ~ 40°C. It is suitable for factories, mines, workshops, warehouses and other workplaces within the range of medium and small lifting capacity. It is forbidden to use in flammable, explosive and corrosive medium environment, and the working class can reach: A3, A4.



2. Parameters:

Lifting Weight(t)		Customized	5	10	16	20
Lifting Height(m)		Customized	6,9,12,18	9,12	9,12	9,12
Span(m)		10.5,13.5,16.5,19.5,22.5,28.5,31.5 or Customized
Manipulation Way		Ground or Cabin
Hoisting Speed(m/min)		Customized	8,8/0.8	7,7/0.7	3.5,3.5/0.35	6,6/0.6
Travelling Speed of Crab(m/min)		Customized	20	20	20	20
Travelling Speed of Trolley(m/min)	Surface	Customized	20(30)	20(30)	20(30)	20
	Cabin	Customized	20(30)	20(30)	20(30)	20
Electric Hoist Type		Customized	CD1 -5 MD1 -5	CD1 -10 MD1 -10	CD1 -16 MD1 -16	CD1 -20 MD1 -20
Working Class		A3-A4
Electric Current		Three-phase AC 380V 50Hz





3. The difference between hoist trolley(warehouse crane types) and electric hoist



The trolley on the bridge crane generally refers to the whole body composed of running motor, hoisting motor, reducer, brake, overload limiter, drum, wire rope, hook (or spreader), electrical appliances, etc., and the working level is relatively high. The stability is very good, and the cost is also high.



Electric hoist is composed of motor, hoist main body, transmission, hook, sports car, and electrical parts. It is relatively flexible, has low working level and low cost.



Project	The trolley of a crane	Electric hoist
Shape	Motor, brake, reducer, reel, etc. Separately mounted on the trolley frame to form a whole	A machine that makes up a whole
Volume and weight	Generally large in size and heavy in weight	Flake
Elevating capacity	The lifting weight can be large or small	Small lifting weight, the maximum lifting weight of domestic electric hoist is 15 tons, the maximum lifting weight of 63 tons abroad
Speed control	A variety of speeds are possible with winding or electric motors	Squirrel-cage motor is used, which can be controlled by clicking, especially with 2-3 levels of speed
Control	Operate in the driver's cab	Button control on the ground, can also be operated in the driver's cab
Operating frequency	Hex bolt	The size is changeable.
Cost and maintenance	Generally high	Lower
Service	Call for expertise	General professional knowledge



4. Why choose us?


(1) Modern production workshop & equipment.


(2) Focus on crane customization.


(3) 7*24h online services.



(4) We have a team of dedicated engineers who are constantly improving and innovating our Double Girder Overhead Crane products.



(5) The company advocates the development policy of 'customer first, quality first, shaping the pioneer of 25 Ton Double Girder Overhead Crane with Electric Wire Rope Hoist Trolley, and achieving sustainable development', and participates in market competition with efficient, high-quality and excellent after-sales service.



(6) Our double girder overhead warehouse crane types are cost-effective and offer exceptional value for money.



(7) In order to respond to the increasing demands of our customers, we are constantly improving the quality of our products and expanding our product range to help our customers succeed.



(8) Our double girder overhead warehouse crane types are designed to meet the needs of various industries.



(9) We always believe that warm and thoughtful service adds value to the quality of double girder overhead warehouse crane types to gain more customer trust!

5. Frequently Asked Questions


(1) What kinds of products do you have?
Overhead Crane; Warehouse crane types,Gantry Crane, Electric Hoist; etc.



(2) Could we buy spare parts in local once they are out of work?
Our main electrical parts brand is a generic brand; it's very easy to buy all the world. But if there is any difficulty, we can post to you by express, such as DHL, UPS, FEDEX, Aramex, etc.

(3)What certifications do you have?

CE,ISO,SGS
