Double girder midwest overhead crane corp



1. Product Introduction:



The lifting mechanism of the Double girder midwest overhead crane corp adopts the classic parallel axis arrangement, the trolley running mechanism adopts the low-speed shaft centralized driving structure, and the large truck running adopts the structure of independent driving on both sides. The crane can be divided into hook type (QD), grab type (QZ), and electromagnetic type (QC) according to the form of taking; The crane is divided into ground operation, air operation and remote control operation according to the operation mode.

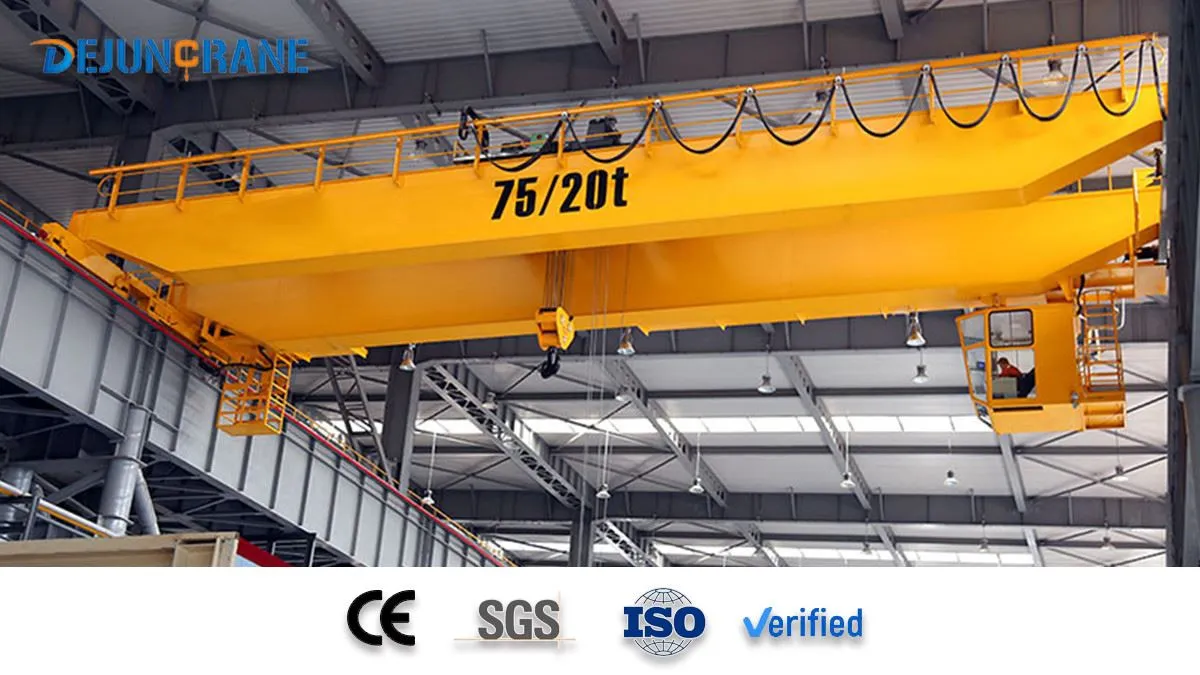

The Double girder midwest overhead crane corp system is another outstanding feature of this crane. It consists of two independently controllable trolley hooks, allowing the user to lift and move two items simultaneously. This greatly increases the efficiency of lifting and moving heavy loads, allowing bigger jobs to be done in less time.



In general, the main hook has a large lifting tonnage, a slow lifting speed and low efficiency; the auxiliary hook has small lifting tonnage, fast lifting speed and high efficiency; the two hooks of the crane are generally operated independently. In special cases, the main and auxiliary hooks can also be used together to complete the operation process. The working Class is different according to the working conditions: A5-A8.

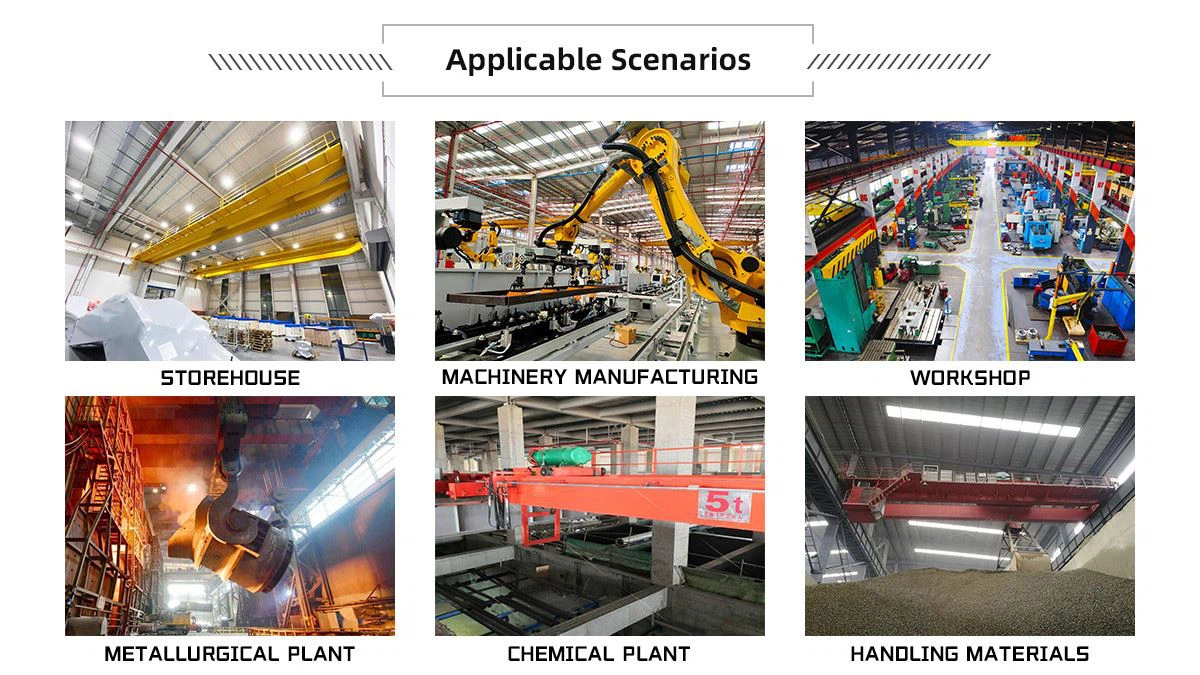

2. Applicable Environment:



Double girder midwest overhead crane corp is suitable for lifting work in machining, assembly workshops, metal structure workshops, metallurgy and foundry workshops and various warehouses;



Equipped with grab buckets, it is suitable for metallurgical, cement, chemical and other industrial sectors or open-air fixed-span handling of bulk materials.

In addition to being suitable for the loading, unloading and handling of ordinary heavy objects, the double-girder overhead crane can also be equipped with a variety of spreaders for special operations.

3. Bridge crane maintenance knowledge



1). Appearance of bridge crane: Clean the appearance comprehensively to ensure that there is no dust or yellow robes. Check for cracks and open welding.



2) Carts and trolleys: ① Check and tighten the transmission shaft seat, gear box, coupling, shaft and key to see if they are loose. ② Check and adjust the brake wheel clearance to make it uniform, sensitive and reliable.



3). Check the reducer of the overhead crane mainly to see if it leaks oil. If there is abnormal noise inside the box during operation, open the box cover and check. It is generally caused by bearing damage, excessive gear meshing backlash, severe tooth surface wear, etc.



4). Lifting and lowering winch: ① Check whether the wire rope, hook, and pulley are safe and reliable. If the wear exceeds the specified value, they should be replaced. ② Check and adjust the brake to make it safe, sensitive and reliable.



5) Inspection of bridge crane wire rope. When inspecting the wire rope, focus should be placed on observing broken wires, wear, kinks, rust, etc. Some locations with serious wear and broken wires but not exceeding the standard should be marked for focused follow-up and re-inspection. Pay attention to check whether the safety limiter of the wire rope in the drum is effective, whether the wire rope pressure plate on the drum is pressed tightly and whether the number of pressure plates is appropriate.



6) Lubrication: Check the oil quality and quantity of all parts, and add or replace lubricating oil as required.



7) Inspection of bridge crane pulleys. The focus is on whether the wear amount at the bottom of the groove exceeds the standard and whether there are cracks in the cast iron pulley. As for the balance wheel of the pitching mechanism pulley group, it is easily ignored because it does not move under normal circumstances. Therefore, the rotational flexibility must be checked before installation. Otherwise, the length and tension of the left and right hoisting wire ropes cannot be automatically adjusted through the balance wheel during installation, which increases the difficulty of adjusting the hoisting rope at high altitudes and increases the risk of operation.



4. Transportation:

Shipping way: by sea, air, land, and Express such as DHL, TNT, UPS, FEDEX. We will choose the suitable shipping method according to your requirements.

5. Precautions for safe operation



1. Do not lift objects that exceed the rated lifting capacity of the crane.



2. It is strictly prohibited to lift goods over people's heads.



3. When operating in the air, the position of the spreader shall not be lower than a person's height.



4. It is strictly forbidden to use a spreader set to lift heavy objects diagonally, and it is also strictly forbidden to use a crane to pull out objects buried underground.



5. Do not use the sudden reversal of the motor as a brake for the mechanism. This braking method is only allowed in the event of an extremely unexpected event.



6. It is prohibited to use the limit switch as a power outage under normal operation. The limit switch only makes it work when the control equipment is accidentally defective or the driver's operation is negligent.



7. Every time the crane is operated, a warning signal must be issued first.



8. When lifting heavy objects close to the rated load, you should first test whether the brake can hold it to ensure safety.



9. When the driver leaves the control room, he must drive the crane to a fixed parking location. The spreader is not allowed to suspend objects. Set each control handle to the zero position and cut off the main switch.



10. Strictly abide by the safety regulations issued by various factories, mines and relevant departments.
