Bridge And Gantry Crane

1. Product Introduction:

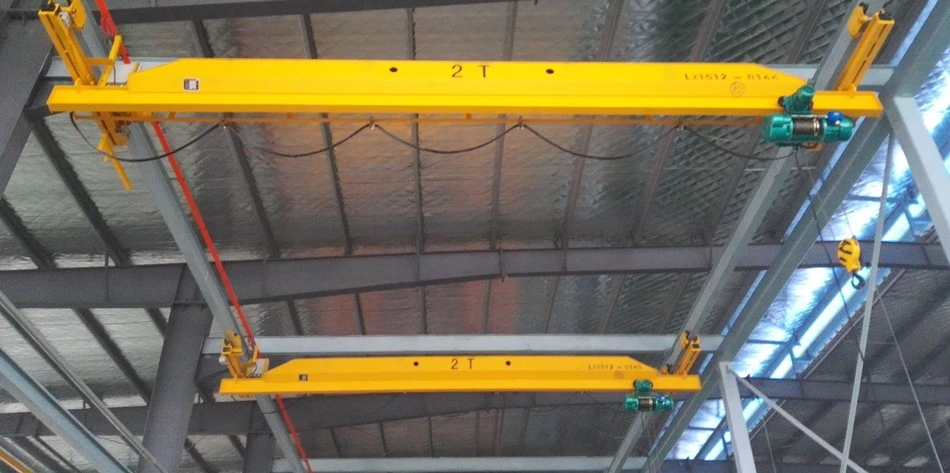

The bridge and gantry crane is a light small crane with ultra-low headroom. The electric hoist is located on one side of the main beam. Compared with the ordinary single-beam bridge crane, the use space of the hook is increased, and the plant height and cost are reduced.



Rated load 3t ~ 20t, span 7.5m ~ 27m, widely used in the working environment temperature -20℃ ~ +40℃, workshop clearance is low places. Working class A3, A4.



2. Parameters:

Lifting Weight(t)	1				2				3				5				10				16				20
Span(m)	7.5	10	15	18	8	13	18	27	7.5	12	18	23	8	12	15	18	8	12	15	20	12	19	25	28	10	16	19	26
Working Speed (m/min)	Ground 20								Ground 30								Ground 20		Ground 30		Ground 20				Ground 20
Model of Electric Hoist	CD1 Model								MD1 Model								CD1 Model		MD1 Model		CD1 Model		MD1 Model		CD1 Model		MD1 Model
Lifting Speed(m/min)	8								8/0.8								7		7/0.7		3.5		3.5/0.35		3.5		3.5/0.35
Hoisting Height(m)	6、9、12、18、24、30 or Customized
Working Class	A3、A4
Electric Current	Three-phase AC 380V 50Hz or Customized



3. Component:


Dejun brand bridge and gantry crane consists of metal structure, electric hoist, running mechanism, electrical equipment, etc.



Metal structure part: The main girder usually adopts a box-girder structure, using a welded box-shaped main girder, and the trolley track is arranged on the top and side of the web of the main girder.


Electric hoist: The electric hoist is attached to one side of the main girder and moves longitudinally along the main girder, which increases the service space of the hook and reduces the height and cost of the workshop. For its structural characteristics, please refer to the manual of the electric wire rope hoist.


Operating mechanism: This product adopts the form of separate driving, It is completed by the cone brake asynchronous motor, and the reduction device adopts the "one opening and one closing" gear reduction transmission.


Electrical equipment: The supporting motor is a conical brake asynchronous motor. The electric hoist and the whole machine are equipped with safety devices, such as: lifting limit switch, limit switch at the end of the cart, etc.



4. Attention of wire rope



The wire rope shall meet the requirements of GB/T 8918-2006 "Important purpose wire rope" and GB 6067-1985 "Safety Regulations for Lifting Machinery", and the wire rope connection shall meet the corresponding requirements of GB 6067-1985. The safety factor of the wire rope should meet the requirements of GB/T 3811-1983 "Crane Design Code".



The scrap of steel wire rope shall meet the requirements of GB 5972-2006 "Practical Code for the Inspection and scrap of Steel wire Rope for Lifting Machinery".



The fixing device of the end of the wire rope on the drum shall have anti-loosening or self-tightening performance. The end of the multilayer winding drum shall have a flange, and the flange shall be 2 times higher than the diameter of the outermost wire rope.



When the drum cracks or the wall wear reaches 20% of the original wall thickness, it should be scrapped.



The pulley shall be provided with a device or structure to prevent the rope from slipping out of the rope groove. The pulley groove shall be smooth and smooth, and there shall be no defects that damage the wire rope. bridge and gantry cranes carrying molten metal shall not use cast iron pulleys.



When the pulley cracks, the uneven wear of the wheel groove reaches 3mm, the wall thickness of the wheel groove is 20% of the original wall thickness, the diameter of the bottom of the wheel groove is reduced by 50% of the diameter of the wire rope due to wear, or there are other defects that damage the wire rope, it should be scrapped.





5. Benefits of bridge and gantry crane



① Improved Efficiency



The bridge and gantry crane provides businesses with an efficient way to move heavy loads, which results in expedited production schedules and increased output.



② Savings in Labor Costs



The bridge and gantry crane eliminates the need for manual labor, which results in significant savings in labor costs. It can handle heavy loads without requiring human intervention, enabling the operators to focus on other tasks.



③ Increased Safety



The safety features of the crane ensure that there are no accidents or injuries in the workplace. By ensuring the safety of the equipment and personnel, businesses can save on expenses related to worker compensation and legal liabilities.



④ Low Cost of Ownership



The low cost of ownership makes this crane an attractive option for businesses looking for a cost-effective way to improve their lifting capacity. The minimal maintenance required results in reduced expenses associated with maintenance and repair.



6. Why choose us?

Punctual delivery time


Perfect quality-control system


Advanced test measures


Independently conduct over 20 technological flows



The bridge and gantry crane offers businesses an opportunity to improve their lifting capacity, increase efficiency, reduce labor costs, and enhance safety in the workplace. For businesses looking for a cost-effective solution to their lifting needs, the Overhead Crane is an excellent option.
