Bridge And Gantry
Dejun Industrial Co., Ltd. is mainly engaged in bridge and gantry crane, single beam crane, double beam crane, gantry crane, grab crane, variable frequency crane, explosion-proof series crane, chain type oil scraper, scraper, electric hoist design, manufacturing, installation, repair and transformation, maintenance. It is a member unit of China Lifting Industry Association, "China famous brand enterprise" national second-level enterprise ", first-level safety approval enterprise, national lifting machinery designated production unit, with mechanical engineering "design Certificate", and lifting machinery "Manufacturing license" issued by the state and installation, maintenance, transformation and maintenance "License".
- Fast Delievery
- Quality Assurance
- 24/7 Customer Service
Product Introduction
1.About our comapny:
Dejun Industrial Co., Ltd. is mainly engaged in bridge and gantry crane, single beam crane, double beam crane, gantry crane, grab crane, variable frequency crane, explosion-proof series crane, chain type oil scraper, scraper, electric hoist design, manufacturing, installation, repair and transformation, maintenance. It is a member unit of China Lifting Industry Association, "China famous brand enterprise" national second-level enterprise ", first-level safety approval enterprise, national lifting machinery designated production unit, with mechanical engineering "design Certificate", and lifting machinery "Manufacturing license" issued by the state and installation, maintenance, transformation and maintenance "License".
2.Product Introduction:

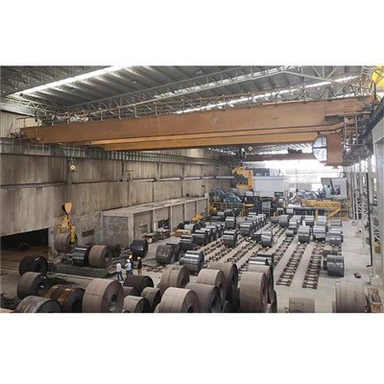

The bridge and gantry crane series is a bridge crane installed on a trolley with a fixed electric hoist (seat type or hanging type) as the lifting mechanism. The structure is simple and light, and has the characteristics of compact size, low building headroom, light weight and small wheel pressure.
Its working types are light and intermediate, and the working environment temperature is -25°C ~ 40°C. It is suitable for factories, mines, workshops, warehouses and other workplaces within the range of medium and small lifting capacity. It is forbidden to use in flammable, explosive and corrosive medium environment, and the working class can reach: A3, A4.
3. Parameters:
| Lifting Weight(t) |
Customized |
5 |
10 |
16 |
20 |
|
|
Lifting Height(m) |
Customized |
6,9,12,18 |
9,12 |
9,12 |
9,12 |
|
|
Span(m) |
10.5,13.5,16.5,19.5,22.5,28.5,31.5 or Customized |
|||||
|
Manipulation Way |
Ground or Cabin |
|||||
|
Hoisting Speed(m/min) |
Customized |
8,8/0.8 |
7,7/0.7 |
3.5,3.5/0.35 |
6,6/0.6 |
|
|
Travelling Speed of Crab(m/min) |
Customized |
20 |
20 |
20 |
20 |
|
|
Travelling Speed of Trolley(m/min) |
Surface |
Customized |
20(30) |
20(30) |
20(30) |
20 |
|
Cabin |
Customized |
20(30) |
20(30) |
20(30) |
20 |
|
|
Electric Hoist Type |
Customized |
CD1 -5 MD1 -5 |
CD1 -10 MD1 -10 |
CD1 -16 MD1 -16 |
CD1 -20 MD1 -20 |
|
|
Working Class |
A3-A4 |
|||||
|
Electric Current |
Three-phase AC 380V 50Hz |
|||||
4. Component:
The mechanical part of the bridge and gantry crane is divided into three mechanisms: the hoisting mechanism, the trolley operating mechanism and the cart operating mechanism.
The hoisting mechanism (electric wire rope hoist) is used to vertically lift Goods, it is manufactured using high-grade materials that are resistant to wear and tear, corrosion, and rust.
The trolley running mechanism is used for lateral movement with a load;
The cart running mechanism is used to move the hoisting trolley and the goods longitudinally, so as to achieve the three-dimensional space for handling and loading and unloading goods.
Electrical part: consists of electrical equipment and electrical lines.
The crane is equipped with state-of-the-art safety features such as overload protection, anti-collision systems, and emergency stop buttons, among others. These features ensure that the crane operates safely and efficiently, minimizing the risk of accidents, injuries, and damage to property.
5. Applicable Environment of bridge and gantry crane:
Dejun brand high quality bridge and gantry crane with electric wire rope hoist is mainly suitable for transfer, assembly, overhaul and loading and unloading operations in machining workshops, auxiliary workshops of metallurgical plants, warehouses, stockyards, power stations, etc.
It can also replace ordinary double girder overhead cranes for production workshops in light textile industry and food industry.
6. Frequently Asked Questions
(1) What kinds of products do you have?
Overhead Crane; Gantry Crane, Electric Hoist; etc.
(2) Could we buy spare parts in local once they are out of work?
Our main electrical parts brand is a generic brand; it's very easy to buy all the world. But if there is any difficulty, we can post to you by express, such as DHL, UPS, FEDEX, Aramex, etc.
(3) Do you have engineer oversea installation service?
Yes; we have;
