1 Ton 2 Ton 3 Ton Electric Trolley Type Electric Wire Rope Hoist With Trolley
The single beam bridge crane is a light and small lifting machine, which is used together with CD1 single speed electric hoist and MD1 double speed electric hoist.
It belongs to the intermediate working system, and its lifting capacity is 1t-20t. The standard span is 7.5-31.5m. The working level is single beam a3-a5,
The working environment temperature is -25 ℃ ~ 40 ℃, which can also be customized according to customer requirements.
- Fast Delievery
- Quality Assurance
- 24/7 Customer Service
Product Introduction

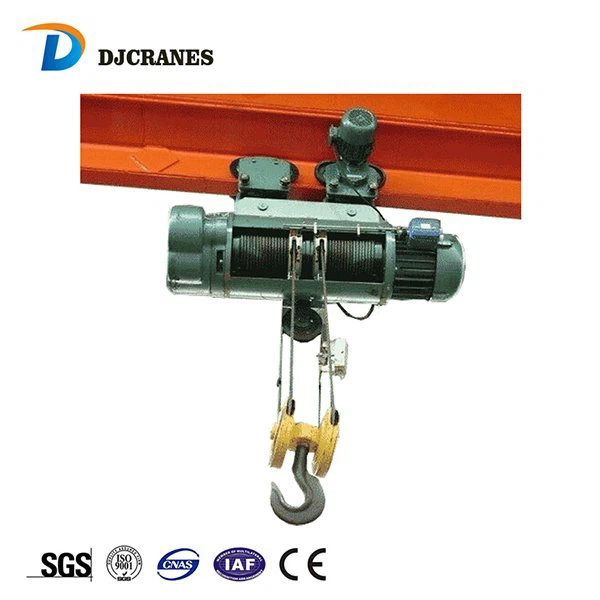

1 ton 2 ton 3 ton Electric Trolley Type Electric Wire Rope Hoist with trolley is a kind of small lifting equipment with the advantages of compact structure, light weight, small size, strong universality of parts and convenient operation. There are two kinds of single-speed and double-speed. Normal speed, which can meet the general use requirements;
MD1 electric hoist has two hoisting speeds—normal speed and slow speed. When working at slow speed, it can meet the requirements of precise loading and unloading, mold closing of sand box, and machine tool maintenance.
Therefore, the suitable range of the MD1 electric hoist is wider than that of the CD1 electric hoist.

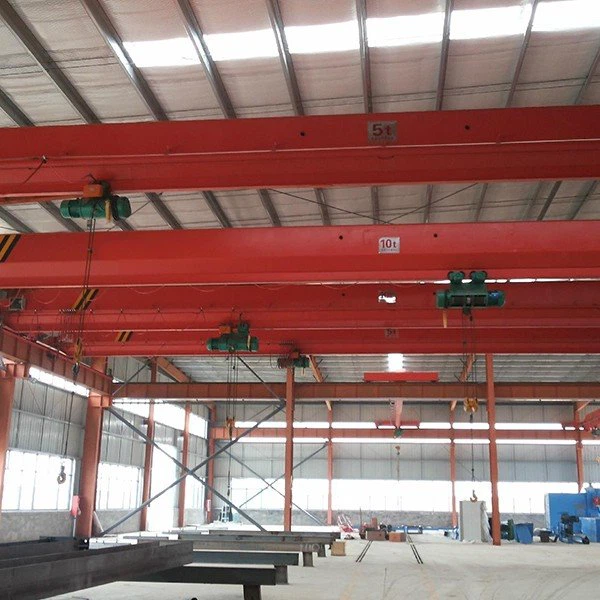

1 ton 2 ton 3 ton Electric Trolley Type Electric Wire Rope Hoist with trolley also belongs to special lifting equipment. It can be installed on I-beams alone or on electric or manual single-beam, double-beam, cantilever, gantry and other cranes.
Mainly used for machinery and equipment in infrastructure projects such as electric power, ships, automobile manufacturing, construction, highways, bridges, metallurgy, mines, slope tunnels, shaft management and protection.
2. Parameters:
1 ton 2 ton 3 ton Electric Trolley Type Electric Wire Rope Hoist with trolley There are single-speed and double-speed points, and their corresponding parameter tables are also different.
Single Speed 1 ton 2 ton 3 ton Electric Trolley Type Electric Wire Rope Hoist with trolley
Capacity | t | 0.25 | 3 | 10 | 16 | |||||||||||||||||
Working Class | M3-M5 | |||||||||||||||||||||
Hoisting speed | m/min | 8 | 8 | 7 | 3.5 | |||||||||||||||||
Travel speed | m/min | 20、30 | 20、30 | 20、30 | 18 | |||||||||||||||||
Lifting motor | Type | ZD1 12-4/0.4kw | ZD1 32-4/4.5kw | ZD1 51-4/13kw | ZD1 51-4/13kw | |||||||||||||||||
Operation motor | Type | ZDY1 10-4/0.06kw | ZDY1 12-4/0.4kw | ZDY1 21-4/0.8kw×2 | ZDY1 21-4/0.8kw×2 | |||||||||||||||||
Track | 10～22b | 20～32c | 32b～50b | 32b～63c | ||||||||||||||||||
Wire rope | Dia.(mm) | 3.6 | 13 | 15 | 15 | |||||||||||||||||
Specification | 6×19+FC | 6×37+FC | 6×37+FC | 6×37+FC | ||||||||||||||||||
Hoisting height | m | 6 | 9 | 12 | 6 | 9 | 12 | 18 | 24 | 30 | 6 | 9 | 12 | 18 | 24 | 30 | 6 | 9 | 12 | 18 | 24 | 30 |
Min curvature radius | m | 0.8 | 0.8 | 0.8 | 2.0 | 2.0 | 2.5 | 2.5 | 3 | 4 | 3.5 | 4 | 6 | 7.5 | 9 | 3.5 | 4 | 6 | 8.0 | 11 | ||
Weight（Operation type） | kg | 44 | 45 | 46 | 281 | 297 | 354 | 390 | 420 | 451 | 1048 | 1098 | 1209 | 1301 | 1411 | 1130 | 1183 | 1286 | 1463 | 1563 | ||
Weight（Stationary type） | kg | 30 | 31 | 32 | 222 | 236 | 250 | 284 | 312 | 340 | 795 | 841 | 943 | 1035 | 1127 | 850 | 903 | 1006 | 1183 | 1283 | ||
Double-speed 1 ton 2 ton 3 ton Electric Trolley Type Electric Wire Rope Hoist with trolley
Capacity | t | 0.5 | 3 | 10 | 16 | |||||||||||||||||
Working Class | M3-M5 | |||||||||||||||||||||
Hoisting speed | m/min | 0.8/8 | 0.8/8 | 0.7/7 | 0.35/3.5 | |||||||||||||||||
Travel speed | m/min | 20、30 | 20、30 | 20、30 | 18 | |||||||||||||||||
Lifting motor | Type | ZDS1 21-0.2/0.8kw | ZDS1 32-0.4/4.5kw | ZDS1 51-1.5/13kw | ZDS1 51-1.5/13kw | |||||||||||||||||
Operation motor | Type | ZDY1 11-4/0.2kw | ZDY1 12-4/0.4kw | ZDY1 21-4/0.8kw×2 | ZDY1 21-4/0.8kw×2 | |||||||||||||||||
Track | 16～28b | 20～32c | 32b～50b | 32b～63c | ||||||||||||||||||
Wire rope | Dia.(mm) | 4.8 | 13 | 15 | 15 | |||||||||||||||||
Specification | 6×37+FC | 6×37+FC | 6×37+FC | 6×37+FC | ||||||||||||||||||
Hoisting height | m | 6 | 9 | 12 | 6 | 9 | 12 | 18 | 24 | 30 | 6 | 9 | 12 | 18 | 24 | 30 | 6 | 9 | 12 | 18 | 24 | 30 |
Min curvature radius | m | 1.5 | 1.5 | 1.5 | 2.0 | 2.0 | 2.5 | 2.5 | 3 | 4 | 3.5 | 4 | 6 | 7.5 | 9 | 3.5 | 4 | 6 | 8.0 | 11 | ||
Weight（Operation type） | kg | 138 | 142 | 147 | 311 | 327 | 384 | 420 | 450 | 481 | 1104 | 1154 | 1265 | 1366 | 1467 | 1220 | 1273 | 1376 | 1553 | 1653 | ||
Weight（Stationary type） | kg | 106 | 111 | 116 | 252 | 266 | 280 | 314 | 342 | 370 | 851 | 897 | 999 | 1091 | 1183 | 949 | 997 | 1090 | 1273 | 1373 | ||
3. Component:

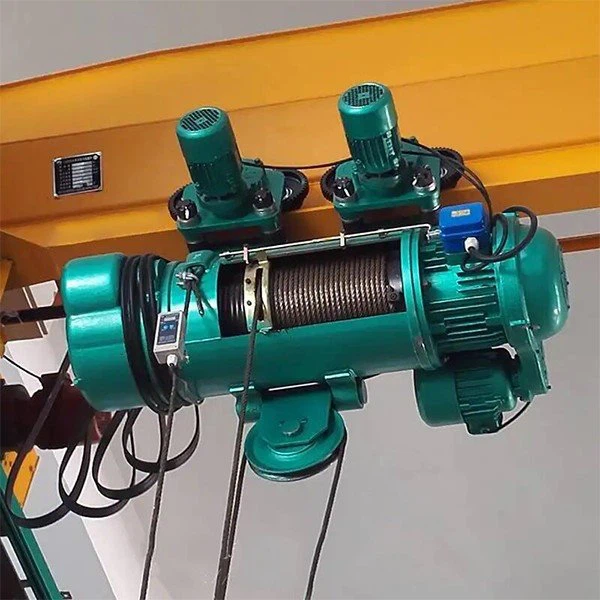

The components of 1 ton 2 ton 3 ton Electric Trolley Type Electric Wire Rope Hoist with trolley are: hoist sports car, motor, reducer, control box and wire rope.
Reducer: It adopts three-stage fixed-axis helical gear transmission mechanism. The gears and gear shafts are made of heat-treated alloy steel. The box body and box cover are made of high-quality cast iron, which are tightly assembled and well-sealed.
Control box: It is a device that can cut off the main circuit in an emergency, and has an upper and lower stroke protection section fire limiter.
Wire rope: It is a heavy-duty wire rope, which ensures durability. Conical motor: The hoisting motor adopts a large dynamic torque conical rotor to brake the asynchronous motor, and no external brake is required.
Button switch: Hand-operated, light and flexible, divided into two ways: corded control and cordless remote control.
4. Applicable Environment:
1 ton 2 ton 3 ton Electric Trolley Type Electric Wire Rope Hoists with trolley are mainly used for lifting, pulling, loading and unloading heavy objects, and welding oil tanks upside down, such as the installation and movement of various large and medium-sized concrete, steel structures and mechanical equipment;
It is suitable for construction and installation companies, factories and mines in civil engineering and bridge construction, electric power, shipbuilding, automobile manufacturing, construction, highways, bridges, metallurgy, mining, slope tunnels, shaft management and protection and other infrastructure engineering machinery and equipment.
1 ton 2 ton 3 ton Electric Trolley Type Electric Wire Rope Hoist with trolley also belongs to special lifting equipment. It can be installed on I-beams alone or on electric or manual single-beam, double-beam, cantilever, gantry and other cranes.
5. Transportation:
Lifting electric hoists are not just put on a random bag, but there are professional packaging requirements and transportation procedures, especially for sea transportation, the humid sea breeze will have a certain impact on electrical equipment, etc., in order to ensure the safety of the electric hoist Normal transportation Our company has strict requirements on the factory packaging of electric hoists.
When leaving the factory, each electric hoist is marked on the nameplate with the basic information of the hoist, product name, model, lifting capacity, lifting height and so on.
Generally, for the packaging of the electric hoist, we use wooden box packaging, the size of the packaging will be slightly larger than the size of the electric hoist, and the wooden box is firmly nailed to avoid damage to the product due to transportation problems.
6. How to operate?
As a small lifting equipment, electric hoist is generally recommended by our company to be equipped with handle and wireless remote control. Of course, if you have other special customization needs, please mark it and let us know, our company will customize it for you.
