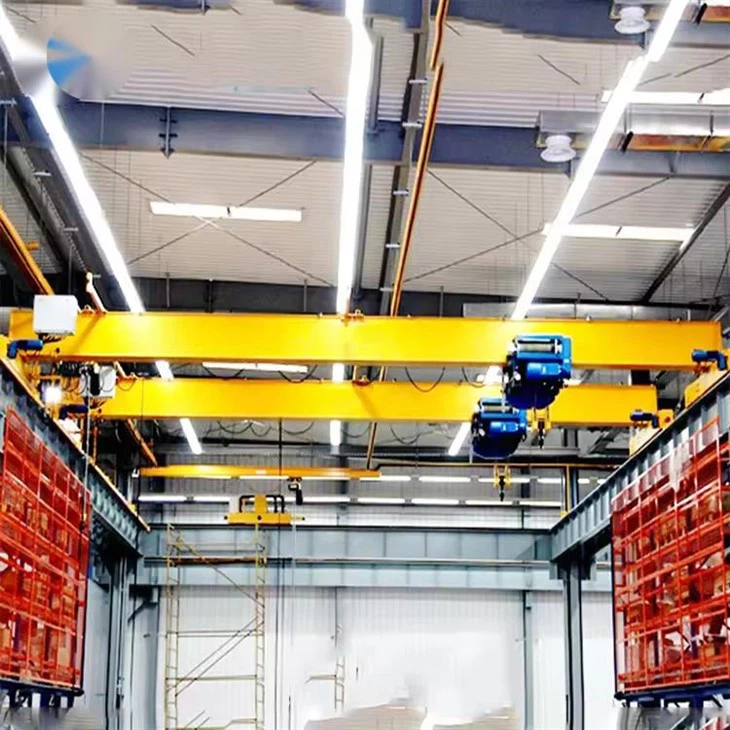

Single Girder Underslung Crane
The single girder overhead crane is a kind of crane with the bridge on the elevated track. The bridge frame runs longitudinally along the track laid on both sides of the elevated frame, and the crane trolley runs horizontally along the track laid on the bridge frame to form a rectangular working area, which can make full use of the space under the bridge frame to lift materials.
- Fast Delievery
- Quality Assurance
- 24/7 Customer Service
Product Introduction
Single girder underslung crane
The Single girder underslung crane is a kind of crane with the bridge on the elevated track. The bridge frame runs longitudinally along the track laid on both sides of the elevated frame, and the crane trolley runs horizontally along the track laid on the bridge frame to form a rectangular working area, which can make full use of the space under the bridge frame to lift materials.
This Single girder underslung crane is widely used in machinery manufacturing, petroleum, petrochemical, ports, railways, civil aviation, electric power, food, paper, building materials, electronics and other industries on-site construction operations, and material handling operations in workshops and warehouses, and are especially suitable for industrial construction operations and equipment hoisting in large factories.
Single girder underslung crane:
Single girder underslung crane is widely used in workshops, factories, warehouses, stockyards, industrial and mining enterprises, iron and steel chemical industry, railway transportation, port terminals and other occasions to lift goods, and is used by many modern enterprises. So what is the current market quotation for the ld-type electric single-girder bridge crane?
According to a large number of market surveys, we know that the price of Single girder underslung crane in the market generally ranges from several thousand to tens of thousands. It is affected by product design, material, function, model and other factors, and there is no specific price. If you want to know more about the price information of bridge crane, Henan Dejun Lifting recommends that you communicate and consult with us.
|
Lifting Weight(t) |
1 |
2 |
3 |
5 |
10 |
16 |
Customized |
|||||||||||||||||||||
|
Span(m) |
7.5 |
10 |
15 |
18 |
8 |
13 |
18 |
27 |
7.5 |
12 |
18 |
23 |
8 |
12 |
15 |
18 |
8 |
12 |
15 |
20 |
12 |
19 |
25 |
28 |
Customized |
|||
|
Working Speed |
Ground 20 |
Ground 20 |
Ground20
|
Ground 20 |
Customized |
|||||||||||||||||||||||
|
Hoisting Height(m) |
Customized |
|||||||||||||||||||||||||||
|
Working Class |
A4 or Customized |
|||||||||||||||||||||||||||
|
Electric Current |
Customized |
|||||||||||||||||||||||||||
Application range
It is widely used in the transfer, assembly, inspection and loading and unloading of industrial and mining enterprises, warehouses, machining workshops, auxiliary workshops of metallurgical plants, stock yards, power stations, etc. Production workshops and other places where the frequency of use is low or the number of times the rated lifting capacity is lifted is small.
It is forbidden to use in the environment of flammable, explosive and corrosive media.
Product Description
1. Designed and manufactured according to the standard JB/T1306-2008, it has the characteristics of reasonable structure and strong rigidity of the whole machine.
2. The whole machine is used together with CD1, MD1, HC and other types of electric hoists.
It has two independently operated electric hoists, which can independently complete the lifting of workpieces, and can cooperate with each other to complete the turning of large workpieces. At the same time, each control handle can independently control the shared cart running mechanism.
3. The lifting capacity is 1+1--16+16 tons, the applicable span is 5-35 meters, the working level: A3, A4, and the working environment is within the range of -25°C~+40°C.
4. The overall transmission adopts a soft drive motor and a reducer to ensure its low noise and stable moving performance.
5. According to the needs of the customer's on-site working conditions, it can be equipped with frequency conversion for the cart, frequency conversion for hoisting or double-speed hoist operation, so that the operation of the crane (crane) is stable and reliable.
Advantages and disadvantages of Single girder underslung crane
Advantages: short order cycle, economical and affordable.
Disadvantages: low work level, not suitable for heavy workshops.
Optional items
Working power supply: 380V/400V/415V/660V 50HZ/60HZ.
Manipulation mode: The product has three manipulation modes: ground manipulation, remote control and operating room manipulation, to meet the needs of users in various situations.
