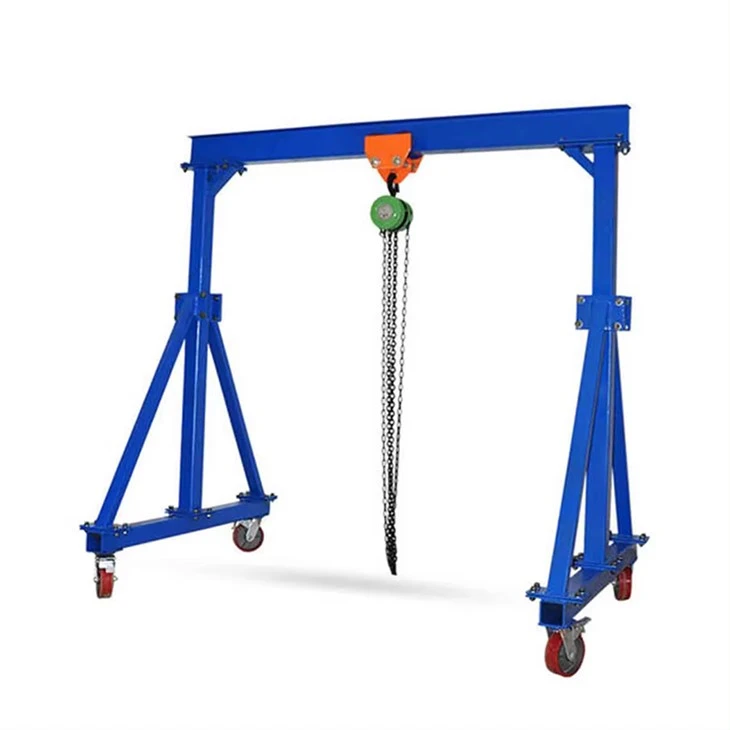

Portable Mini Gantry Crane



Portable mini gantry crane mostly use in small factories daily production which needs handling equipment,warehouse on the ship,lifting and maintenance for the transport of heavy equipment and materials.It is good design and development of small lifting equipment.



At the same time, its width and height can be adjusted in sections, and the steel structure design is reasonable. Can bear the weight of 1t to 10t.

2. Crane parameters:

Span	m	Customized
Lifting Weight	t	Customized
Lifting Height	m	Customized
Lifting Speed	m/min	8
Trolley Speed	m/min	Customized
Crane Speed	m/min	20(Ground Control);30,45(Cab Control)



3. Component:

Portable mini gantry crane are all composed of I-beam main beams and side support tripods.



When using a gantry crane, it needs to be operated together with an electric wire rope hoist. Electric hoists are generally fixed at a certain point to lift the goods, However, if a running sports car is added, not only can the gantry crane move left and right with heavy objects, but the electric hoist can also move along the I-beam of the gantry crane.



The combination of electric wire rope hoist and mobile gantry crane, using electric hoist sports car with mobile gantry crane can achieve the function of lifting heavy objects and moving left and right.



It is an indispensable combined lifting equipment in many engineering constructions.

4. Feature of Portable mini gantry crane:

Crane traveling limit switch



Weight overload protection device



Lifting height limit device



Voltage lower protection function



Phase sequence protection function



Emergency stop function



Rain cover for outside hoist, driving units, electrical cubicle.



Warning indicator: flashing lights and warning sound.



Wireless infra-detector for anti-collusion



5. Frequently Asked Questions:

What's your package?

Main body in plywood box or in plastic woven cloths;

Spare parts in plywood boxes;



Common problems can be sorted out by clicking "Frequently Asked Questions".

If you can't find the answer you want, please contact us and we will give you a satisfactory answer!
