Kone Rtg Crane

Kone rtg crane

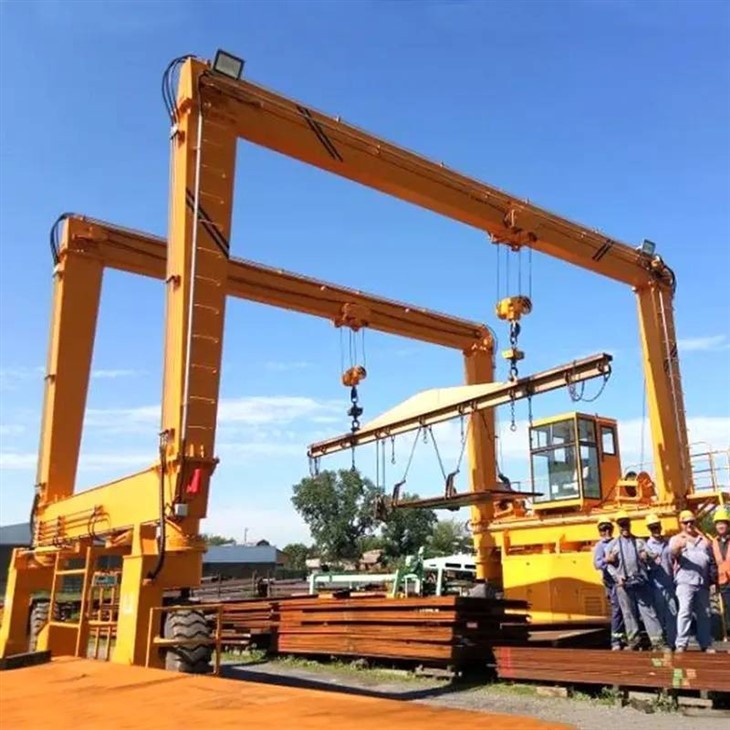

Kone rtg crane are lifting cranes mounted on tyres often used to replace rail mounted gantry cranes for lifting and handling heavy loads in casting yards, factories, storage areas, ports and marinas.



It is strictly prohibited to use for lifting high temperature molten liquid, inflammable, explosive, corrosive, overloaded, dust and other dangerous operations.



It has high site utilization, large operating range, wide adaptability and strong versatility, it is widely used in the port cargo yard. According to different working conditions, the working level can reach A5-A8.



2. Parameters:

When purchasing a Kone rtg cranes, please provide the following data so that we can confirm your needs faster!



① Lifting weight;



② Span (track center to guide rail center);



③ Lifting height (hook center grounded);



④ Whether external overhang is required (please provide the overhang length);



⑤ Are guide rails and cables required? (please provide run length);



⑥ Other special requirements. If you have more detailed information, please let us know and we will give you a more accurate price!

3. Component:

The main components of the Kone rtg cranes are the main beam structure, outriggers, walking beams, walking structures, electrical appliances, ladder cabs and other components.



The main structure is mainly plate welded box type structure. Its main beam and outriggers can be divided into several sections, the nodes are mainly connected by gusset plates and refined high-strength bolts.



Cart traveling mechanism: composed of four driving wheel boxes.



Outrigger section: The outrigger section consists of rigid legs (or paired with flexible legs). Each contact is connected by high-strength bolts, which is easy to install, fast and firmly connected.



Operating room and electrical control: The operating room is composed of the operating room body and the electric control box.



Main beam assembly: The main beam assembly is composed of the main longitudinal beam and the connection frame.



Ladder assembly: On one side of the main longitudinal beam, there is a walking platform for maintenance personnel.



Hoisting trolley: The hoisting trolley consists of a frame, a trolley traveling mechanism, a winch and a pulley block.



4. Applicable Environment:



Kone rtg cranes is widely used in factories, docks, cargo yards and other places for heavy cargo transportation and loading and unloading operations. It can adapt to various complex operating environments, such as high temperature, humidity, open air, etc. Specific application scenarios include:

Factory production line: Kone rtg cranes can be used for material handling, loading, unloading and stacking on the factory production line.

Terminals and cargo yards: The Double Girder Electric rtg cranes can be used for cargo loading, unloading, stacking and transshipment at docks and cargo yards, which can improve loading and unloading efficiency and reduce labor costs.

Steel, aviation, shipbuilding and other industries: Kone rtg cranes can be used for material handling, loading, unloading and maintenance in steel, aviation, shipbuilding and other industries.

5. Advanced Manufacturing Technology of Kone rtg crane:



Steel shot blasting pretreatment, the surface quality reaches Sa 2.5 grade.



Crane wheel and wheel shaft through the high frequency quenching and tempering treatment, it eliminates the internal stress and ensures the machining accuracy. the use of welding robot, the main girder inseam weld by advanced MAG welding. The main girder welding adopts radiographic testing and ultrasonic testing to ensure the welding quality.



6. Transportation:

Our company can find a safe and cost-effective logistics and transportation company for you, and of course you can also use the logistics and transportation company you specify.



No matter which of the above methods is used, it is all to deliver the goods to you in the safest and most cost-effective way. Designated place.



For more specific logistics and transportation methods, please click "here" to learn more.

7. High Reliability:



The motor and ruducer are imported from domestic famous brands with industry reconnition, quality assurance. It has reliable quality.



The main electrical components is from the selection of Schneider, Siemens, ABB and other international well-known brands, the protection degree electronic control box is less than IP54.



8. Safety features of Kone rtg crane:



1. Automatic rectify deviation control



2. Weight overload protection device



3. Top quality polyurethane buffer



4. Phase protection



5. Lifting limit switch,cross traveling limit switch,long traveling limit switch



6. Voltage lower protection function



7. Emergency stop system



8. Current overload protection system



9. Lighting system



10. Audio and video alarm system
