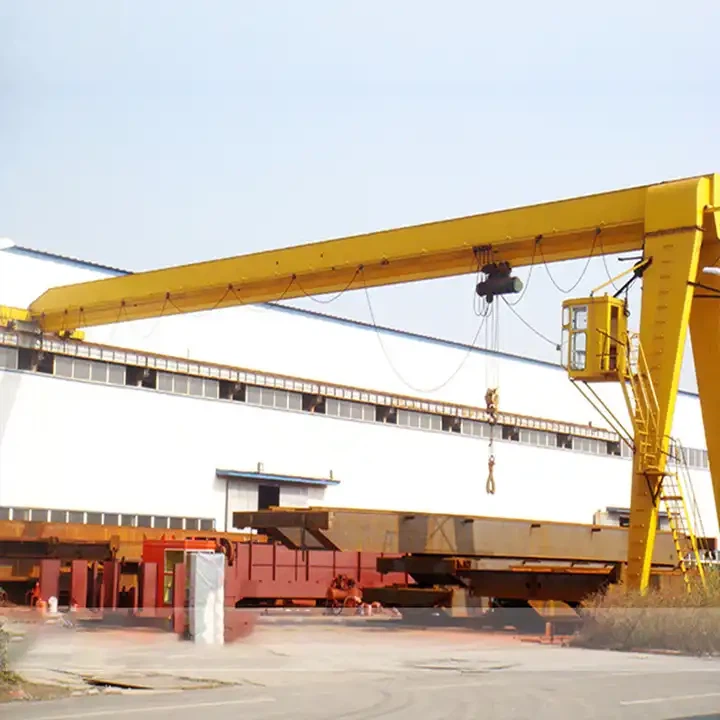

Gantry Girder
Half gantry girder is developed on the basis of gantry crane. It is a track traveling small and medium-sized crane. Gernerally, it is always used together with CD MD model electric hoist. It has one leg special design, so it needs to use one side of warehouse to fininsh its work. At the same time, one leg special design can also save the cost.
- Fast Delievery
- Quality Assurance
- 24/7 Customer Service
Product Introduction
Half gantry girder is developed on the basis of gantry crane. It is a track traveling small and medium-sized crane. Gernerally, it is always used together with CD MD model electric hoist. It has one leg special design, so it needs to use one side of warehouse to fininsh its work. At the same time, one leg special design can also save the cost.
2. Parameters:
|
Lifting capacity(t) |
50/10 |
75/10 |
100/10 |
||
|
Span(m) customized |
38 |
38 |
28 |
||
|
Lifting height(m) |
Main |
16 |
16 |
10 |
|
|
Aux |
18 |
18 |
12 |
||
|
Speed(m/min) |
Lift |
Main |
1 |
||
|
Aux |
7 |
||||
|
handcart travel |
5 |
||||
|
cart travel |
10 |
||||
|
Working class |
A3-A6 |
||||
|
Electric current |
Three-phase AC 380V 50Hz |
||||
3. Features of Half gantry girder:
1. it should proper matching use CD1 and MD1 type electric hoist.
2.Its proper lifting weight is 1~16t, proper span is 5~35m.
3. it is usually used in machine shop to carry materials. The Half gantry girder has two operation modes including control on ground and remote control.
4.Compact dimensions, low weight, easy to operate and easy to maintain, steady performance, safety, less wastage, low cost and so on.
4. Applicable Environment:
This Half gantry girder is mainly used in steel stock yard, mine, the concrete industry, warehouse, factory, harbor and ship building, etc.
5. Wearing Parts:
6. Transportation:
7. How to operate?
8. Design& specifications of Half gantry girder
Half gantry girder is a kind of light type crane, commonly used in modern production. In workshops where part utilization of shop bay is required (as in a tool room attached to a press shop), a Half gantry girder is used. In such a configuration, one end-carriage of the crane will travel on the regular gantry rail while the opposite end-carriage will travel on a rail mounted typically on the ground or at a lower elevation. Compared with the electric single-girder gantry crane, it can save the investment and space.
Application: This Half gantry girder is mainly used in steel stock yard, mine, the concrete industry, warehouse, factory, harbor and ship building, etc.
