Low Headroom Overhead Crane

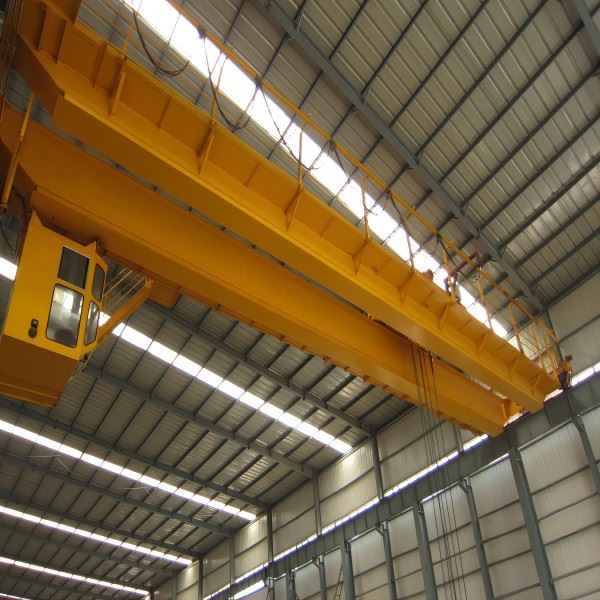

European type Double girder low headroom overhead crane



1.Advantage of European type Double girder low headroom overhead crane

a.Light weight
The design software developed by the company, combined with three-dimensional modeling and finite element analysis, from the lifting mechanism, steel structure to the accessories are adopted the most reasonable structure, in addition to a wide range of high-strength materials, improve the carrying capacity, reduce its own weight, lighter than the traditional crane weight, wheel pressure is small.
The maximum distance between the small hook and both sides is small, the working range is large, the height above the track plane is small, and the plant space is effectively used.



b.Low operation and maintenance cost
Due to the small wheel pressure and small size, European type Double girder low headroom overhead crane can reduce the investment in the preliminary project such as the workshop, and at the same time, lighting, heating and other facilities can also save some costs. And the product performance is durable, so that the additional cost required for the later product in the use process is reduced to the lowest. The selected high-quality and high-performance parts greatly reduce the workload of maintenance and repair, reduce the total installed power, and save the use cost.

c.High performance
Using frequency conversion technology, heavy load slow speed, light load fast, speed range 1:10, the European type Double girder low headroom overhead crane runs smoothly, reduce the impact on the plant. Combined with anti-swing technology, it can realize high-precision positioning of lifting items.



d.Performance parameter
The large and small car operating mechanism adopts the three-in-one drive form of European technology, hard gear reducer, compact structure, low noise, no oil leakage, long service life.
Due to the use of new compact car and high-strength materials, the overall size of the machine is small, light weight, compared with the traditional crane, under the same lifting height conditions, the plant height can be reduced, effectively reduce the plant cost.
Modular design, short actual cycle, high degree of universality, improve the utilization of parts.



The European type Double girder low headroom overhead crane is a big trend, more and more will be used, welcome to buy.



2. Parameters:



European type Double girder low headroom overhead crane is mainly composed of bridge frame, trolley operating mechanism, trolley, electrical equipment, etc. According to the frequency of use, it is divided into three working levels: A5, A6 and A7. All movements and controls of the hook overhead crane are completed within the driver's seat. Main parameters of double girder bridge crane:



Lifting capacity: 5 to 10 tons, 16/3.2 to 50/10 tons, 75/20 to 100/20 tons, 100/32 tons, 125/30 to 250/50 tons, 300/40 tons, 350/75 tons , 400/80 tons, 600/150 tons



Span: 10.5~31.5 meters, 13~31 meters.



Lifting height: 6~22 meters.



3. Component:


Bridge cranes are mainly composed of mechanical, electrical and metal structures.



1. The mechanical part consists of the main lifting mechanism, auxiliary lifting mechanism (only applicable to more than 15t), trolley running mechanism and trolley running mechanism. Including: motor, coupling, transmission shaft, brake, reducer, drum, etc.



2. The metal structure is mainly composed of the bridge frame (main beam, end beam, railing, platform and trolley track), cab and trolley frame.



3. The electrical part consists of electrical equipment and circuits, including the power unit of the bridge crane and the start, speed regulation, reversing, braking and stop control systems of each mechanism.



4. Applicable Environment:



1. Construction industry: Double-girder cranes are widely used on construction sites to transport construction materials, equipment and goods to improve work efficiency and safety.



2. Port and ship industry: Low Headroom Overhead Crane is widely used in port terminals and ships for loading and unloading cargo, ship maintenance, ship construction and other operations.



3. Steel and metallurgical industry: Low Headroom Overhead Crane is widely used in the steel and metallurgical industry to transport heavy objects such as smelting charge, slag and steel.



4. Mining and Mining Industry: Double-girder cranes are widely used in mines and mining sites to transport ore, ore and equipment to improve production efficiency and safety.



5. Manufacturing and Industry: Low Headroom Overhead Crane is widely used in various manufacturing and industrial fields to transport production equipment, semi-finished products and finished products to improve production efficiency and quality.



Low Headroom Overhead Crane is a common heavy lifting equipment with many special features and advantages, so it is widely used in many industries. The following will introduce the characteristics and advantages of double-girder cranes and the industries in which they are widely used.

Low Headroom Overhead Crane Features and Benefits:



1. Strong load-carrying capacity: The Low Headroom Overhead Crane has a large load-carrying capacity and can carry large equipment and heavy objects. It is suitable for occasions where a large number of heavy objects need to be transported.



2. Stable structure: The Low Headroom Overhead Crane adopts a double-beam structure design, which has high stability and load-bearing capacity, and can ensure the stability and safety of the lifting process.



3. Easy to operate: The double-girder crane adopts an electric or manual control system, which is easy and convenient to operate and can complete the lifting task quickly and accurately.



4. Wide scope of application: Low Headroom Overhead Crane is suitable for a variety of different working environments and work needs, and can be customized according to actual conditions to meet the needs of different industries.



5. Energy saving and environmental protection: Double girder crane has a high energy efficiency ratio and energy saving performance, which can effectively reduce energy consumption and environmental pollution.



In general, the Low Headroom Overhead Crane has the advantages of strong load capacity, stable structure, easy operation, wide range of applications, energy saving and environmental protection, and is widely used in construction, ports, steel, mining, manufacturing and other industries. It is widely used and provides important support and guarantee for the production and operation of various industries.
