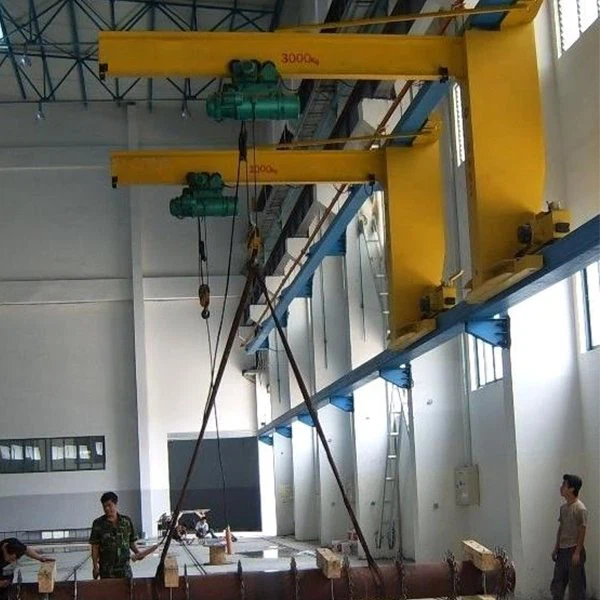

Cantilever Wall Travelling Jib Crane with Electric Wire Rope Hoist

The Cantilever Wall Travelling Jib Crane with Electric Wire Rope Hoist greatly expands the working range, makes more effective use of the workshop space, and has a more ideal use effect. The working level can reach A3-A4.

The wall-type cantilever crane is a new type of material lifting equipment developed and improved on the basis of the wall-type cantilever crane. The machine's walking track is installed on the cement wall of the factory building. It can move longitudinally along the parallel track. At the same time, the electric hoist can complete lateral movement along the county arm and lifting in the vertical direction. The jib crane greatly expands the scope of operations, utilizes the factory space more effectively, and achieves better results.

2. Parameters:

3. Component:

The Cantilever Wall Travelling Jib Crane with Electric Wire Rope Hoist utilizes the columns of the original workshop, Install walking rails and rails, and does not occupy the original factory space.

At the same time, the triangular bracket is fixed on the concrete wall or column by using the bolt angle iron connection, the arm is hinged with the bracket.

The jib is installed with an electric wire rope hoist to lift heavy objects, the electric wire rope hoist runs in a straight line on the jib I-beam and lifts heavy objects.

The hanging heavy object or self-provided pull ring is pushed by manpower to realize the rotation.

4. Applicable Environment:

Cantilever Wall Travelling Jib Cranes With Electric Wire Rope Hoist are mostly used in conjunction with the girder or bridge cranes above, serving a cuboid space near the wall, responsible for lifting light and small objects, and large ones are undertaken by girder or bridge cranes.

The wall-type jib crane is used in workshops or warehouses with large spans and large building heights. It is suitable when lifting operations near the wall are frequent. It can be widely used in workshop production lines, assembly lines and machine tools for loading and unloading, as well as for lifting heavy objects in warehouses, docks and other places. Wall-type cantilever cranes are mostly used in conjunction with beam or bridge cranes above. They serve a rectangular space near the wall and are responsible for lifting light and small objects. Large objects are borne by beam or bridge cranes.

Transporting jib cranes is no different than any other type of crane.

5. Wearing Parts：

Lifting Motor

6. Wall-Trevelling jib cranes and Wall-mounted jib cranes

Both are the same:

the support points are on the wall;

The difference between the two:

(1) The wall-type cantilever crane runs on 3 rails, is installed on the column support of the factory building, and can move longitudinally along the rails.

(2) The wall-mounted cantilever crane uses bolted angle iron connectors to fix the triangular bracket on the concrete wall or column, and the jib and bracket are hinged. The structure is simple and the working space is large.

7. Transportation:

Mainly according to customer needs

8. Purchase Notes

① When making an inquiry, please provide parameters such as lifting weight, space height, and lifting height, and describe the working environment.

② Please confirm whether the track and accessories need to be provided together.

③ Whether it is necessary to specify the accessories manufacturer.

④ Whether installation and acceptance services are required.

⑤ Whether packaging is required or not, there are no special requirements. The crane is naked.

⑥ Are there any requirements on delivery time? If there are special circumstances, we can expedite production for customers.
