Liftmoore L21

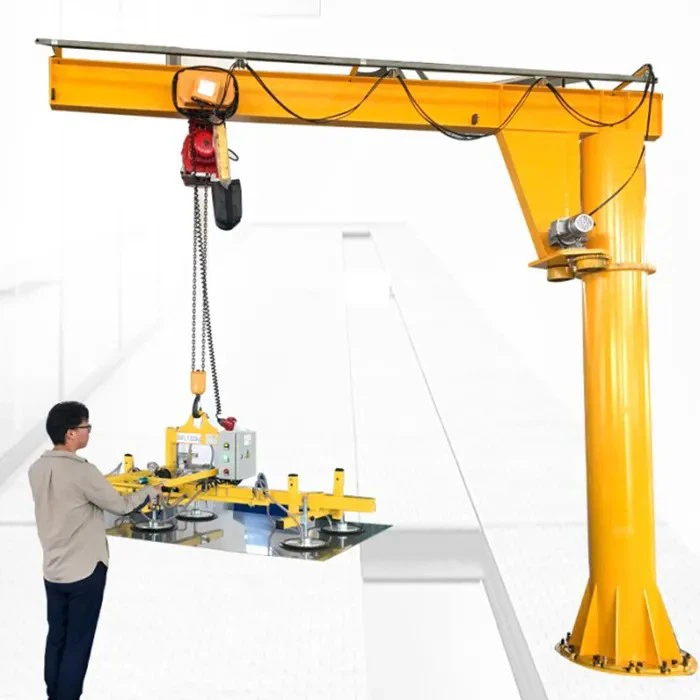

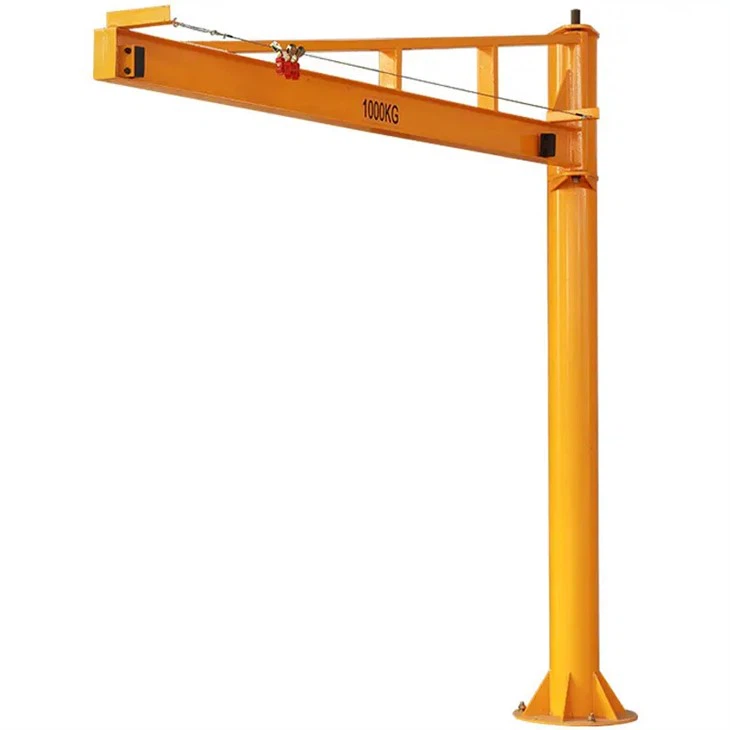

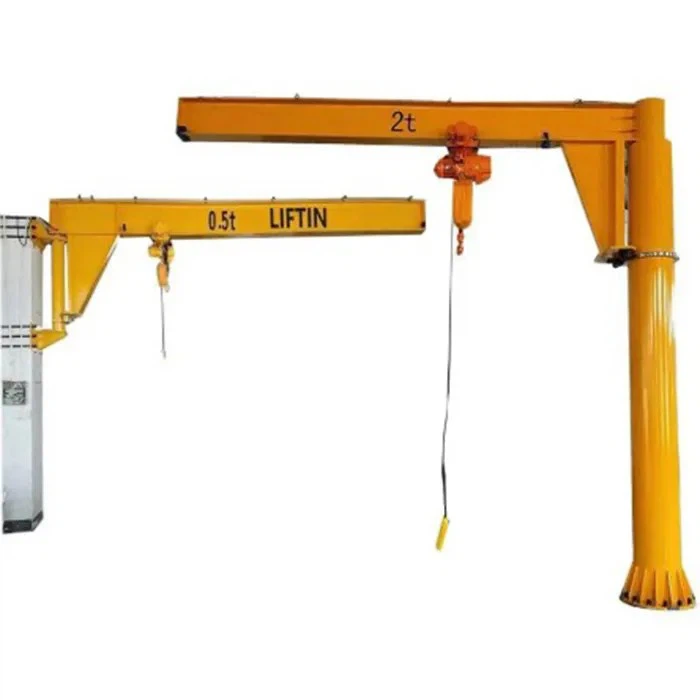

Liftmoore l21 jib crane



Column is made of seamless steel pipe, and the main girder is made of 1-beam girder or KBK light beam, rotating way can be manual(< 1t) or electric. JIB crane can be equiped electric wire rope hoist, electric chain hoist or manual hoist. Liftmoore l21 jib crane is suitable to work in the short-range and intensive lifting occasions. So it's widely used in workshops, warehouses, docks and other fixed place.



We can recommend different models of cranes according to different working requirements. This Liftmoore l21 jib crane has two types of manipulation: electric and manual operation. Rotary arm rotation angle can be chosen from 180 °, 270 °, 345 °, 360 ° according to client's usage.



2. Parameters:

0.5t 1.0t 2t 3t 5t
Lifting height	h(m)	5	5.5	6
Effective radius	R(m)	4	4.5	5
Travelling speed	m/min	20	20	20
Rotation angel	r/min	0.7	0.7	0.7
Overall length	L(m)	4.59	5.09	5.59





3. Component:

Liftmoore l21 jib crane consists of column equipment, reversing equipment, jib equipment and electric chain hoist, etc., mainly including upper column, lower column, main beam, main beam tie rod, lifting mechanism (chain electric hoist), reverse tissue, electrical systems, ladders and repair channels.

The lower end of the column is fixed on the concrete foundation, and the rotating arm is reversed, which can be reversed according to user needs.

The electric chain hoist is installed on the jib track and has the function of lifting and reciprocating on the beam.



4. Applicable Environment:

Liftmoore l21 jib crane has a small footprint and is easy to operate. It is not only suitable for the production and maintenance of mechanical product manufacturing, railways, chemicals, and light and small industries; it can also be used for production lines, assembly lines and machine tools in factories, mines and workshops.

It can be used for lifting and transporting heavy objects in warehouses, docks and other occasions; at the same time, it can be directly installed on the pier seat of the dock or warehouse.





5. How to operate?



6. Transportation:



7. Main Features of Liftmoore l21 jib crane:



1. Column using seamless pipe,main beam use I-beam or KBK beam.



2. Rotation can be manual or motorized.



3. Hoist can be equipped with electric wire rope hoists, electric chain hoists or manual hoists.



4. Unique structure, safe and reliable, high efficiency and flexible.



5. Can be customized according to client's requirements.



6. Easy installation.
