15 Ton Electric Partial Hanging Single Beam Overhead Crane

1. Product Introduction:

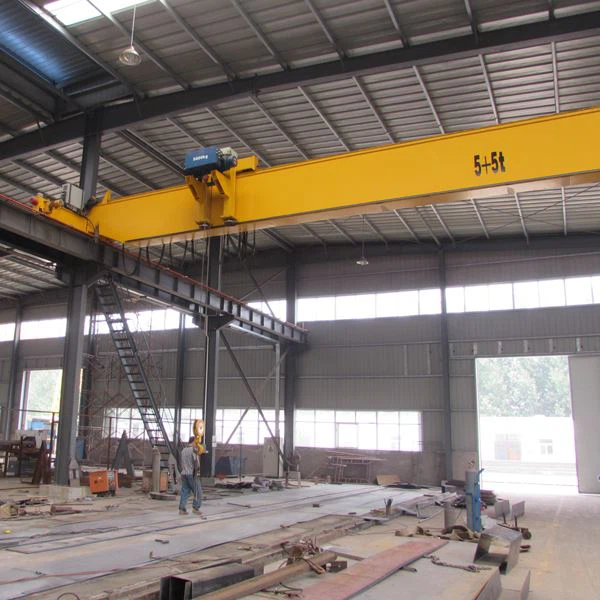

The electric single-beam bridge crane is a light small crane with ultra-low headroom. The electric hoist is located on one side of the main beam. Compared with the ordinary single-beam bridge crane, the use space of the hook is increased, and the plant height and cost are reduced.

Rated load 3t ~ 20t, span 7.5m ~ 27m, widely used in the working environment temperature -20℃ ~ +40℃, workshop clearance is low places. Working class A3, A4.

2. Parameters:

3. Component:

Electric Partial Hanging Single Beam Overhead Crane consists of metal structure, electric hoist, running mechanism, electrical equipment, etc.

Metal structure part: The main girder usually adopts a box-girder structure, using a welded box-shaped main girder, and the trolley track is arranged on the top and side of the web of the main girder.

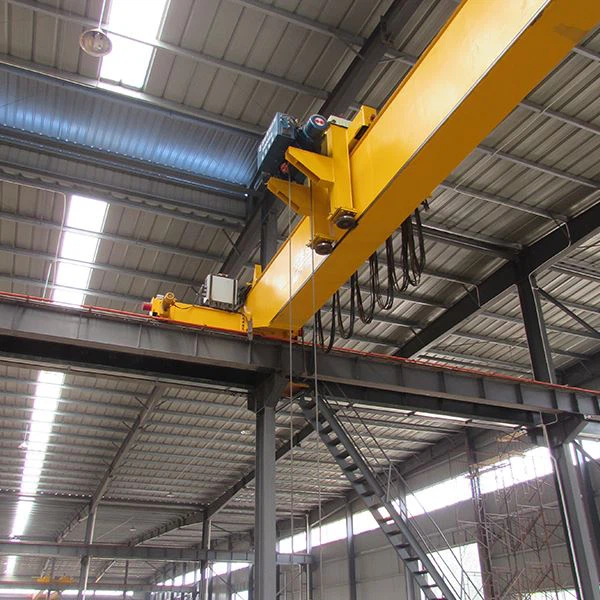

Electric hoist: The electric hoist is attached to one side of the main girder and moves longitudinally along the main girder, which increases the service space of the hook and reduces the height and cost of the workshop. For its structural characteristics, please refer to the manual of the electric wire rope hoist.

Operating mechanism: This product adopts the form of separate driving, It is completed by the cone brake asynchronous motor, and the reduction device adopts the "one opening and one closing" gear reduction transmission.

Electrical equipment: The supporting motor is a conical brake asynchronous motor. The electric hoist and the whole machine are equipped with safety devices, such as: lifting limit switch, limit switch at the end of the cart, etc.

4. Applicable Environment:

The Electric Partial Hanging Single Beam Overhead Crane is a deformation of the Single Girder Overhead Crane, which is mainly used in the occasions where the headroom of the workshop is relatively low. Widely used in workshops, factories, warehouses, stockyards, industrial and mining enterprises, iron and steel chemicals, railway transportation, ports and other occasions to lift goods. It is forbidden to use in flammable, explosive and corrosive media environment.

Workshop assembly: used for parts assembly and disassembly operations in workshops such as automobile manufacturing, machining, and electronic assembly.

Steel structure installation: used for steel structure manufacturing and installation, providing lifting, transportation and installation services, such as the installation of steel structures such as bridges and factories.

Warehouse logistics: used for loading, unloading, handling and stacking operations of warehouse goods to improve logistics efficiency.

Construction: Used for material transportation and hoisting operations on construction sites, such as the hoisting of concrete beams, steel bars, etc.

5. Maintenance:

Maintenance of LDP offset single-girder crane In order to ensure the normal operation and extend the service life of the LDP offset single-girder crane, regular maintenance work is required, including:

Regularly check all parts of the crane for damage or wear. If found, repair or replace them in time.

Regularly lubricate key parts such as bearings and transmission devices of the crane to ensure normal operation.

Check whether the crane operation control panel is functioning normally. If there is any fault, it should be repaired or replaced in time.

Check the working status of the safety protection device to ensure its reliability and sensitivity.

Regularly check the electrical system of the crane. If short circuits, leakage, etc. are found, they should be dealt with promptly.

6. How to operate

The Electric Partial Hanging Single Beam Overhead Crane has two types of operation on the ground and in the air.


There are two types of ground operation: wired handle operation and wireless remote control operation;

7. Benefits

① Improved Efficiency

The 15 Ton Electric Partial Hanging Single Beam Overhead Crane provides businesses with an efficient way to move heavy loads, which results in expedited production schedules and increased output.

② Savings in Labor Costs

The crane eliminates the need for manual labor, which results in significant savings in labor costs. It can handle heavy loads without requiring human intervention, enabling the operators to focus on other tasks.

③ Increased Safety

The safety features of the crane ensure that there are no accidents or injuries in the workplace. By ensuring the safety of the equipment and personnel, businesses can save on expenses related to worker compensation and legal liabilities.

④ Low Cost of Ownership

The low cost of ownership makes this crane an attractive option for businesses looking for a cost-effective way to improve their lifting capacity. The minimal maintenance required results in reduced expenses associated with maintenance and repair.

8. Why choose us?

Punctual delivery time


Perfect quality-control system


Advanced test measures


Independently conduct over 20 technological flows

The crane offers businesses an opportunity to improve their lifting capacity, increase efficiency, reduce labor costs, and enhance safety in the workplace. For businesses looking for a cost-effective solution to their lifting needs, the 15 Ton Electric Partial Hanging Single Beam Overhead Crane is an excellent option.
